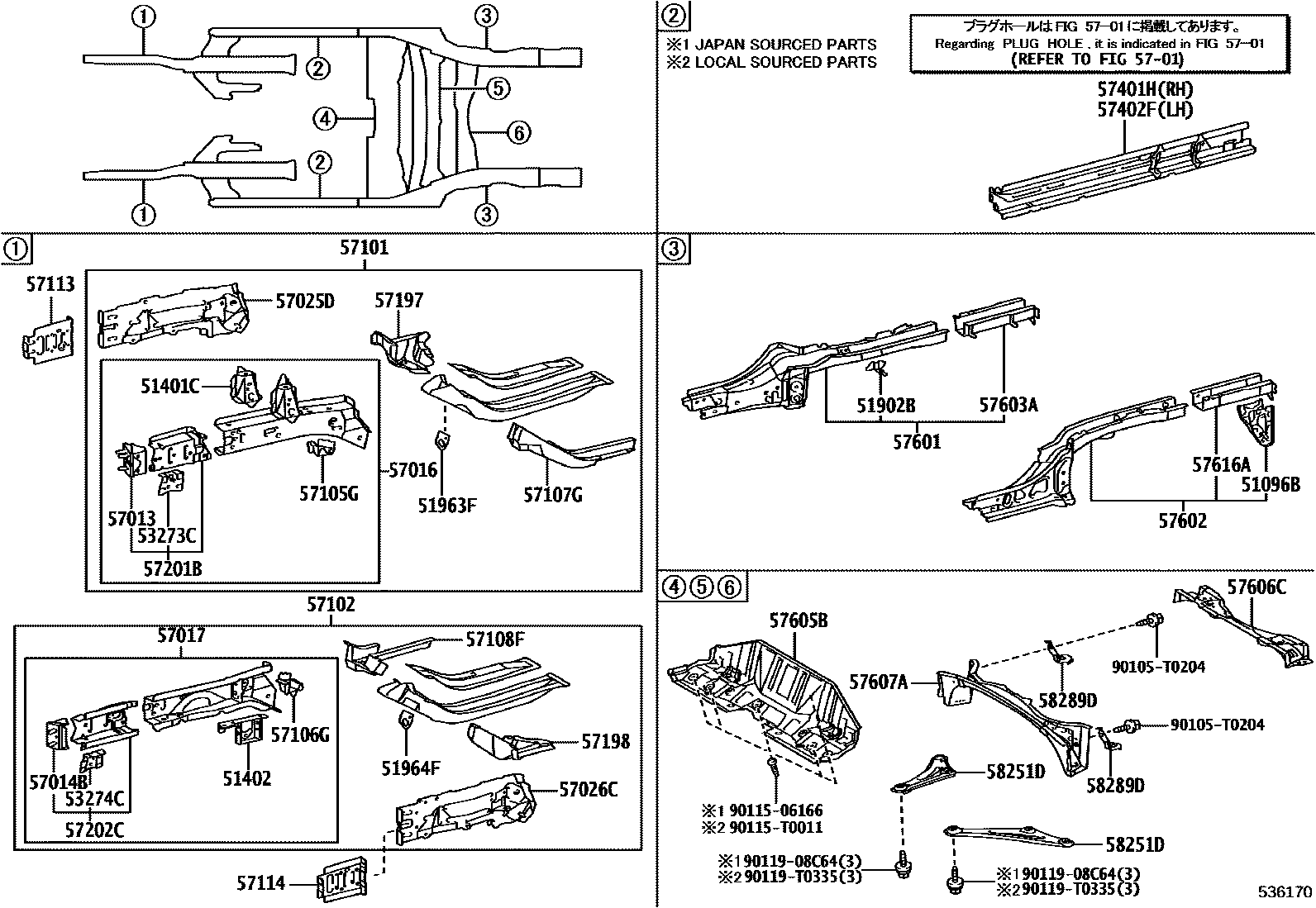

Toyota YARIS — FLOOR SIDE MEMBER

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0D080iNSP151201908

51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0D050iNSP151201908

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0D040iNSP151201908

51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2

main51902-0D060iNSP151201908

51963FHOOK, TRANSPORT

main51963-0D180iNSP151201908

51964FHOOK, TRANSPORT, LH

main51963-0D180iNSP151201908

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-0D140iNSP151201908

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0D090iNSP151201908

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D100iNSP151201908

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D091iNSP151201908

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D170iNSP151201908

sub57016-0D110

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D270iNSP151201908

sub57017-0D180

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D130iNSP151201908

sub57025-0D030

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D130iNSP151201908

sub57026-0D030

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0D250iNSP151201908

sub57101-0D140

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0D320iNSP151201908

sub57102-0D200

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-0D070iNSP151201908

57106GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT LH

main57106-0D050iNSP151201908

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-0D110iNSP151201908

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-0D090iNSP151201908

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0D120iNSP151201908

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0D120iNSP151201908

57197BOX, TORQUE, FRONT RH

main57197-0D070iNSP151201908

57198BOX, TORQUE, FRONT LH

main57198-0D070iNSP151201908

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-0D060iNSP151201908

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-0D071iNSP151201908

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0D190iNSP151201908

sub57401-0D240

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0D350iNSP151201908

sub57402-0D220

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D220iNSP151201908

sub57601-0D250

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D360iNSP151201908

sub57602-0D200

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0D200iNSP151201908

sub57603-0D100

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D230iNSP151201908

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D130iNSP151201908

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0D080iNSP151201908

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0D160iNSP151201908

58251DBRACE, FLOOR PANEL, FRONT

main58251-0D060iNSP151201908

RH

main58252-0D130iNSP151201908

LH

58289DBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0D090iNSP151201908

RH

main58299-0D090iNSP151201908

LH

90105T0204

main90105-T0204¥80

9011506166

main90115-06166¥90

90115T0011

main90115-T0011

9011908C64

main90119-08C64¥90

90119T0335

main90119-T0335

43 parts on this diagram · 1 diagram in section
