Toyota YARIS — ENGINE OIL PUMP

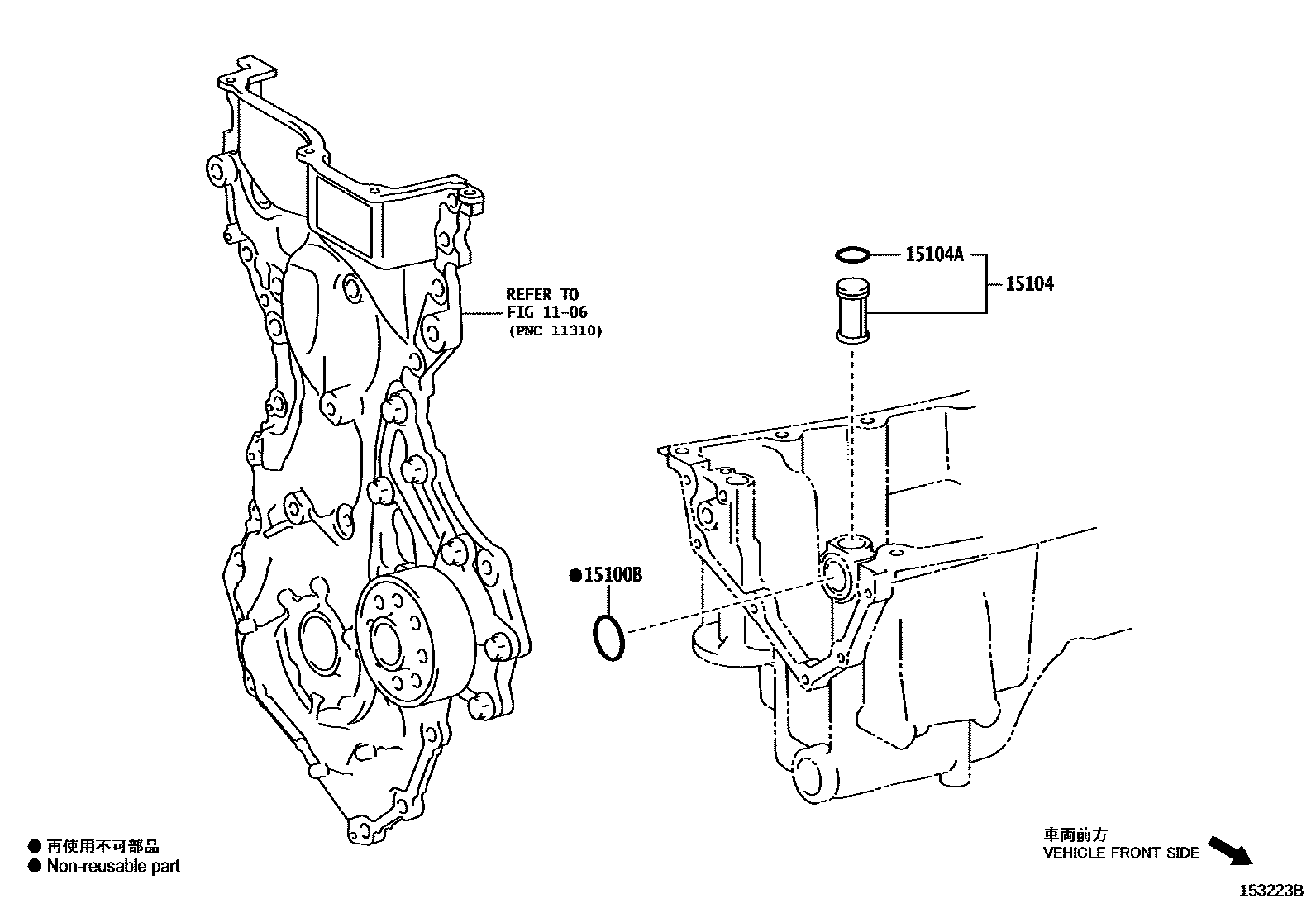

Parts diagram

1106

15100BRING, O(FOR OIL PUMP)

main90301-T0059i201908

15104STRAINER SUB-ASSY, OIL

main15104-0Y010i201908

15104ARING, O(FOR OIL STRAINER)

main90301-T0061i201908

4 parts on this diagram · 1 diagram in section
