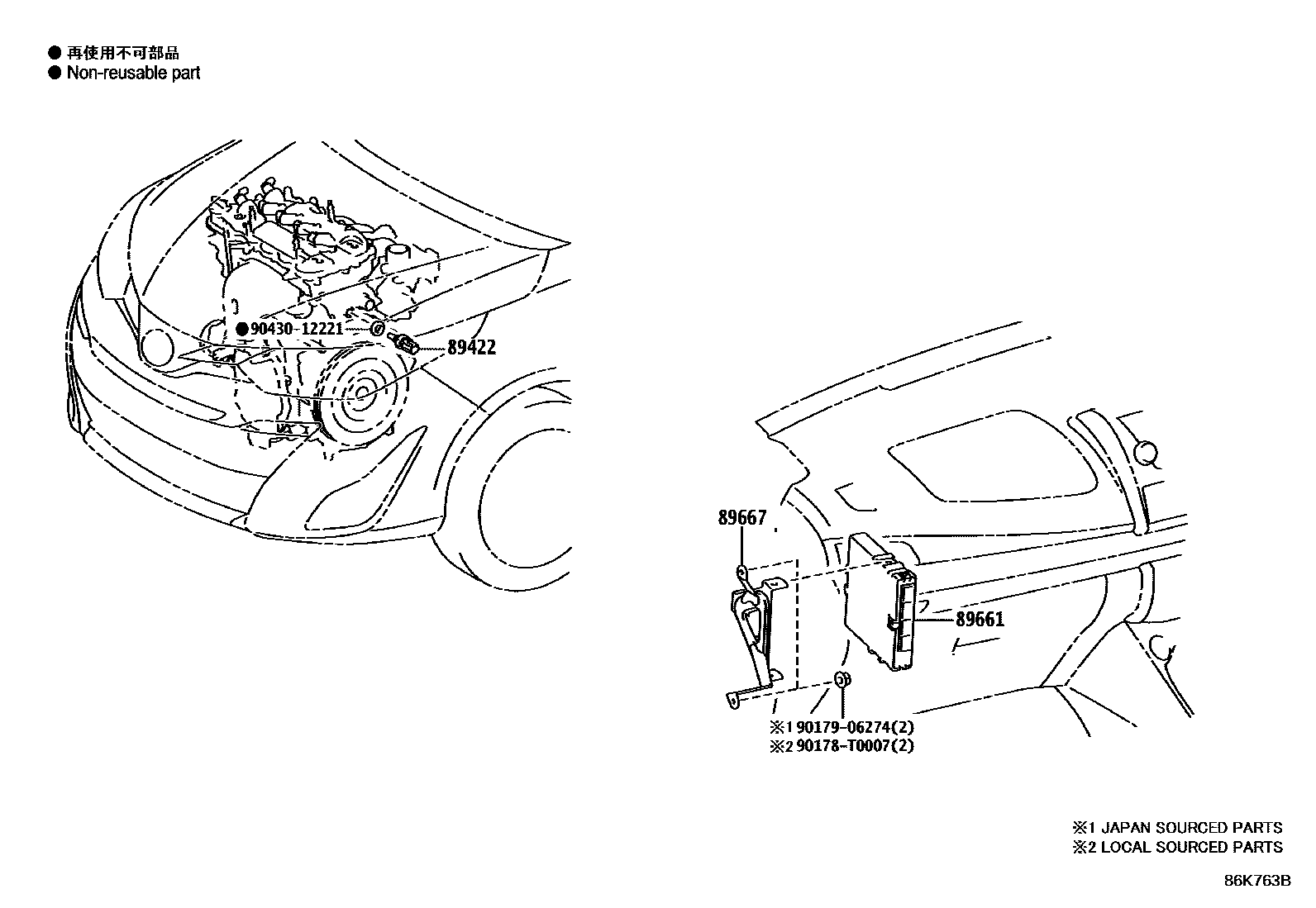

Toyota YARIS — ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNSP151¥2,410201908

89661COMPUTER, ENGINE CONTROL

main89661-0DN70iNSP151..6F201908-201912

DENSO

main89661-0DY60iNSP151..CVT201908-201912

DENSO

main89661-0UB30iNSP151..6F201912

DENSO

main89661-0UB40iNSP151..CVT201912

DENSO

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0D350iNSP151201908

90178T0007

main90178-T0007¥80

9017906274

main90179-06274¥70

9043012221

main90430-12221¥200

6 parts on this diagram · 1 diagram in section
