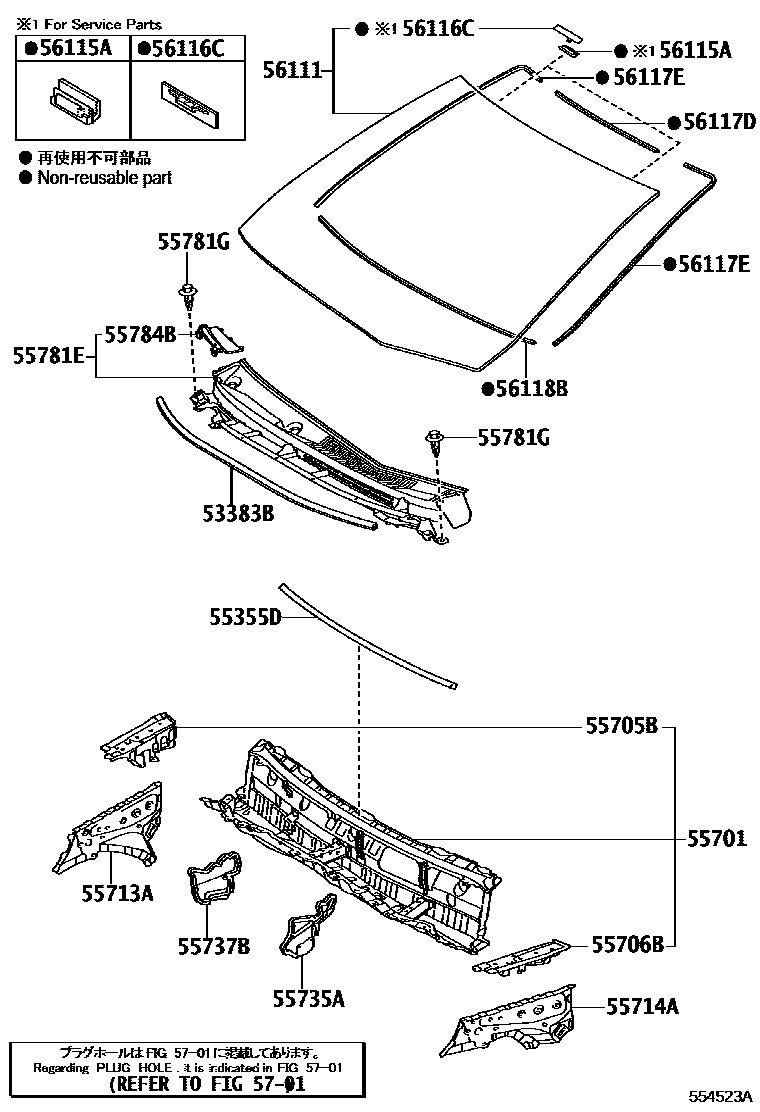

Toyota YARIS — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0D220iNSP151201908

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-0D380iNSP151201908

55701PANEL SUB-ASSY, COWL

main55700-0D400iNSP151201908

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D170iNSP151201908

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D170iNSP151201908

55713APANEL, COWL TOP SIDE, RH

main55713-0D160iNSP151201908

55714APANEL, COWL TOP SIDE, LH

main55714-0D160iNSP151201908

55735APLATE, WATER GUARD, LH

main55734-0D120iNSP151201908

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D280iNSP151201908

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D421iNSP151201908

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-0K040iNSP151¥120201908

(L)

main52161-16010iNSP151¥120201908

(J)

sub52161-0K040¥120

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-0D160iNSP151201908

56111GLASS, WINDSHIELD

main56101-0D720iNSP151..D,G,R201908

main56101-0D730iNSP151..V201908

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNSP151¥130201908

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNSP151¥120201908

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-0D450iNSP151201908

L=549

56117EDAM, WINDOW GLASS ADHESIVE

main56117-0D460iNSP151201908

L=915

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-0D470iNSP151201908

L=1182

5701

19 parts on this diagram · 1 diagram in section
