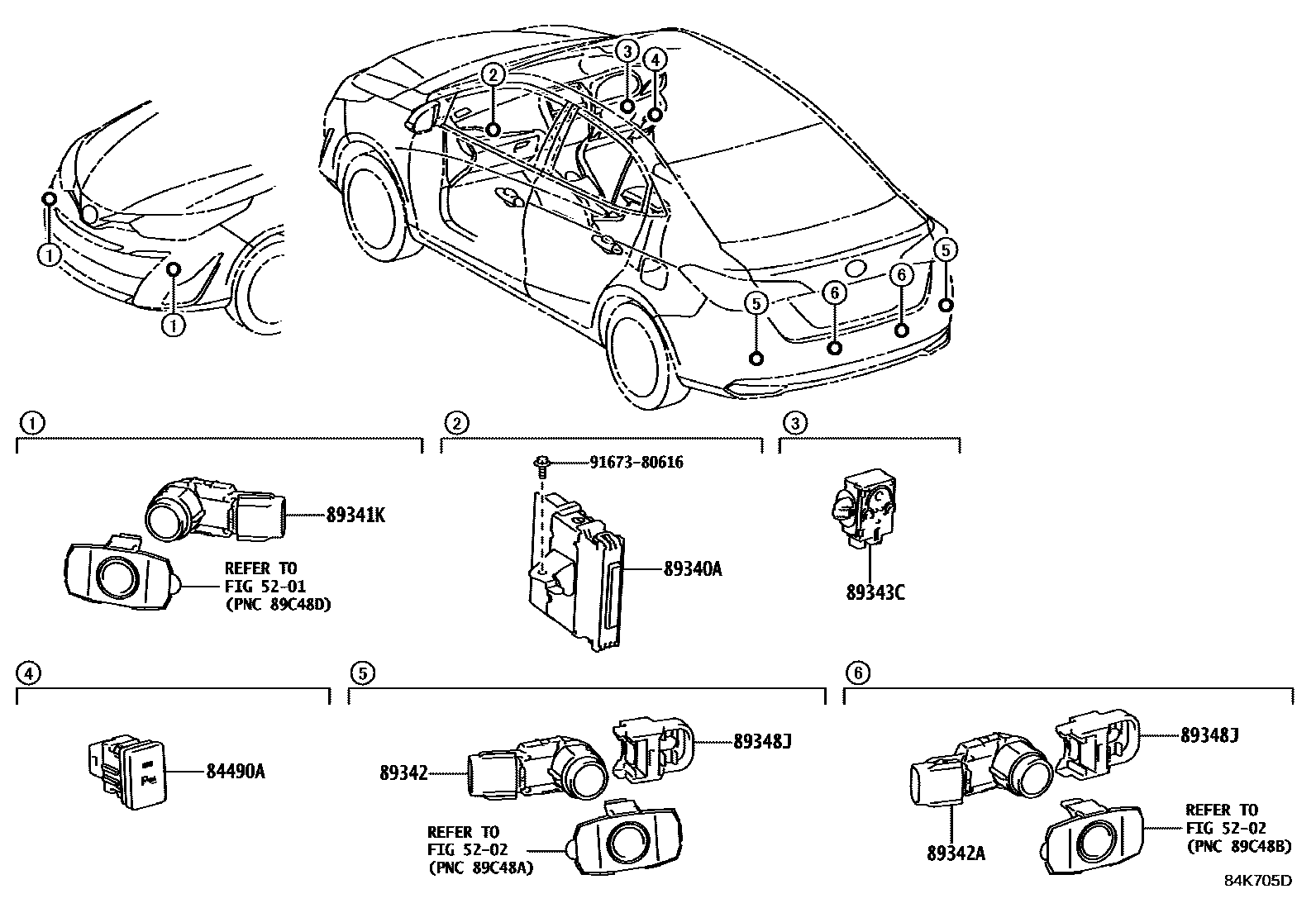

Toyota YARIS — CLEARANCE & BACK SONAR
5201
5202
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
BLACK MC.,215
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
BEIGE M.M.,587
89342SENSOR, ULTRASONIC, REAR CORNER
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
BLACK MC.,215
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
BEIGE M.M.,587
89342ASENSOR, ULTRASONIC, REAR CENTER
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY ME.,1G3
BLACK MC.,215
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
BEIGE M.M.,587
89343CBUZZER, CLEARANCE WARNING, NO.1
89348JCLIP, ULTRASONIC SENSOR
9167380616
10 parts on this diagram · 1 diagram in section
