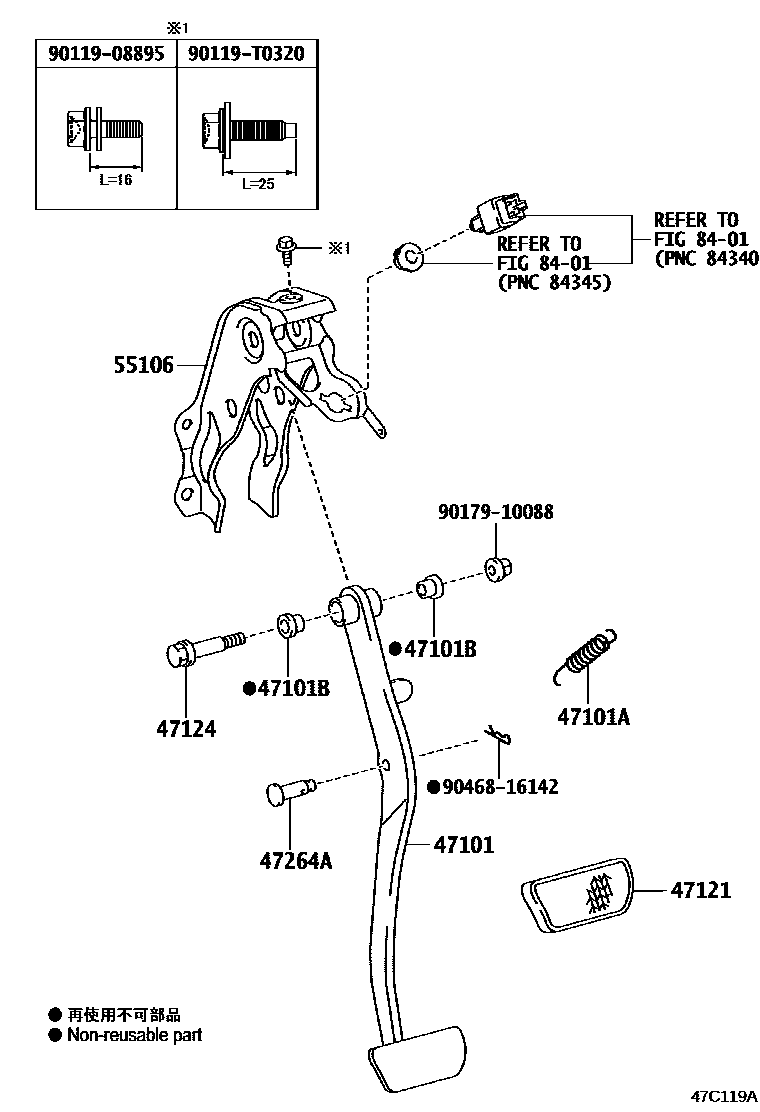

Toyota YARIS — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0D560iNSP151..6F201908

main47101-0D570iNSP151..CVT201908

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iNSP151¥120201908

(J)

main90506-T0015iNSP151201908

(L)

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNSP151¥120201908

47121PAD, BRAKE PEDAL

main31321-0D050iNSP151..6F201908

main47121-52010iNSP151..CVT¥260201908

47124SHAFT, BRAKE PEDAL

main90109-10167iNSP151¥190201908

47264APIN(FOR PUSH ROD)

main90249-08051iNSP151¥170201908

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D310iNSP151201908

8401

9011908895

main90119-08895¥100

90119T0320

main90119-T0320

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

12 parts on this diagram · 1 diagram in section
