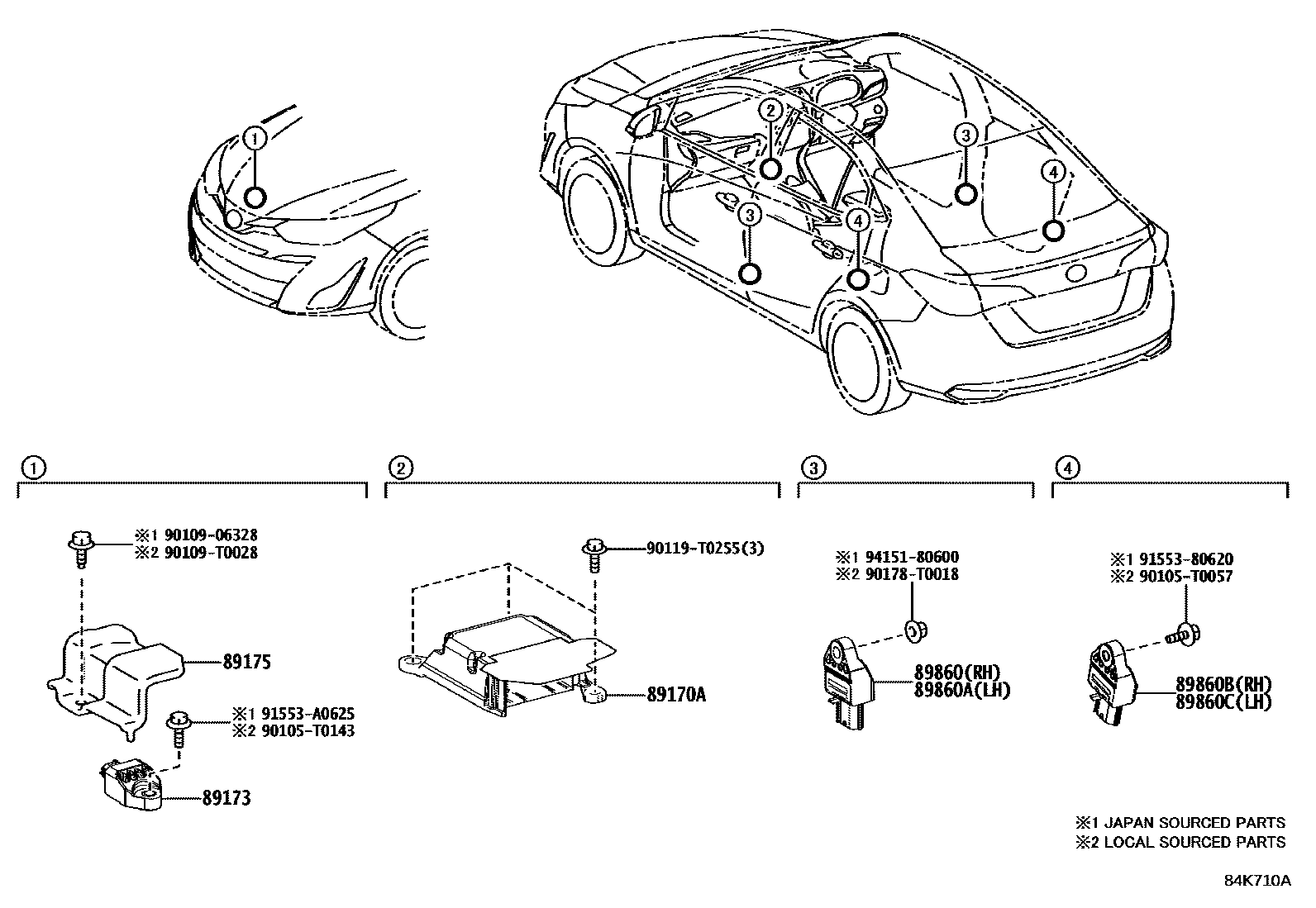

Toyota YARIS — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0DB60iNSP151..CVT;NSP151..6F..V201908-202103

main89170-0DB70iNSP151..6F..(D,G,R)201908-202103

89173SENSOR, AIRBAG, FRONT

main89173-09C00iNSP151201908

89175BRACKET, AIRBAG SENSOR

main89175-0D040iNSP151201908

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02260iNSP151201908

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02260iNSP151201908

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-02260iNSP151201908

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-02260iNSP151201908

90105T0057

main90105-T0057

90105T0143

main90105-T0143

9010906328

main90109-06328¥60

90109T0028

main90109-T0028

90119T0255

main90119-T0255

90178T0018

main90178-T0018¥70

9155380620

main91553-80620¥60

91553A0625

main91553-A0625¥60

9415180600

main94151-80600¥60

16 parts on this diagram · 1 diagram in section
