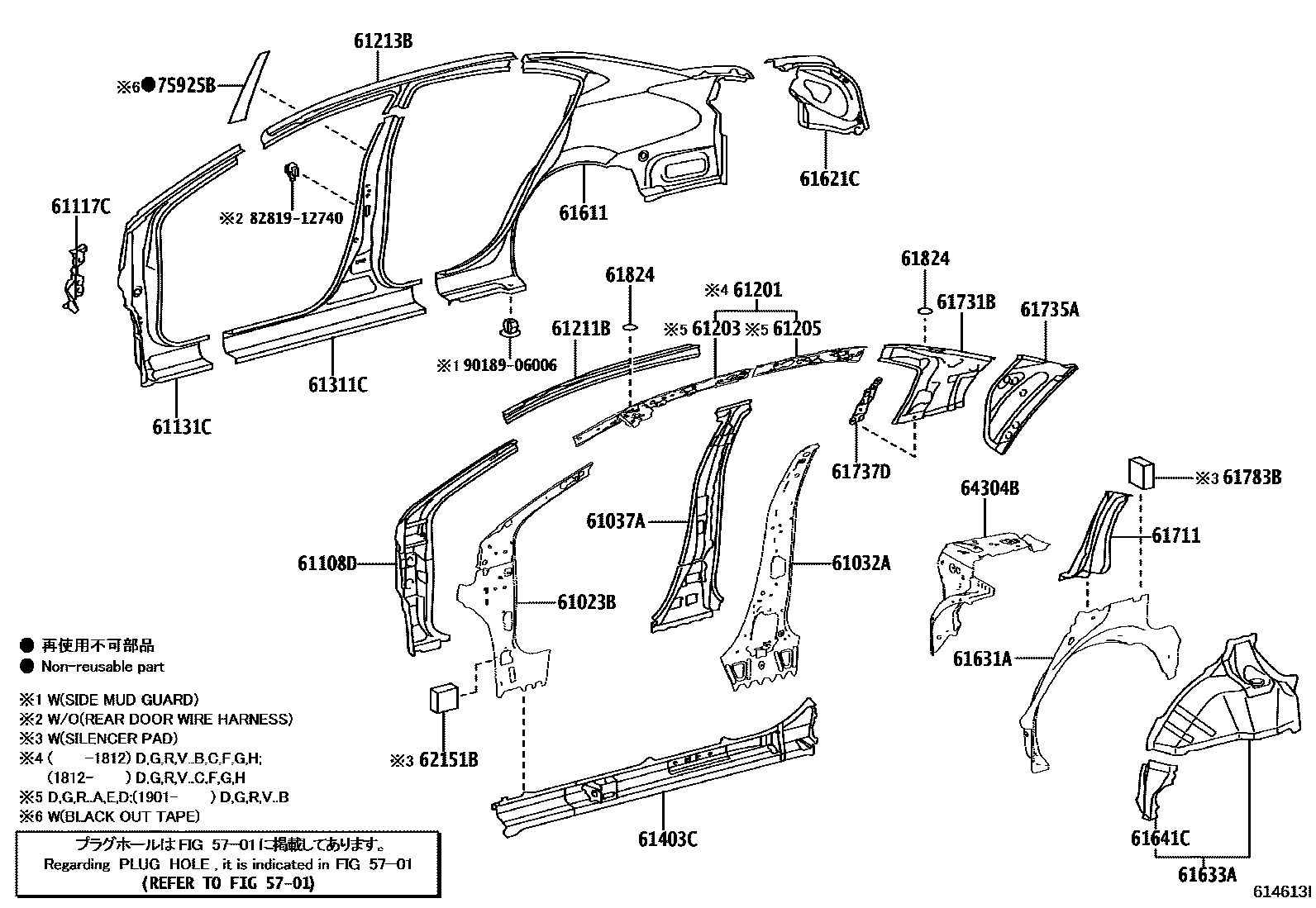

Toyota YARIS/VIOS/LIMO — SIDE MEMBER

0001 1RH SIDE 0002 1RH SIDE 0003 1LH SIDE 0007 1LH SIDE 0010 1LH SIDE

5701

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0D170iNCP150..IDN..B201304-201812

main61023-0D200iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main61023-0D220iNSP151..TAIW201404-201802

main61023-0D240iNCP15#..PH201407-201806

main61023-0D270iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202207

main61023-0D280iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main61023-0D290iNSP150,151..D201807-201910

main61023-0D300iNSP151..F201803-202101

main61023-0D310iNSP151..G201804-201908

main61023-0D320iNSP151..H201807-201910

main61023-0D360iNSP150,151..I202003-202406

main61023-0D370iNSP151..MA201901-202011

61032APILLAR SUB-ASSY, NO.1 INNER, RH

main61032-0D100iNCP15#..MA,VN201304-201812

main61032-0D130iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main61032-0D160iNSP151..TAIW201404-201802

main61032-0D190iNSP150,151..PH201407-201806

main61032-0D210iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)201708-202207

main61032-0D220iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main61032-0D230iNSP150,151..D201807-201910

main61032-0D240iNSP151..F201803-202101

main61032-0D250iNSP151..G201804-201908

main61032-0D260iNSP151..H201807-201910

main61032-0D290iNSP150,151..I202003-202406

main61032-0D300iNSP151..MA201901-202011

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-0D470iNSP150,151..I202003-202406

main61037-0D909iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main61037-0D911iNCP150,NSP151..TAIW201404-201802

main61037-0D915iNCP15#,NSP150,151..C201312-201712

main61037-0D916iNSP151..F201803-202101

main61037-0D917iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,201708-202207

main61037-0D918iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main61037-0D919iNSP151..G201804-201908

main61037-0D920iNSP151..H201807-201910

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

main61108-0D120iNSP150..5F..G..A;NSP150..5F..GCC..D..A201304-202207

main61108-0D150iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main61108-0D170iNCP150,NSP151..TAIW201404-202101

main61108-0D180iNSP150,151..D201407-201910

main61108-0D210iNSP151..G201804-201908

main61108-0D220iNSP151..H201807-201910

main61108-0D230iNSP150,151..I202003-202406

main61108-0D240iNSP151..MA201901-202011

61117CGUSSET, SIDE PANEL TO COWL, RH

main61117-0D030iNSP150..5F..G..A;NSP150..5F..GCC..D..A201304-202406

main61117-0D050iNCP15#,NSP150,151..C201312-202207

main61117-0D060iNCP150,NSP151..TAIW201404-202101

main61117-0D090iNSP151..G201804-201908

main61117-0D100iNSP151..H201807-201910

main61117-0D120iNSP150,151..E201808-201912

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0D170iNCP15#,NSP150,151..B,C201304

main61131-0D200iNSP151..F201708-202207

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-0D110iNCP15#..PH201304-201812

main61201-0D140iNCP15#..C201312-201712

main61201-0D160iNSP151..TAIW201404-201802

main61201-0D180iNSP150,151..PH201407-201806

main61201-0D220iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

sub61203-0D030

sub61205-0D010

main61201-0D240iNSP151..F201803-202101

main61201-0D250iNSP151..G201804-201908

main61201-0D260iNSP151..H201807-201910

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-0D030iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202207

main61203-0D050iNSP150,151..D201807-201910

main61203-0D090iNSP150,151..I202003-202406

61205RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH

main61205-0D010iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202207

main61205-0D030iNSP150,151..D201807-201910

main61205-0D110iNSP150,151..I202003-202406

61211BRAIL, ROOF SIDE, OUTER REAR RH

main61211-0D140iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main61211-0D170iNCP15#,NSP150,151..C201312-201712

main61211-0D190iNCP150,NSP151..TAIW201404-201802

main61211-0D240iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202406

main61211-0D250iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main61211-0D260iNSP151..MA201901-202011

main61211-0D270iNSP150,151..D201807-201910

main61211-0D280iNSP151..F201803-202101

main61211-0D290iNSP151..G201804-201908

main61211-0D300iNSP151..H201807-201910

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0D100iNSP151..F201708-202207

main61213-0D140iNCP15#,NSP150,151..B,C201304

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-0D070iNCP15#,NSP150,151..B,C201304

main61311-0D130iNSP151..F201708-202207

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0D180iNCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B201304-201701

sub61403-0D350

main61403-0D230iNCP15#,NSP150,151..C201312-201712

main61403-0D240iNCP150,NSP151..MA201310-201701

sub61403-0D370

main61403-0D250iNCP150,NSP151..TAIW201404-201701

sub61403-0D390

main61403-0D270iNCP15#,NSP15#..PH201407-201701

sub61403-0D380

main61403-0D330iNSP151..G201804-201908

main61403-0D340iNSP151..H201807-201910

main61403-0D350iNSP150,151..(GCC,GEN,TH,VN)..B201702-202207

main61403-0D360iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main61403-0D370iNSP151..MA201702-202011

main61403-0D380iNSP150,151..PH201702-201910

main61403-0D390iNSP151..TAIW201702-202101

main61403-0D410iNSP150,151..I202003-202406

61611PANEL, QUARTER, RH

main61601-0D230iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main61601-0D260iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,201708-202207

main61601-0D290iNCP15#,NSP150,151..C201312-201712

sub61601-0D230

main61601-0D310iNCP150,NSP151..TAIW201404-201802

main61601-0D400iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

sub61601-0D260

main61601-0D420iNSP151..F201803-202101

main61601-0D430iNSP151..G201804-201908

sub61601-0D260

main61601-0D440iNSP151..H201807-201910

sub61601-0D490

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61063-0D030iNCP15#..VN;NSP15#..GCC,GEN,TH201304-201812

main61063-0D050iNCP15#,NSP150,151..C201312-201712

sub61063-0D160

main61063-0D060iNCP150,NSP151..TAIW201404-201802

main61063-0D090iNSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)201708-202207

main61063-0D100iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

sub61063-0D090

main61063-0D110iNSP151..MA201901-202011

sub61063-0D090

main61063-0D120iNSP151..F201803-202101

main61063-0D130iNSP151..G201804-201908

sub61063-0D090

main61063-0D140iNSP151..H201807-201910

main61063-0D160iNCP15#,NSP150,151..(GCC,GEN,TH,VN)..B201607

main61063-0D170iNSP150,151..I202003-202406

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-K0010iNSP151..TAIW201304-202406

main61631-K0040iNSP151,152..A;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61605-0D050iNCP15#..MA,VN201304-202207

main61605-0D060iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201312-202207

sub61605-0D050

main61605-0D070iNSP150,151..E201808-201912

main61605-0D080iNSP150,151..D201407-201910

main61605-0D120iNSP151..G201804-201908

sub61605-0D050

main61605-0D130iNSP151..H201807-201910

main61605-0D140iNSP150,151..I202003-202406

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0D070iNSP150,151..GCC..B201304-202406

main61641-0D090iNSP151..TH..G..C201312-202207

main61641-0D130iNSP151..G201804-201908

main61641-0D140iNSP151..H201807-201910

main61641-0D160iNSP150,151..D201807-201910

main61641-0D180iNSP150,151..E201808-201912

61711PANEL, ROOF SIDE, OUTER RH

main61711-0D090iNSP151..H201807-201910

main61711-K0010iNCP15#..PH201304-201812

main61711-K0030iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..IND,MA,PKN201708-202406

61731BPANEL, ROOF SIDE, INNER RH

main61731-0D160iNSP151..H201807-201910

main61731-0D210iNSP150,151..I202003-202406

main61731-K0010iNCP150..TAIW201304-201812

main61731-K0060iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201708-202207

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0D240iNSP151..H201807-201910

main61735-0D260iNSP150,151..I202003-202406

main61735-K0010iNCP150..TAIW201304-201812

main61735-K0020iNSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP151..LHD..CVT..GEN..A;NSP151..RHD..(GEN,IND,MA);NSP150..5F..GCC..R..(A,C);NSP151..5F..(GEN,IDN)..(A,C);NSP151..(GC201708-202207

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-0D040iNSP150..5F..G..A;NSP150..5F..GCC..D..A201304-202406

main61737-0D070iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main61737-0D090iNSP151..F201404-202101

main61737-0D160iNSP151..G201804-201908

main61737-0D170iNSP151..H201807-201910

main61737-0D190iNSP150,151..E201808-201912

61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1

main61783-0D100iNSP151..D,E;NSP152..HTWC;NSP150..(G,R)..(D,I);NSP151..(MA,PKN)..(G,R,V)201708-202406

main61783-0D100iNCP15#..(GCC,GEN,TH)..(G,R,V)..B201304-201812

RH ONLY

main61783-0D120iNCP15#..(G,R)..C201312-201712

RH ONLY

main61783-0D120iNSP150,151..(G,R)..C201801-202207

main61783-0D150iNSP151..(G,R,V)..G201804-201908

main61783-0D160iNSP151..(G,R,V)..H201807-201910

61824PLATE, NOISE CONTROL, NO.1

main61824-0D020iNCP150..IDN..(G,R)..B201304-202406

main61824-0D060iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main61824-0D120iNSP151..G201804-201908

main61824-0D130iNSP151..H201807-201910

main61825-0D020iNSP151..TH..D..B201304-201812

62151BPAD, COWL SIDE SILENCER

main62151-0D110iNSP150,151..GCC..B201304-201812

main62151-0D140iNCP15#..C201312-201712

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-0D100iNCP150..IDN..B201304-201812

main64304-0D110iNCP15#..C201312-201712

sub64304-0D100

main64304-0D120iNCP150..TAIW201404-201802

main64304-0D130iNSP150,151..PH201407-201806

main64304-0D170iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)201708-202207

main64304-0D180iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main64304-0D190iNSP150,151..D201807-201910

main64304-0D200iNSP151..F201803-202101

main64304-0D210iNSP151..G201804-201908

main64304-0D220iNSP151..H201807-201910

main64304-0D240iNSP150,151..I202003-202406

main64304-0D250iNSP151..MA201901-202011

sub64304-0D170

75925BTAPE, BLACK OUT, NO.3 RH

main75925-0D060iNCP150..IDN..(G,R)..B201304-202406

main75925-0D080iNSP151..TAIW201404-202101

main75925-0D090iNSP151..MA201310-202011

main75925-0D100iNCP15#..PH201307-201606

BLACK OUT TAPE-WITHOUT

main75925-0D100iNSP150..PH..D201307-201806

LIMO PACKAGE

main75925-0D100iNSP150,151..(G,R)..D201807-201910

main75925-0D110iNSP150,151..(G,R)..C201801-202207

J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))

main75925-0D110iNSP151..5F..D..C201312-202207

main75925-0D120iNSP151..H201807-201910

main75925-0D130iNSP151..G201804-201908

8281912740GROMMET, WIRING HARNESS

main82819-12740

9018906006

main90189-06006¥100

30 parts on this diagram · 5 diagrams in section
