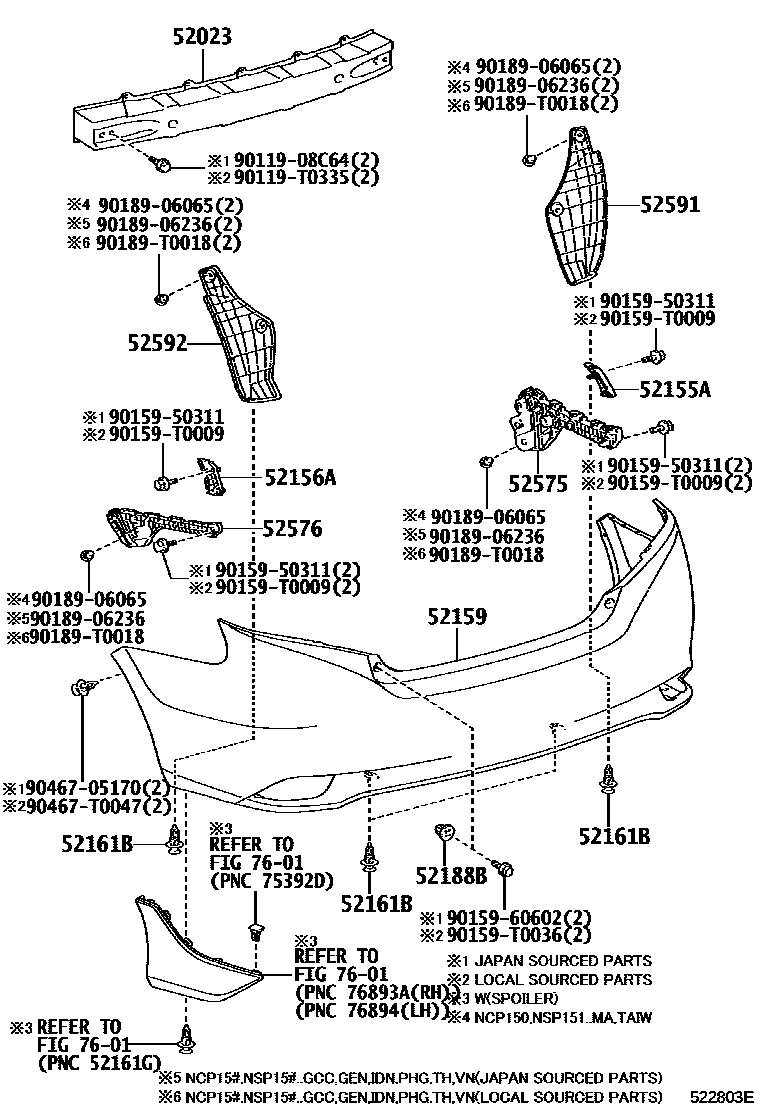

Toyota YARIS/VIOS/LIMO — REAR BUMPER & BUMPER STAY

0001 1 0005 1 0011 1SPECIAL EDITION

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0D060iNSP151..G201804-201908

main52023-0D090iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main52023-0D090iNCP15#..PH201304-201606

main52023-0D090iNSP150,151..GEN201304-201709

main52023-0D090iNCP15#..MA,VN201304-201608

main52023-0D090iNSP150,151..GCC..B201304-201712

main52023-0D090iNCP15#..(GCC,GEN,TH)..B201304-201603

main52023-0D090iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP151..(GCC,PH,TH)..(A,D);NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH)..(D,R)..(A,201708-202207

main52023-0D090iNCP150..IDN..B201304-201506

main52023-0D090iNSP150,151..PH201304-201806

main52023-0D090iNSP150,151..VN201304-201807

main52023-0D090iNSP151..MA201304-201812

main52023-0D090iNSP151..TH..B201304

main52023-0D100iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main52023-0D100iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main52023-0D100iNSP151..TH..G..C201312-201707

main52023-0D100iNCP15#..C201312-201609

main52023-0D100iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main52023-0D110iNSP151..F201803-202101

main52023-0D110iNCP150..TAIW201404-201604

main52023-0D110iNSP151..TAIW201404-201802

main52023-0D120iNSP151..H201807-201910

main52023-0D140iNSP150,151..E201808-201912

main52023-0D150iNSP150,151..I202003-202406

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0D070iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main52155-0D080iNCP150,NSP151..TAIW201404-201802

main52155-0D090iNCP15#,NSP150,151..C201312-201712

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0D060iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main52156-0D070iNCP150,NSP151..TAIW201404-201802

main52156-0D080iNCP15#,NSP150,151..C201312-201712

52159COVER, REAR BUMPER

main52159-0U901iNCP150,NSP151..TAIW201404-201802

main52159-0U903iNCP15#,NSP150,151..(GCC,GEN,IDN,TH,VN)..B201304

main52159-0U904iNCP15#,NSP150,151..PH201307-201806

main52159-0U905iNCP150,NSP151..MA201310-201812

main52159-0U908iNCP15#,NSP150,151..C201312-201712

main52159-0U924iNSP151..D..F201803-202009

sub52159-0U966

sub75895-0D350

main52159-0U924iNSP151..(R,V)..F201803-202008

sub52159-0U966

sub75895-0D350

main52159-0U925iNSP151..H201807-201910

PAINT REQ.

main52159-0U930iNSP151..A;NSP150..A,E;NSP151..5F..E;NSP152..HTWCB201708-202002

PAINT REQ.

sub52159-0U963

sub75895-0D310

main52159-0U931iNSP151..MA..(D,R)201901-202005

sub52159-0U964

sub75895-53010¥790

main52159-0U932iNSP151..MA..(G,V)201901-202005

sub52159-0U965

sub75895-53010¥790

main52159-0U933iNSP150,151..C201801-202009

sub52159-0U954

sub75895-0D330

main52159-0U935iNSP150,151..D201807-201910

PAINT REQ.

sub52159-0U959

sub75895-53010¥790

main52159-0U938iNSP151..R..G201804-201907

PAINT REQ.

main52159-0U939iNSP151..(G,V)..G201804-201907

PAINT REQ.

main52159-0U940iNSP151..D..G201804-201906

PAINT REQ.

main52159-0U941iNSP152..HTWC;NSP151..CVT..E201708-201912

PAINT REQ.

sub52159-0U967

sub75895-0D310

main52159-0U943iNSP151..D..G201906-201908

PAINT REQ.

sub52159-0U960

sub75895-53010¥790

main52159-0U943iNSP151..R..G201907-201908

PAINT REQ.

sub52159-0U960

sub75895-53010¥790

main52159-0U944iNSP151..(G,V)..G201907-201908

PAINT REQ.

sub52159-0U961

sub75895-53010¥790

main52159-0U954iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C202009-202207

PAINT REQ.

main52159-0U954iNSP150..5F..D..C;NSP151..CVT..D..C202009-202108

PAINT REQ.

main52159-0U956iNSP150,151..I202003-202406

PAINT REQ.

main52159-0U963iNSP150..5F..G..A;NSP150..5F..GCC..D..A202002-202108

PAINT REQ.

main52159-0U963iNSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A202002-202207

PAINT REQ.

main52159-0U964iNSP151..MA..(D,R)202005-202011

PAINT REQ.

main52159-0U965iNSP151..MA..(G,V)202005-202011

PAINT REQ.

main52159-0U966iNSP151..D..F202009-202101

PAINT REQ.

main52159-0U968iNSP151..(R,V)..F202008-202101

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)¥120201708-202108

(L)

main52161-0K040iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)¥120201304

main52161-0K040iNSP150,151..MA,PH,VN¥120201807-202011

main52161-0K040iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C¥120201708-202207

(L)

main52161-0K040iNSP152..HTWC;NSP150,151..G,H,I¥120201708-202406

(L)

main52161-0K060iNCP150,NSP151..TAIW201404-201802

main52161-0K060iNSP151..F201803-202101

(L)

main52161-16010iNSP152..HTWC;NSP150,151..G,H,I¥120201708-202406

(J)

sub52161-0K040¥120

main52161-16010iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C¥120201708-202207

(J)

sub52161-0K040¥120

main52161-16010iNSP151..F¥120201708-202101

(J)

sub52161-0K040¥120

main52161-16010iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)¥120201708-202108

(J)

sub52161-0K040¥120

52188BSPACER, REAR BUMPER MOUNTING

main52188-0D010iNSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A202102-202207

(L)

main52188-0D010iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C202104-202207

(L)

main52188-0D010iNSP150..5F..G..A;NSP150..5F..GCC..D..A202102-202108

(L)

main52188-0D010iNSP150..5F..D..C;NSP151..CVT..D..C202104-202108

(L)

main52188-0D010iNSP151..B202102

(L)

main52188-33040iNSP152..HTWC;NSP150..D,E,I;NSP151..AGT,BZ,IND,MA,PKN;NSP151..(GEN,PH,VN)..(D,E,H)¥80201708-202406

main52188-33040iNCP15#,NSP150,151..B,C¥80201304-202102

main52188-33040iNSP151..B¥80202102

(J)

main52188-33040iNSP151..F¥80201708-202101

main52188-33040iNSP150,151..A;NSP152..HTWCB¥80201708-202102

main52188-33040iNSP150,151..(GCC,IDN)..C¥80201708-202104

main52188-33040iNSP150..5F..G..A;NSP150..5F..GCC..D..A¥80202102-202108

(J)

main52188-33040iNSP150..5F..D..C;NSP151..CVT..D..C¥80202104-202108

(J)

main52188-33040iNSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A¥80202102-202207

(J)

main52188-33040iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C¥80202104-202207

(J)

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D170iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main52575-0D200iNCP150,NSP151..TAIW201404-201802

main52575-0D240iNCP15#,NSP150,151..C201312-201712

main52575-0D260iNSP150,151..D201807-201910

main52575-0D340iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main52575-0D340iNSP151..E;NSP150..E,I;NSP152..HTWC;NSP151..MA,PKN201708-202406

main52575-0D340iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main52575-0D350iNSP151..F201803-202101

main52575-0D360iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main52575-0D360iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main52575-0D370iNSP151..G201804-201908

main52575-0D380iNSP151..H201807-201910

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D170iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main52576-0D200iNCP150,NSP151..TAIW201404-201802

main52576-0D240iNCP15#,NSP150,151..C201312-201712

main52576-0D330iNSP151..E;NSP150..E,I;NSP152..HTWC;NSP151..MA,PKN201708-202406

main52576-0D330iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main52576-0D330iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main52576-0D340iNSP151..F201803-202101

main52576-0D350iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main52576-0D350iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main52576-0D360iNSP151..G201804-201908

main52576-0D370iNSP151..H201807-201910

main52576-0D460iNSP150,151..D201807-201910

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D200iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main52591-0D220iNCP150,NSP151..TAIW201404-201802

main52591-0D250iNCP15#,NSP150,151..C201312-201712

main52591-0D400iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP151..(GCC,PH,TH)..(A,D);NSP150..CVT..GCC..(D,R)..A;NSP150,152..(GEN,PH,TH)..(D,201708-202207

main52591-0D400iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main52591-0D410iNSP151..F201803-202101

main52591-0D420iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main52591-0D420iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main52591-0D430iNSP151..G201804-201908

main52591-0D440iNSP151..H201807-201910

main52591-0D520iNSP150,151..E201808-201912

main52591-0D530iNSP150,151..I202003-202406

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D200iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main52592-0D220iNCP150,NSP151..TAIW201404-201802

main52592-0D250iNCP15#,NSP150,151..C201312-201712

main52592-0D400iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP151..(GCC,PH,TH)..(A,D);NSP150..CVT..GCC..(D,R)..A;NSP150,152..(GEN,PH,TH)..(D,201708-202207

main52592-0D400iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main52592-0D410iNSP151..F201803-202101

main52592-0D420iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main52592-0D420iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main52592-0D430iNSP151..G201804-201908

main52592-0D440iNSP151..H201807-201910

main52592-0D520iNSP150,151..E201808-201912

main52592-0D530iNSP150,151..I202003-202406

7601

9011908C64

main90119-08C64¥90

90119T0335

main90119-T0335

9015950311

main90159-50311¥70

9015960602

main90159-60602¥60

90159T0009

main90159-T0009

90159T0036

main90159-T0036

9018906065

main90189-06065¥80

9018906236

main90189-06236¥100

90189T0018

main90189-T0018

9046705170

main90467-05170¥80

90467T0047

main90467-T0047

22 parts on this diagram · 3 diagrams in section
