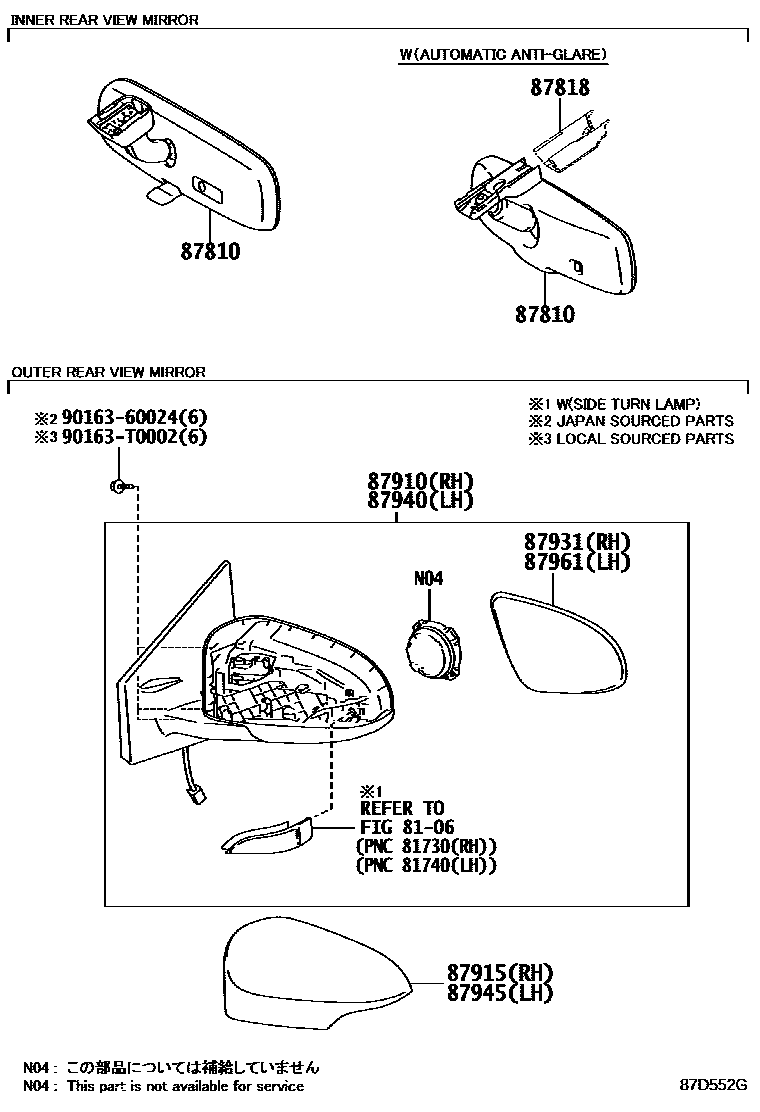

Toyota YARIS/VIOS/LIMO — MIRROR
8106
87818COVER, INNER RR VIEW MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
main87910-0D720iNSP151..5F..E;NSP150..LHD..GEN..D;NSP151..GEN..(D,R)..A;NSP150..LHD..(GEN,PH)..R..(A,D)201710-202207
NO PAINT REQ.
CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))
NO PAINT REQ.
MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))
ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))
LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))
NO PAINT REQ.,BRUNEI SPEC
NO PAINT REQ.
NO PAINT REQ.,E-SPORT PACKAGE
NO PAINT REQ.
E-HI PACKAGE(WHEEL CAP(FOR 15INCH))
E-SPORT PACKAGE(GRADE MARK(S))
NO PAINT REQ.
J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))
NO PAINT REQ.
NO PAINT REQ.
E-HI PACKAGE(WHEEL CAP(FOR 15INCH))
NO PAINT REQ.,E-SPORT PACKAGE
NO PAINT REQ.
E-SPORT PACKAGE(GRADE MARK(S))
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
PAINT REQ.,ALGERIA SPEC&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(SIDE TURN LAMP)
PAINT REQ.
PAINT REQ.,BRUNEI SPEC
main87915-06910iNSP150..CVT..G..A;NSP151..CVT..R..E;NSP151,152..RHD..A;NSP151..LHD..G..(A,D,E)201708-202207
NO PAINT REQ.
NO PAINT REQ.
J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
E-HI PACKAGE(WHEEL CAP(FOR 15INCH))
PAINT REQ.
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
main87940-0D710iNSP151..5F..E;NSP150..LHD..GEN..D;NSP151..GEN..(D,R)..A;NSP150..LHD..(GEN,PH)..R..(A,D)201710-202207
NO PAINT REQ.
NO PAINT REQ.
ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))
MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))
NO PAINT REQ.
LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))
CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))
NO PAINT REQ.
NO PAINT REQ.,BRUNEI SPEC
NO PAINT REQ.,E-SPORT PACKAGE
NO PAINT REQ.
E-HI PACKAGE(WHEEL CAP(FOR 15INCH))
E-SPORT PACKAGE(GRADE MARK(S))
J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,E-SPORT PACKAGE
E-HI PACKAGE(WHEEL CAP(FOR 15INCH))
E-SPORT PACKAGE(GRADE MARK(S))
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
PAINT REQ.,ALGERIA SPEC&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(SIDE TURN LAMP)
PAINT REQ.
PAINT REQ.,BRUNEI SPEC
main87945-06910iNSP150..CVT..G..A;NSP151..CVT..R..E;NSP151,152..RHD..A;NSP151..LHD..G..(A,D,E)201708-202207
NO PAINT REQ.
NO PAINT REQ.
J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
E-HI PACKAGE(WHEEL CAP(FOR 15INCH))
PAINT REQ.
87961MIRROR OUTER, LH
9016360024
90163T0002
main90163-T0002
11 parts on this diagram · 2 diagrams in section
