Toyota YARIS/VIOS/LIMO — METER

0001 1 0004 1 0008 1

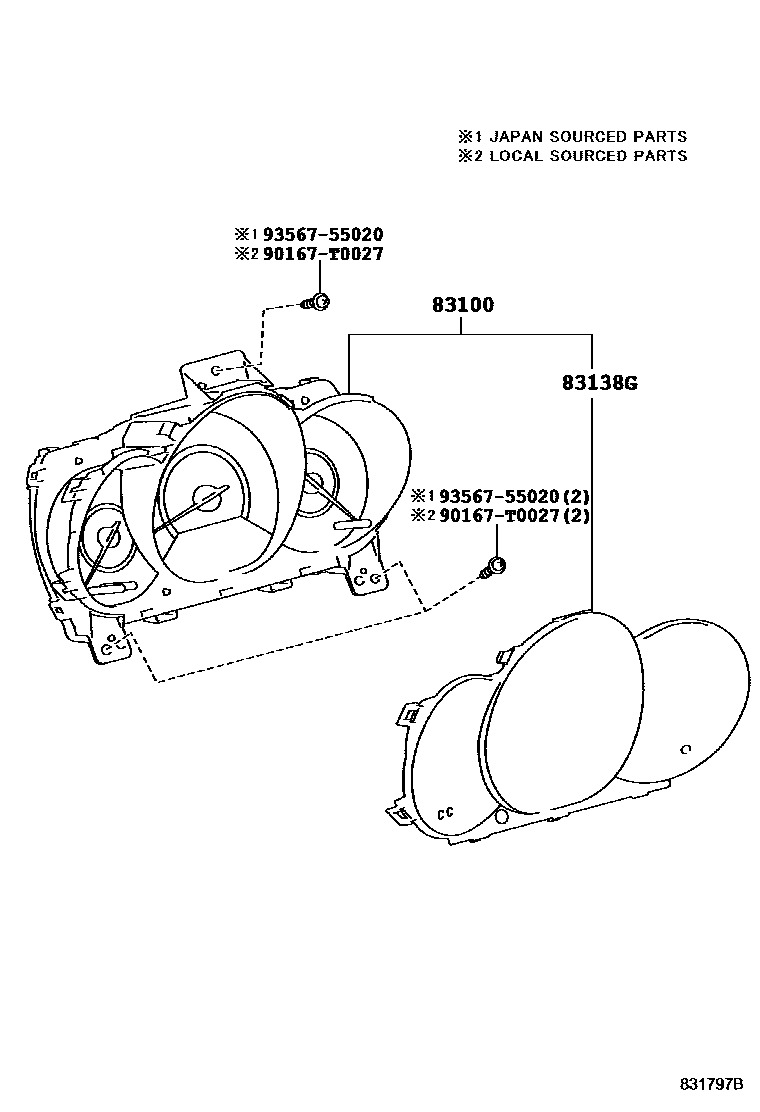

83100METER ASSY, COMBINATION

main83800-0DU50iNCP150..IDN..D..C;NCP15#..(IDN,PH,TH,VN)..D..B201304-201609

main83800-0DU70iNCP150..MA..(D,R)201304-201501

main83800-0DU70iNCP150..TH..D..C;NCP15#..(PH,TH)..R;NCP151..RHD..(D,R);NCP15#..LHD..GEN..D201304-201609

main83800-0DU80iNCP15#..GCC..(D,R)201308-201609

main83800-0DU90iNCP150..(IDN,VN)..R;NCP150..(IDN,MA,PH,TH,VN)..G201304-201609

main83800-0DV00iNCP151..GEN..G;NCP150..GEN..(G,R);NCP151..LHD..GEN..R201308-201603

main83800-0DV10iNCP15#..GCC..G201308-201609

main83800-0DW60iNCP150..TAIW..(D,R)201404-201604

main83800-0DY40iNCP150..RHD..V201304-201608

main83800-0DY60iNCP150..TAIW..V201404-201604

main83800-0DZ20iNSP150,151..5F..(IDN,PH,VN)..D201607-201807

main83800-0UL80iNCP150..MA..(D,R)201501-201608

main83800-0UM50iNSP151..I202003-202406

main83800-0UN30iNSP152201911-202009

DENSO

main83800-0UP90iNSP150..PH..R;NSP151..TH..(D,R)..C;NSP150..RHD..(D,R)..B;NSP151..5F..GEN..D..B;NSP150..LHD..GEN..D..B;NSP151..CVT..(GEN,IDN)..D..(B,C)201604-201806

main83800-0UQ50iNSP151..MA..(D,R)201608-201812

main83800-0UQ60iNSP151..TH..(D,R)..B201604

main83800-0UQ70iNSP150,151..GCC..(D,R)201604-201712

main83800-0UQ80iNSP151..TH..G..C;NSP151..(IDN,PH,VN)..(G,R)201607-201807

main83800-0UQ90iNSP151..TH..G..B201604

main83800-0UR00iNSP150..GEN..G;NSP151..GEN..(G,R);NSP150..LHD..GEN..R201604-201709

main83800-0UR20iNSP150,151..GCC..G201604-201712

main83800-0UR30iNSP151..MA..G201608-201812

main83800-0US00iNSP151..TAIW..(D,R)201605-201802

main83800-0US20iNSP151..MA..V201608-201812

main83800-0US30iNSP151..TH..V201604

main83800-0US70iNSP151..TAIW..V201605-201802

main83800-0UV30iNSP151..GCC..R201801-202207

DENSO

main83800-0UV30iNSP151..GCC..R201801-202207

DENSO,E-SPORT PACKAGE(GRADE MARK(S))

main83800-0UV40iNSP150..5F..GCC..D201801-202108

DENSO

main83800-0UV40iNSP150,151..GCC..R;NSP150..CVT..GCC..D201801-202207

DENSO

main83800-0UV60iNSP151..D..F201803-202101

DENSO

main83800-0UV70iNSP150..LHD..GEN..D;NSP150..RHD..(D,R)..A;NSP151..(GEN,IDN)..D..(A,C)201710-202009

DENSO

main83800-0UV70iNSP151..5F..E;NSP150..D..(D,E);NSP151..MA..(D,R)201710-202011

DENSO

main83800-0UY40iNSP151..(R,V)..F201803-202101

DENSO

main83800-0UY60iNSP151..TH..A;NSP151..IDN..R201708-202207

DENSO

main83800-0UY60iNSP152..HTWC;NSP151..5F..D;NSP151..CVT..(D,E);NSP150..(G,R)..(D,I)201708-202406

DENSO

main83800-0UY70iNSP151..D..G201804-201906

DENSO

main83800-0UY71iNSP151..D..G201906-201908

DENSO

main83800-0UZ00iNSP151..GEN..H;NSP151..AGT..R201807-201910

YAZAKI

main83800-0UZ20iNSP151..BZ..G201807-201910

YAZAKI,PARAGUAY SPEC

main83800-0UZ20iNSP151..BZ..G201807-201910

YAZAKI

main83800-F5050iNSP151..IDN..G201801-202207

DENSO

main83800-F5060iNSP151..V..G201804-201906

DENSO

main83800-F5061iNSP151..V..G201906-201908

DENSO

main83800-F5070iNSP151..(G,R)..G201804-201906

DENSO

main83800-F5071iNSP151..(G,R)..G201906-201908

DENSO

main83800-F5120iNSP151..AGT..G201807-201910

YAZAKI

main83800-F5130iNSP151..BZ..(G,V)201807-201910

YAZAKI

main83800-F5730iNSP150..GEN..G;NSP150..LHD..GEN..R;NSP151..GEN..(G,R)..A201710-202009

DENSO

main83800-F5740iNSP151..MA..(G,V)201901-202011

DENSO

main83800-F5A10iNSP150..D..I202003-202406

DENSO

main83800-F5F80iNSP152202009-202109

DENSO

main83800-F5F81iNSP152202109-202207

DENSO

main83800-F5L40iNSP151..CVT..D..C202009-202108

DENSO

main83800-F5L40iNSP151..CVT..D..A;NSP150..LHD..GEN..D;NSP151..5F..D..(A,C);NSP150..RHD..(D,R)..A202009-202109

DENSO

main83800-F5L41iNSP151..5F..D;NSP151..CVT..D..A;NSP150..LHD..GEN..D;NSP150..RHD..(D,R)..A202109-202207

DENSO

main83800-F5L50iNSP150..5F..G..A202009-202108

DENSO

main83800-F5L50iNSP151..GEN..(G,R);NSP150..LHD..GEN..R;NSP150..CVT..GEN..G202009-202109

DENSO

main83800-F5L51iNSP151..GEN..(G,R);NSP150..LHD..GEN..R;NSP150..CVT..GEN..G202109-202207

DENSO

83138GGLASS, COMBINATION METER

main83852-0DU40iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)201304

main83852-0DW60iNCP150,NSP151..TAIW201404-201802

main83852-0UV30iNSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201710-202108

main83852-0UV30iNSP151..CVT..D..A;NSP150..LHD..GEN..D;NSP150..RHD..(D,R)..A;NSP151..5F..(GEN,IDN)..D;NSP150..5F..GCC..R..(A,C);NSP150,151..CVT..GCC..(A,C)201710-202207

main83852-0UV30iNSP151..5F..E;NSP151..MA..(D,R);NSP150..D..(D,E,I)201710-202406

main83852-0UV60iNSP151..D..F201803-202101

main83852-0UY40iNSP151..(R,V)..F201803-202101

main83852-0UY60iNSP150..5F..G..A201708-202108

main83852-0UY60iNSP152..HTWCB;NSP151..IDN..R;NSP150..CVT..GEN..G..A;NSP150..LHD..GEN..R..A;NSP151..(GEN,TH)..(G,R)..A201708-202207

main83852-0UY60iNSP152..HTWC;NSP151..5F..D;NSP151..CVT..(D,E);NSP150..(G,R)..(D,I)201708-202406

main83852-0UY70iNSP151..D..G201804-201908

main83852-0UZ00iNSP151..(D,R)..H;NSP151..GEN..G..H201807-201910

PARAGUAY SPEC

main83852-0UZ80iNSP151..IDN..G201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main83852-0UZ80iNSP151..(MA,PKN)..(G,V)201801-202406

main83852-F5060iNSP151..(G,R,V)..G201804-201908

main83852-F5120iNSP151..(AGT,BZ)..(G,V)201807-201910

90167T0027

main90167-T0027

9356755020

main93567-55020¥70

4 parts on this diagram · 3 diagrams in section
