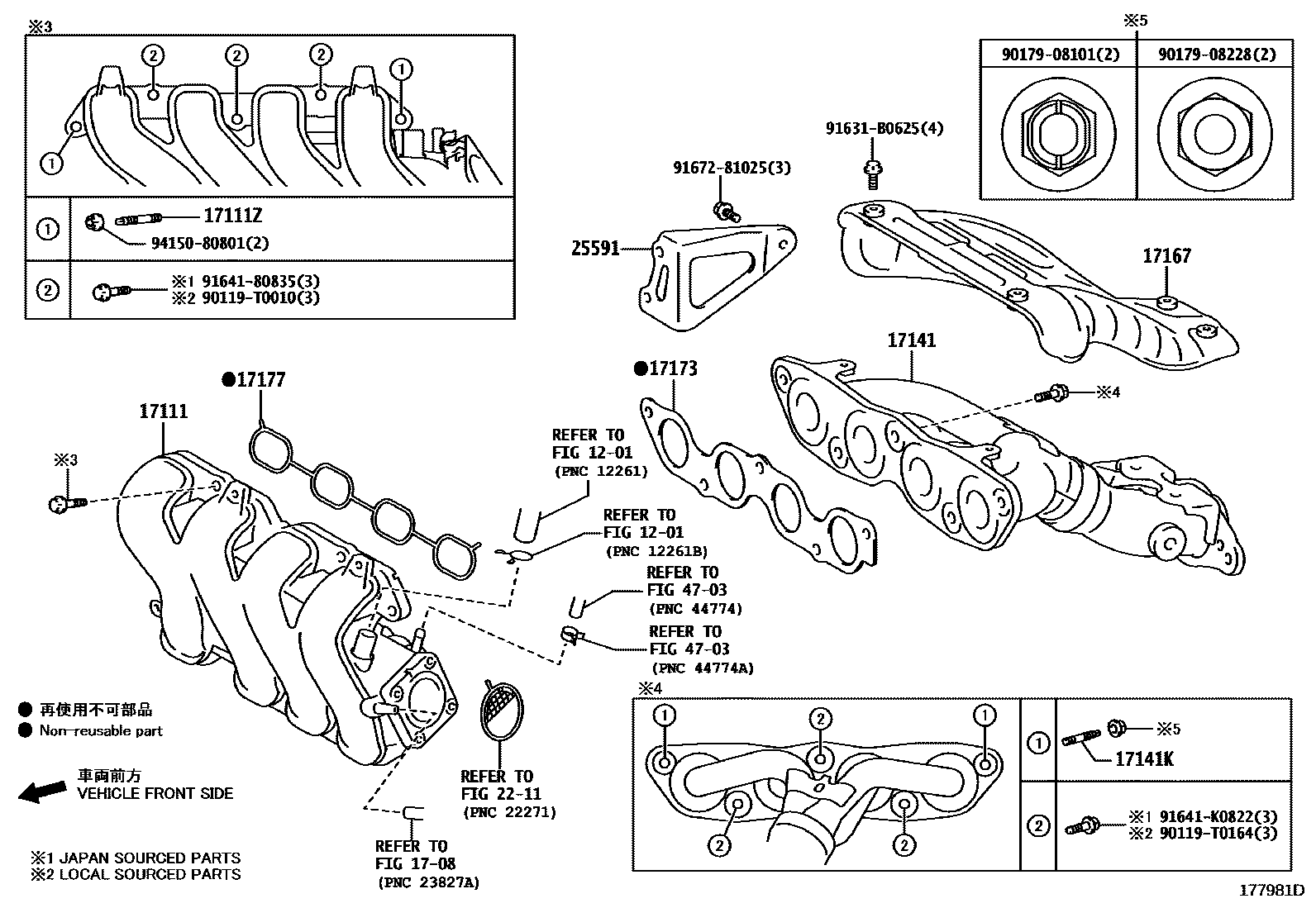

Toyota YARIS/VIOS/LIMO — MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

1201

1708

17111MANIFOLD, INTAKE

main17101-0M030i1NZFE..NCP150201304-201609

(L)

main17101-21080i1NZFE..NCP150¥14,100201304-201609

(J)

main17101-21090i2NZFE..NCP151¥14,100201307-201609

main17120-0Y040i3NRFKE..NSP152201911-202207

main17120-0Y050i2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C)201705-202105

*264,MARK17101-0Y050

sub17120-0Y051

main17120-0Y050i2NRFE..NSP151..MA201609-202011

*419

sub17120-0Y051

main17120-0Y050i2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP15#..GCC,GEN,IDN,MA,PH,TAIW,VN201604-201705

*264

sub17120-0Y051

main17120-0Y050i1NRFE,2NRFE..NSP150,151..I202003-202105

MARK 17101-0Y050

sub17120-0Y051

main17120-0Y051i1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D202105-202406

main17120-0Y060i2NRFE..NSP151..TH..B201705-202105

*264,MARK17101-0Y050

sub17120-0Y061

main17120-0Y060i2NRFE..NSP151..TH..B201604-201705

*264

sub17120-0Y061

main17120-0Y061i2NRFE..NSP151..TH..B202105

main17120-0Y070i2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C)201607-201812

*230 OR *432

sub17120-0Y071

main17120-0Y070i2NRFE..NSP151..F201708-202105

*230 OR *432,*264,MARK17101-0Y060

sub17120-0Y071

main17120-0Y070i2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C)201705-201812

*264,MARK17101-0Y060

sub17120-0Y071

main17120-0Y070i1NRFE,2NRFE..NSP150,151..I202003-202105

MARK 17101-0Y060

sub17120-0Y071

main17120-0Y071i1NRFE..NSP150..LHD..(G,R);2NRFE..NSP151..(G,R)..(A,C);1NRFE..NSP150..RHD..CVT..(G,R)..A;1NRFE,2NRFE..NSP150,151..5F..(GEN,IDN)..D;1NRFE,2NRFE..NSP150,151..CVT..(GCC202105-202207

*230 OR *432

main17120-0Y080i2NRFE..NSP151..TH..B201705-202105

*264,MARK17101-0Y060

sub17120-0Y081

main17120-0Y080i2NRFE..NSP151..TH..B201607-202105

*230 OR *432

sub17120-0Y081

main17120-0Y081i2NRFE..NSP151..TH..B202105

*230 OR *432

main17120-0Y100i3NRFE..NSP152201708-201910

main17120-0Y130i2NR#..NSP151..H201807-201910

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main9004A-12004i2NRFE..NSP151..MA201609-202011

*419

main90126-08026i1NZFE..NCP150¥210201304-201604

(J)

main90126-08026i2NZFE..NCP151¥210201307-201609

main90126-T0003i1NZFE..NCP150201304-201609

(L)

main90126-T0019i1NRFE,2NRFE..NSP150,151..B,C¥80201607

*230 OR *432

main90126-T0019i2NRFE..NSP151..F¥80201708-202207

*230 OR *432,*264

main90126-T0019i1NRFE,2NRFE..NSP150,151..B,C¥80201604-202207

*264

main90126-T0019i3NRFE..NSP152;1NRFE,2NR#..NSP150,151..H,I¥80201708-202406

17141MANIFOLD, EXHAUST

main17141-0M020i1NZFE..NCP150..IDN..B201304-201609

(L)

main17141-21130i1NZFE..NCP150..MA,VN201304-201609

(J)

main17141-21140i2NZFE..NCP151..(GCC,GEN)..B201307-201609

main17141-21210i1NZFE..NCP150..TAIW201404-201604

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037i1NZFE,2NZFE..NCP15#¥340201304-201609

main90126-08063i2NRFE..NSP151..MA¥80201609-202011

*419

main90126-08063i1NRFE,2NRFE..NSP150,151..B,C¥80201604-202207

*264

main90126-08063i1NRFE,2NRFE..NSP150,151..B,C¥80201607

*230 OR *432

main90126-08063i3NRFE..NSP152¥80201708-202406

main90126-08063i2NRFE..NSP151..F¥80201708-202207

*230 OR *432,*264

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0M020i1NZFE..NCP150201304-201609

(L)

main17167-0Y020i1NRFE,2NRFE..NSP150,151..B,C201604-202207

*264

main17167-0Y020i2NRFE..NSP151..MA201609-201812

*419

main17167-0Y020i1NRFE,2NRFE..NSP150,151..I202003-202406

main17167-0Y020i2NRFE..NSP151..MA201901-202011

*149

main17167-0Y040i2NR#..NSP151..H201807-201910

main17167-0Y050i2NRFE..NSP151..F201607-202207

*230 OR *432

main17167-0Y060i3NR#..NSP152201708-202112

main17167-0Y060i3NRFKE..NSP152202112-202207

(L)

main17167-21110i1NZFE..NCP150¥5,300201304-201604

(J)

main17167-21130i2NZFE..NCP151¥5,500201307-201609

main17167-47011i3NRFKE..NSP152¥3,600202112-202207

(J)

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0M010i1NZFE..NCP150..PH201403-201609

main17173-0M010i1NZFE..NCP150201304-201604

(L)

main17173-0M010i1NZFE..NCP150..(GCC,GEN,TH)..B201403-201603

CHILE SPEC,(L)

main17173-0Y030i1NRFE,2NRFE..NSP150,151..I202003-202406

main17173-0Y030i2NRFE..NSP151..TH..G..C201604-202207

*264

main17173-0Y030i2NRFE..NSP151..MA201609-202011

*419

main17173-0Y050i2NR#..NSP151..H201807-201910

main17173-0Y060i2NRFE..NSP151..TH..B201607-202207

*230 OR *432

main17173-21020i2NZFE..NCP151..(GCC,GEN)..B¥980201307-201609

main17173-21020i1NZFE..NCP150..TAIW¥980201404-201604

(J)

main17173-47021i3NR#..NSP152¥780201708-202207

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Y030i2NRFE..NSP151..F¥600201708-202207

*230 OR *432,*264

main17177-0Y030i2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C)¥600201604-201812

*264

main17177-0Y030i2NRFE..NSP151..TH..C;1NRFE,2NRFE..NSP150,151..(GCC,GEN,IDN,MA,PH,TAIW,VN)..(B,C)¥600201607-201812

*230 OR *432

main17177-0Y030i2NRFE..NSP151..MA¥600201609-202011

*419

main17177-0Y030i3NRFE..NSP152;1NRFE,2NRFE..NSP150,151..I¥600201708-202406

main17177-0Y060i2NRFE..NSP151..TH..B201604

*264

main17177-0Y060i2NRFE..NSP151..TH..B201607

*230 OR *432

main17177-21030i1NZFE,2NZFE..NCP15#¥820201304-201609

main17177-47060i2NR#..NSP151..H201807-201910

2211

25591BRACKET, MANIFOLD SUPPORT

main25591-0M020i1NZFE..NCP150..MA,VN201304-201609

(L)

main25591-0M030i1NZFE..NCP150..TAIW201404-201604

(L)

main25591-21060i1NZFE..NCP150..TAIW¥1,540201304-201609

(J)

main25591-21060i2NZFE..NCP151..C¥1,540201307-201609

4703

90119T0010

main90119-T0010

90119T0164

main90119-T0164

9017908101

main90179-08101¥90

9017908228

main90179-08228¥90

91631B0625

main91631-B0625¥60

9164180835

main91641-80835¥140

91641K0822

main91641-K0822¥80

9167281025

main91672-81025¥120

9415080801

main94150-80801¥80

21 parts on this diagram · 5 diagrams in section
