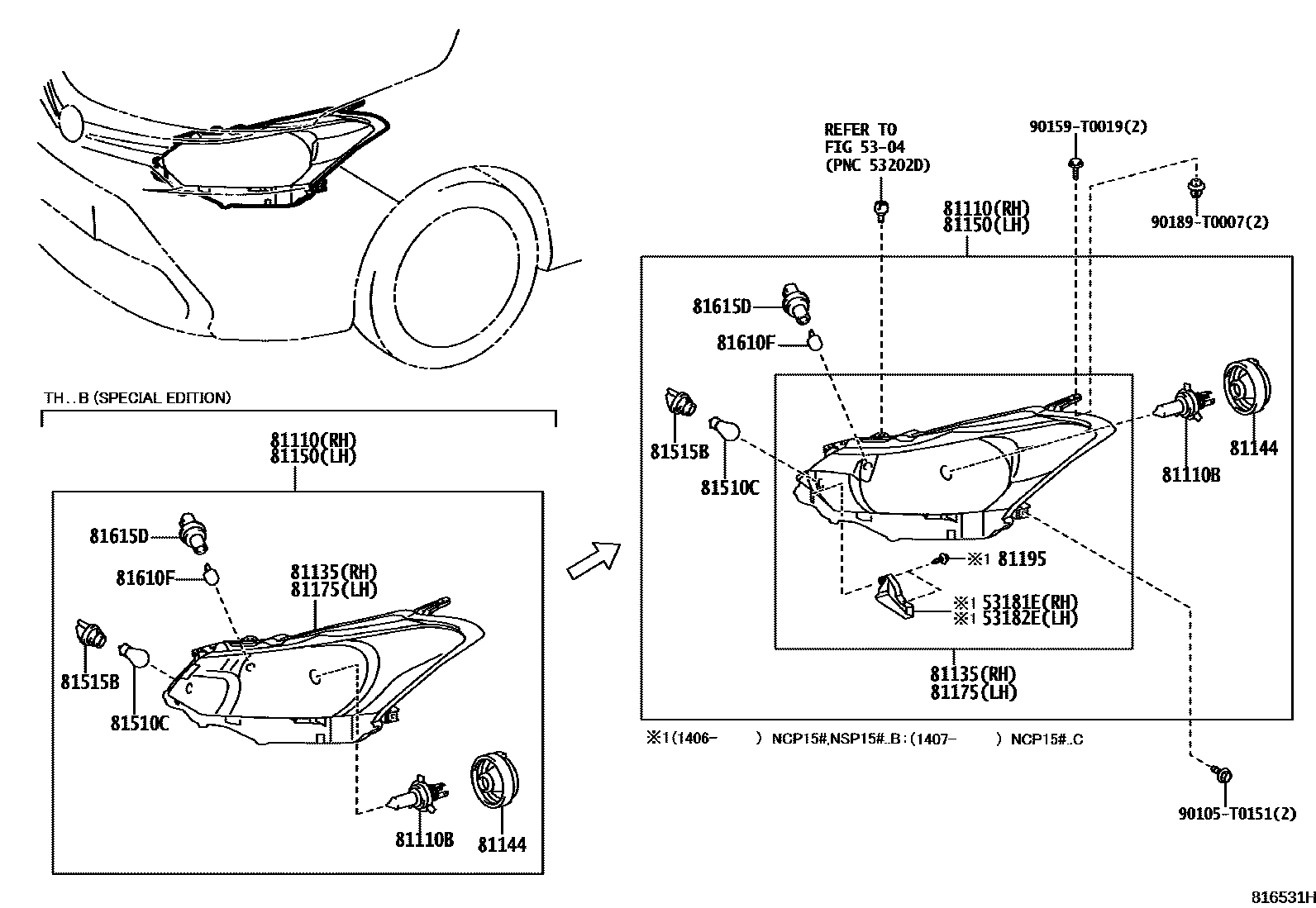

Toyota YARIS/VIOS/LIMO — HEADLAMP

0001 1HALOGEN(MULTI REFLECTOR TYPE)0005 1HALOGEN(MULTI REFLECTOR TYPE)0006 1HALOGEN(PROJECTOR TYPE) 0009 1HALOGEN(MULTI REFLECTOR TYPE)0015 1HALOGEN(PROJECTOR TYPE) 0020 1HALOGEN(MULTI REFLECTOR TYPE)0021 1HALOGEN(PROJECTOR TYPE) 0022 1HALOGEN(PROJECTOR TYPE) 0023 1HALOGEN(MULTI REFLECTOR TYPE)0024 1LED

5304

53181ECOVER, HEADLAMP, RH

main53181-0D010iNCP151..RHD..G;NSP150..RHD..B;NSP150..LHD..(D,R)..B;NCP151,NSP150..GCC..G..B;NCP150,NSP151..(GCC,GEN)..G..B;NCP15#,NSP151..(GCC,GEN,IDN,MA,PH,TH,VN)..(D,R)..B201406

main53181-0D020iNCP151,NSP150..C;NCP150,NSP151..(D,R)..C;NCP150,NSP151..GCC..G..C201407-201712

53182ECOVER, HEADLAMP, LH

main53182-0D010iNCP151..RHD..G;NSP150..RHD..B;NSP150..LHD..(D,R)..B;NCP151,NSP150..GCC..G..B;NCP150,NSP151..(GCC,GEN)..G..B;NCP15#,NSP151..(GCC,GEN,IDN,MA,PH,TH,VN)..(D,R)..B201406

main53182-0D020iNCP151,NSP150..C;NCP150,NSP151..(D,R)..C;NCP150,NSP151..GCC..G..C201407-201712

81110HEADLAMP ASSY, RH

main81110-0D560iNCP150..MA..(D,R)201310-201405

sub81110-0D561

main81110-0D561iNCP150,NSP151..MA..(D,R)201406-201812

main81110-0D570iNCP151..RHD;NCP150..(IDN,TH)..(D,R)..B201304-201405

sub81110-0D571

main81110-0D571iNCP151,NSP150..RHD..B;NCP150,NSP151..(IDN,TH)..(D,R)..B201406

main81110-0D580iNSP151..TAIW;NCP150..TAIW..(D,R)201404-201802

main81110-0D590iNCP150..VN..R;NCP151..GCC..G..B;NCP150..(GCC,GEN)..B;NCP151..LHD..(D,R)..B201307-201405

sub81110-0D591

main81110-0D591iNCP150,NSP151..VN..R;NCP151,NSP150..GCC..G..B;NCP150,NSP151..(GCC,GEN)..B;NCP151,NSP150..LHD..(D,R)..B201406-201807

main81110-0D600iNCP150..MA..G201310-201404

sub81110-0D601

main81110-0D601iNCP150,NSP151..MA..G201405-201812

main81110-0D740iNCP150..(IDN,TH)..G..B201304-201404

sub81110-0D741

main81110-0D741iNCP150,NSP151..(IDN,TH)..G..B201405

main81110-0D750iNCP150..(PH,VN)..G;NCP151..LHD..GEN..G201307-201404

sub81110-0D751

main81110-0D751iNCP150,NSP151..(PH,VN)..G;NCP151,NSP150..LHD..GEN..G..B201405-201807

main81110-0D760iNCP150..MA..V201310-201404

sub81110-0D761

main81110-0D761iNCP150,NSP151..MA..V201405-201812

main81110-0D770iNCP150..TH..V201304-201404

sub81110-0D771

main81110-0D771iNCP150,NSP151..TH..V201405

main81110-0D830iNCP150..RHD..(D,R)..C201312-201406

sub81110-0D831

main81110-0D831iNCP150,NSP151..RHD..(D,R)..C201407-201712

main81110-0D840iNCP15#..GCC..C201402-201406

sub81110-0D841

main81110-0D841iNCP15#,NSP150,151..GCC..C201407-201712

main81110-0D850iNCP150..RHD..G..C201312-201405

sub81110-0D851

main81110-0D851iNCP150,NSP151..RHD..G..C201406-201712

main81110-0DB60iNCP150..TAIW..V201404-201604

main81110-0DC40iNSP150,151..I202003-202406

main81110-0DF00iNSP151..TH..R..A201708-202008

sub81110-0DF01

main81110-0DF01iNSP151..TH..R..A202009-202207

main81110-0DF10iNSP150,152..RHD..(D,R)..A201708-202008

sub81110-0DF11

main81110-0DF11iNSP152202009-202207

BAHAMA SPEC

main81110-0DF11iNSP152202009-202207

ECO PACKAGE&MLM PACKAGE

main81110-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

sub81110-0DF31

main81110-0DF31iNSP150..5F..GCC..D..A202009-202207

main81110-0DF50iNSP151..MA..G201708-202207

main81110-0DF70iNSP150,151..LHD..(GEN,PH,VN)..G..(A,D,E)201710-202207

main81110-0DF80iNSP151..MA..V201901-201912

main81110-0DG10iNSP151..IDN..R201801-202207

main81110-0DG20iNSP151..5F..D..C202110-202207

main81110-0DG30iNSP150..5F..D..C201801-202207

main81110-0DG40iNSP151..IDN..G201801-202207

main81110-0DG80iNSP151..(D,R)..G201804-201908

main81110-0DG90iNSP151..(G,V)..G201804-201908

main81110-0DJ30iNSP151..D..F201803-202101

main81110-0DJ40iNSP151..(R,V)..F201803-202101

main81110-0DJ60iNSP150,151..RHD..CVT..GEN..G201710-202207

main81110-0DN40iNSP151..MA..G201912-202011

main81110-0DP20iNSP151..MA..V201912-202011

main81110-0DP90iNSP151..MA..(D,R)201912-202011

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iNSP151..A;NSP152..HTWCB;NSP151..GCC..C;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A¥2,000201708-202406

12V65W(SAE),60W(ECE)

main90981-13058iNCP151,NSP150..RHD..B;NCP151,NSP150..(GCC,PH,VN)..(B,C);NCP151,NSP150..LHD..GEN..(D,R)..B;NCP150,NSP151..(GCC,GEN)..G..(B,C);NCP150,NSP151..(GCC,GEN,IDN,MA,TH,VN)..¥2,000201304

12V 60/55W,HALOGEN

main90981-13091iNCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)¥3,540201304

12V 55W,HALOGEN

main90981-13099iNSP151..5F..D..C¥2,000201801-202207

12V 65W(SAE),60W(UN)

main90981-13100iNCP150,NSP151..TAIW201404-201802

12V 60/55W

sub90981-13058¥2,000

81135UNIT ASSY, HEADLAMP, RH

main81130-0D560iNCP150..MA..(D,R)201310-201406

sub81130-0D561

main81130-0D561iNCP150,NSP151..MA..(D,R)201406-201812

main81130-0D570iNCP151..RHD;NCP150..(IDN,TH)..(D,R)..B201304-201406

sub81130-0D571

main81130-0D571iNCP151,NSP150..RHD..B;NCP150,NSP151..(IDN,TH)..(D,R)..B201406

main81130-0D580iNSP151..TAIW;NCP150..TAIW..(D,R)201404-201802

main81130-0D590iNCP150..VN..R;NCP151..GCC..G..B;NCP150..(GCC,GEN)..B;NCP151..LHD..(D,R)..B201307-201406

sub81130-0D591

main81130-0D591iNCP150,NSP151..VN..R;NCP151,NSP150..GCC..G..B;NCP150,NSP151..(GCC,GEN)..B;NCP151,NSP150..LHD..(D,R)..B201406-201807

main81130-0D600iNCP150..MA..G201310-201405

sub81130-0D601

main81130-0D601iNCP150,NSP151..MA..G201405-201812

main81130-0D740iNCP150..(IDN,TH)..G..B201304-201405

sub81130-0D741

main81130-0D741iNCP150,NSP151..(IDN,TH)..G..B201405

main81130-0D750iNCP150..(PH,VN)..G;NCP151..LHD..GEN..G201307-201405

sub81130-0D751

main81130-0D751iNCP150,NSP151..(PH,VN)..G;NCP151,NSP150..LHD..GEN..G..B201405-201807

main81130-0D760iNCP150..MA..V201310-201405

sub81130-0D761

main81130-0D761iNCP150,NSP151..MA..V201405-201812

main81130-0D770iNCP150..TH..V201304-201405

sub81130-0D771

main81130-0D771iNCP150,NSP151..TH..V201405

main81130-0D830iNCP150..RHD..(D,R)..C201312-201407

sub81130-0D831

main81130-0D831iNCP150,NSP151..RHD..(D,R)..C201407-201712

main81130-0D840iNCP15#..GCC..C201402-201407

sub81130-0D841

main81130-0D841iNCP15#,NSP150,151..GCC..C201407-201712

main81130-0D850iNCP150..RHD..G..C201312-201406

sub81130-0D851

main81130-0D851iNCP150,NSP151..RHD..G..C201406-201712

main81130-0DB60iNCP150..TAIW..V201404-201604

main81130-0DF00iNSP151..MA..(D,R)201708-202009

sub81130-0DF01

main81130-0DF01iNSP151..TH..R..A202009-202207

main81130-0DF10iNSP150,152..RHD..(D,R)..A201708-202009

sub81130-0DF11

main81130-0DF11iNSP150,152..RHD..(D,R)..A202009-202207

ECO PACKAGE&MLM PACKAGE

main81130-0DF11iNSP150,152..RHD..(D,R)..A202009-202207

BAHAMA SPEC

main81130-0DF30iNSP151..GEN..R201710-202009

BAHAMA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81130-0DF31

main81130-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202009

ALGERIA SPEC&MLM PACKAGE

sub81130-0DF31

main81130-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202009

EGYPT SPEC&MLM PACKAGE

sub81130-0DF31

main81130-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202009

ECUADOR SPEC&MLM PACKAGE

sub81130-0DF31

main81130-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202009

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81130-0DF31

main81130-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202009

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81130-0DF31

main81130-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202009

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81130-0DF31

main81130-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202009

PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81130-0DF31

main81130-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202009

BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81130-0DF31

main81130-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202009

MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81130-0DF31

main81130-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202009

COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81130-0DF31

main81130-0DF31iNSP150..5F..GCC..D..A202009-202207

main81130-0DF50iNSP151..MA..G201708-202207

main81130-0DF70iNSP150,151..LHD..(GEN,PH,VN)..G..(A,D,E)201710-202207

main81130-0DF80iNSP151..MA..V201901-201912

main81130-0DG10iNSP151..IDN..R201801-202207

main81130-0DG20iNSP151..5F..D..C202110-202207

main81130-0DG30iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main81130-0DG40iNSP151..IDN..G201801-202207

main81130-0DG80iNSP151..(D,R)..G201804-201908

main81130-0DG90iNSP151..(G,V)..G201804-201908

main81130-0DJ00iNSP151..BZ..(D,G)201807-201910

PARAGUAY SPEC

main81130-0DJ10iNSP151..V..H;NSP151..AGT..G201807-201910

main81130-0DJ30iNSP151..D..F201803-202101

main81130-0DJ40iNSP151..(R,V)..F201803-202101

main81130-0DJ60iNSP150,151..RHD..CVT..GEN..G201710-202207

main81130-0DL00iNSP151..AGT..R;NSP151..BZ..(D,G,R)201807-201910

main81130-0DN40iNSP151..MA..G201912-202011

main81130-0DP20iNSP151..MA..V201912-202011

main81130-0DP90iNSP151..MA..(D,R)201912-202011

81144COVER, HEADLAMP, NO.1

main90069-81095iNCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..B201304

main90069-81097iNCP150,NSP151..RHD..G..C201312-201712

main90075-65002iNCP151,NSP150..RHD..B;NCP151,NSP150..(GCC,PH,VN)..(B,C);NCP151,NSP150..LHD..GEN..(D,R)..B;NCP150,NSP151..(GCC,GEN)..G..(B,C);NCP150,NSP151..(GCC,GEN,IDN,MA,TH,VN)..¥670201304

main90075-65006iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)¥460201708-202207

main90075-8C003iNCP150,NSP151..TAIW201404-201802

81150HEADLAMP ASSY, LH

main81150-0D560iNCP150..MA..(D,R)201310-201405

sub81150-0D561

main81150-0D561iNCP150,NSP151..MA..(D,R)201406-201812

main81150-0D570iNCP151..RHD;NCP150..(IDN,TH)..(D,R)..B201304-201405

sub81150-0D571

main81150-0D571iNCP151,NSP150..RHD..B;NCP150,NSP151..(IDN,TH)..(D,R)..B201406

main81150-0D580iNSP151..TAIW;NCP150..TAIW..(D,R)201404-201802

main81150-0D590iNCP150..VN..R;NCP151..GCC..G..B;NCP150..(GCC,GEN)..B;NCP151..LHD..(D,R)..B201307-201405

sub81150-0D591

main81150-0D591iNCP150,NSP151..VN..R;NCP151,NSP150..GCC..G..B;NCP150,NSP151..(GCC,GEN)..B;NCP151,NSP150..LHD..(D,R)..B201406-201807

main81150-0D600iNCP150..MA..G201310-201404

sub81150-0D601

main81150-0D601iNCP150,NSP151..MA..G201405-201812

main81150-0D740iNCP150..(IDN,TH)..G..B201304-201404

sub81150-0D741

main81150-0D741iNCP150,NSP151..(IDN,TH)..G..B201405

main81150-0D750iNCP150..(PH,VN)..G;NCP151..LHD..GEN..G201307-201404

sub81150-0D751

main81150-0D751iNCP150,NSP151..(PH,VN)..G;NCP151,NSP150..LHD..GEN..G..B201405-201807

main81150-0D760iNCP150..MA..V201310-201404

sub81150-0D761

main81150-0D761iNCP150,NSP151..MA..V201405-201812

main81150-0D770iNCP150..TH..V201304-201404

sub81150-0D771

main81150-0D771iNCP150,NSP151..TH..V201405

main81150-0D830iNCP150..RHD..(D,R)..C201312-201406

sub81150-0D831

main81150-0D831iNCP150,NSP151..RHD..(D,R)..C201407-201712

main81150-0D840iNCP15#..GCC..C201402-201406

sub81150-0D841

main81150-0D841iNCP15#,NSP150,151..GCC..C201407-201712

main81150-0D850iNCP150..RHD..G..C201312-201405

sub81150-0D851

main81150-0D851iNCP150,NSP151..RHD..G..C201406-201712

main81150-0DB60iNCP150..TAIW..V201404-201604

main81150-0DC40iNSP150,151..I202003-202406

main81150-0DF00iNSP151..MA..(D,R)201708-202008

sub81150-0DF01

main81150-0DF01iNSP151..TH..R..A202009-202207

main81150-0DF10iNSP150,152..RHD..(D,R)..A201708-202008

sub81150-0DF11

main81150-0DF11iNSP150..LHD..CVT..GEN..R202009-202207

ECO PACKAGE&MLM PACKAGE

main81150-0DF11iNSP152202009-202207

BAHAMA SPEC

main81150-0DF30iNSP151..GEN..R201710-202008

MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81150-0DF31

main81150-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

ALGERIA SPEC&MLM PACKAGE

sub81150-0DF31

main81150-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

EGYPT SPEC&MLM PACKAGE

sub81150-0DF31

main81150-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

ECUADOR SPEC&MLM PACKAGE

sub81150-0DF31

main81150-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81150-0DF31

main81150-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81150-0DF31

main81150-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81150-0DF31

main81150-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81150-0DF31

main81150-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

BAHAMA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81150-0DF31

main81150-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81150-0DF31

main81150-0DF30iNSP150,151..GCC..G..A;NSP150,151..LHD..(D,R)..(A,D,E)201710-202008

COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81150-0DF31

main81150-0DF31iNSP150..LHD..R..A;NSP150..LHD..GEN..D;NSP151..LHD..(D,R)..A;NSP150,151..CVT..GCC..(D,G)..A202009-202207

main81150-0DF50iNSP151..MA..G201708-202207

main81150-0DF70iNSP150,151..LHD..(GEN,PH,VN)..G..(A,D,E)201710-202207

main81150-0DF80iNSP151..MA..V201901-201912

main81150-0DG10iNSP151..5F..D..C201801-202207

main81150-0DG20iNSP151..5F..D..C202110-202207

main81150-0DG30iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main81150-0DG40iNSP151..IDN..G201801-202207

main81150-0DG80iNSP151..(D,R)..G201804-201908

main81150-0DG90iNSP151..(G,V)..G201804-201908

main81150-0DJ30iNSP151..D..F201803-202101

main81150-0DJ40iNSP151..(R,V)..F201803-202101

main81150-0DJ60iNSP150,151..RHD..CVT..GEN..G201710-202207

main81150-0DN40iNSP151..MA..G201912-202011

main81150-0DP20iNSP151..MA..V201912-202011

main81150-0DP90iNSP151..MA..(D,R)201912-202011

81175UNIT ASSY, HEADLAMP, LH

main81170-0D560iNCP150..MA..(D,R)201310-201406

sub81170-0D561

main81170-0D561iNCP150,NSP151..MA..(D,R)201406-201812

main81170-0D570iNCP151..RHD;NCP150..(IDN,TH)..(D,R)..B201304-201406

sub81170-0D571

main81170-0D571iNCP151,NSP150..RHD..B;NCP150,NSP151..(IDN,TH)..(D,R)..B201406

main81170-0D580iNSP151..TAIW;NCP150..TAIW..(D,R)201404-201802

main81170-0D590iNCP150..VN..R;NCP151..GCC..G..B;NCP150..(GCC,GEN)..B;NCP151..LHD..(D,R)..B201307-201406

sub81170-0D591

main81170-0D591iNCP150,NSP151..VN..R;NCP151,NSP150..GCC..G..B;NCP150,NSP151..(GCC,GEN)..B;NCP151,NSP150..LHD..(D,R)..B201406-201807

main81170-0D600iNCP150..MA..G201310-201405

sub81170-0D601

main81170-0D601iNCP150,NSP151..MA..G201405-201812

main81170-0D740iNCP150..(IDN,TH)..G..B201304-201405

sub81170-0D741

main81170-0D741iNCP150,NSP151..(IDN,TH)..G..B201405

main81170-0D750iNCP150..(PH,VN)..G;NCP151..LHD..GEN..G201307-201405

sub81170-0D751

main81170-0D751iNCP150,NSP151..(PH,VN)..G;NCP151,NSP150..LHD..GEN..G..B201405-201807

main81170-0D760iNCP150..MA..V201310-201405

sub81170-0D761

main81170-0D761iNCP150,NSP151..MA..V201405-201812

main81170-0D770iNCP150..TH..V201304-201405

sub81170-0D771

main81170-0D771iNCP150,NSP151..TH..V201405

main81170-0D830iNCP150..RHD..(D,R)..C201312-201407

sub81170-0D831

main81170-0D831iNCP150,NSP151..RHD..(D,R)..C201407-201712

main81170-0D840iNCP15#..GCC..C201402-201407

sub81170-0D841

main81170-0D841iNCP15#,NSP150,151..GCC..C201407-201712

main81170-0D850iNCP150..RHD..G..C201312-201406

sub81170-0D851

main81170-0D851iNCP150,NSP151..RHD..G..C201406-201712

main81170-0DB60iNCP150..TAIW..V201404-201604

main81170-0DF00iNSP151..TH..R..A201708-202009

sub81170-0DF01

main81170-0DF01iNSP151..TH..R..A202009-202207

main81170-0DF10iNSP150,152..RHD..(D,R)..A201708-202009

sub81170-0DF11

main81170-0DF11iNSP150,152..RHD..(D,R)..A202009-202207

ECO PACKAGE&MLM PACKAGE

main81170-0DF11iNSP150,152..RHD..(D,R)..A202009-202207

BAHAMA SPEC

main81170-0DF30iNSP151..GEN..R201710-202009

ALGERIA SPEC&MLM PACKAGE

sub81170-0DF31

main81170-0DF30iNSP151..GEN..R201710-202009

EGYPT SPEC&MLM PACKAGE

sub81170-0DF31

main81170-0DF30iNSP151..GEN..R201710-202009

ECUADOR SPEC&MLM PACKAGE

sub81170-0DF31

main81170-0DF30iNSP151..GEN..R201710-202009

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81170-0DF31

main81170-0DF30iNSP151..GEN..R201710-202009

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81170-0DF31

main81170-0DF30iNSP151..GEN..R201710-202009

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81170-0DF31

main81170-0DF30iNSP151..GEN..R201710-202009

PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81170-0DF31

main81170-0DF30iNSP151..GEN..R201710-202009

BAHAMA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81170-0DF31

main81170-0DF30iNSP151..GEN..R201710-202009

BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81170-0DF31

main81170-0DF30iNSP151..GEN..R201710-202009

MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81170-0DF31

main81170-0DF30iNSP151..GEN..R201710-202009

COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE

sub81170-0DF31

main81170-0DF31iNSP150..5F..GCC..D..A202009-202207

main81170-0DF50iNSP151..MA..G201708-202207

main81170-0DF70iNSP150,151..LHD..(GEN,PH,VN)..G..(A,D,E)201710-202207

main81170-0DF80iNSP151..MA..V201901-201912

main81170-0DG10iNSP151..IDN..R201801-202207

main81170-0DG20iNSP151..5F..D..C202110-202207

main81170-0DG30iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main81170-0DG40iNSP151..IDN..G201801-202207

main81170-0DG80iNSP151..(D,R)..G201804-201908

main81170-0DG90iNSP151..(G,V)..G201804-201908

main81170-0DJ00iNSP151..BZ..(D,G)201807-201910

PARAGUAY SPEC

main81170-0DJ10iNSP151..V..H;NSP151..AGT..G201807-201910

main81170-0DJ30iNSP151..D..F201803-202101

main81170-0DJ40iNSP151..(R,V)..F201803-202101

main81170-0DJ60iNSP150..5F..G..A201710-202207

main81170-0DL00iNSP151..AGT..R;NSP151..BZ..(D,G,R)201807-201910

main81170-0DN40iNSP151..MA..G201912-202011

main81170-0DP20iNSP151..MA..V201912-202011

main81170-0DP90iNSP151..MA..(D,R)201912-202011

81195SCREW, HEADLAMP

main90075-02051iNCP151..RHD..G;NSP150..RHD..B;NCP151..GCC..G..B;NCP150..(GCC,GEN)..G..B;NSP150..(GCC,PH,VN)..(B,C);NSP150..LHD..GEN..(D,R)..B;NSP151..(GCC,GEN)..G..(B,C);NCP15#..(G¥60201406

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iNSP152..HTWC;NSP150,151..D,E,G,H,I¥300201708-202406

12V 21W,AMBER

main90981-15028iNCP15#,NSP150,151..B,C¥350201304

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iNSP151..MA¥610201708-202207

main90075-60069iNCP15#,NSP150,151..B,C¥1,000201304

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069iNCP15#,NSP150,151..B¥110201304-202406

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iNSP151..D..F¥610201304-202101

main90075-60089iNSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)¥610201708-202207

90105T0151

main90105-T0151¥60

90159T0019

main90159-T0019

90189T0007

main90189-T0007

17 parts on this diagram · 10 diagrams in section
