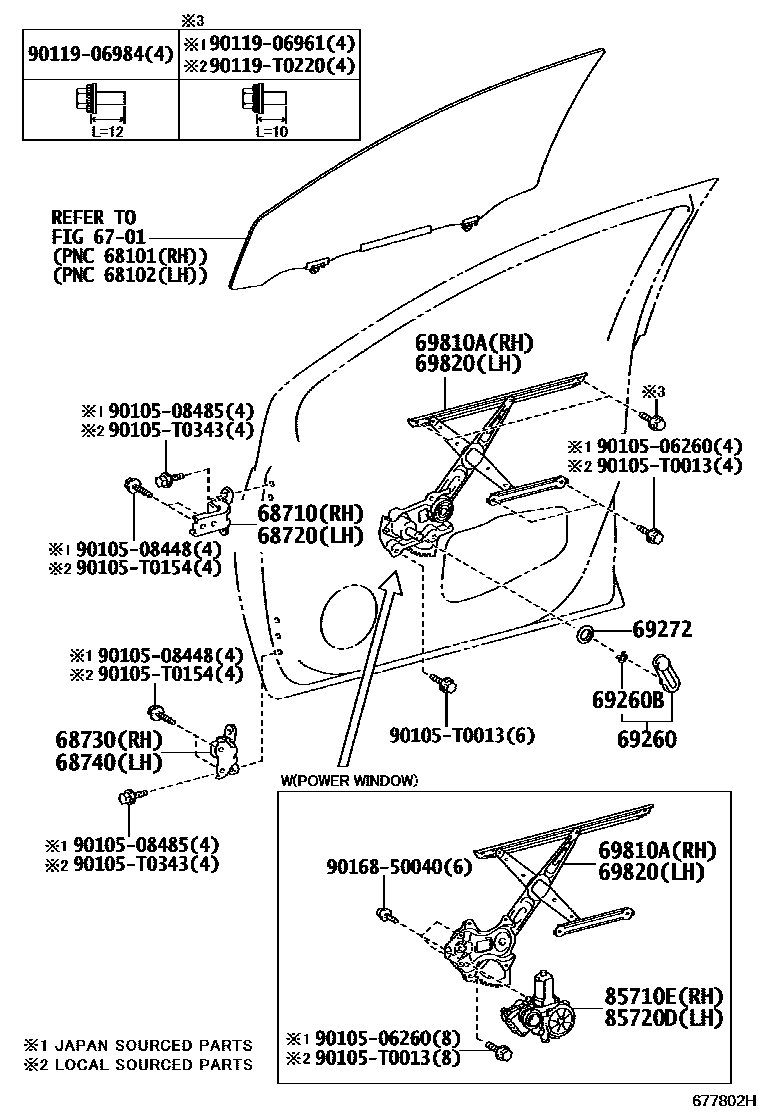

Toyota YARIS/VIOS/LIMO — FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02080iNSP151..G201804-201908

main68710-0D050iNCP15#..MA,VN¥2,030201304-202207

main68710-0K020iNCP15#..C201312-202207

main68710-12151iNSP150,151..H,I¥2,050201807-202406

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02080iNSP151..G201804-201908

main68720-0D050iNSP150..5F..G..A;NSP150..5F..GCC..D..A¥2,030201304-202207

main68720-0K020iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main68720-12151iNSP150,151..H,I¥2,050201807-202406

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02090iNSP151..G201804-201908

main68730-02100iNCP150..IDN..B201304-202406

main68730-02110iNSP151..H201807-201910

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02090iNSP151..G201804-201908

main68740-02100iNCP150..TAIW201304-202406

main68740-02110iNSP151..H201807-201910

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0D060iNCP150..IDN..D201304-201712

main69260-0D060-A0iNCP15#..5F..GEN..D201308-201709

J-LO PACKAGE(FOR LATIN AMERICA),IVORY,TRIM0#

main69260-0D060-A0iNCP151..GCC..D..B201308-201709

IVORY,TRIM0#

main69260-0D060-C0iNSP150,151..5F..GEN..D201308-201709

J-LO PACKAGE(FOR LATIN AMERICA),BLACK,TRIM2#

main69260-0D060-C0iNCP151..GCC..D..B201308-201709

BLACK,TRIM2#

main69260-0D080-A0iNSP150..D..C201402-201712

IVORY,TRIM0#

main69260-0D080-C0iNSP150,151..(GCC,IDN)..D..C201312-201712

BLACK,TRIM2#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iNCP151..GCC..D..B¥160201304-201712

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-0D050iNCP150..IDN..D..B201304-201712

main69268-0D060iNSP150,151..(GCC,IDN)..D..C201312-201712

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-0D180iNSP151..TH..B201304-201812

main69801-0D200iNSP151..F201404-202101

main69801-0D220iNCP15#..(G,R)..C;NCP150..TH..D..C201312-201712

main69801-0D330iNSP150,151..I202003-202406

main69801-0D350iNSP151..TH..A;NSP150,152..A,E;NSP151..(GCC,GEN,MA,VN)..(A,B,E)201911-202001

sub69801-0K140¥4,250

main69801-0D351iNSP150..5F..G..A;NSP150..5F..GCC..D..A202103-202207

main69801-0K140iNSP150,152..A;NSP151..TH..A;NSP151..(GCC,GEN,MA)..(A,B)¥4,250201708-202103

main69801-0K170iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main69801-0K180iNSP151..G201804-201908

main69810-0D370iNCP150..IDN..D..B201304-201712

main69810-0D400iNSP150,151..(GCC,IDN)..D..C201312-201712

main69810-0D510iNSP151..D..H;NSP151..AGT..R201807-201910

main69810-0D520iNSP151..AGT..G;NSP151..(BZ,GEN)..(G,R,V)..H201807-201910

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-0D190iNSP151..MA201304-201812

main69802-0D220iNCP15#..(G,R)..C;NCP150..TH..D..C201312-201712

main69802-0D310iNSP150,151..I202003-202406

main69802-0D330iNSP151..TH..A;NSP150,152..A,E;NSP151..(GCC,GEN,MA,TAIW,VN)..(A,B,E,F)201911-202001

sub69802-0K140¥4,250

main69802-0D331iNSP150..5F..G..A;NSP150..5F..GCC..D..A202103-202207

main69802-0K140iNSP151..F¥4,250201708-202103

main69802-0K170iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main69802-0K180iNSP151..G201804-201908

main69820-0D380iNSP150..GCC..D..B201304-201712

main69820-0D410iNCP15#..(GCC,IDN)..D..C201312-201712

main69820-0D500iNSP151..AGT..G;NSP151..(BZ,GEN)..(G,R,V)..H201807-201910

main69820-0D560iNSP151..D..H;NSP151..AGT..R201807-201910

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-06090iNCP150..TAIW201404-201406

main85710-0D201iNCP15#..VN201407-201807

main85710-0D210iNCP151..RHD;NCP150..(MA,TH)..D;NCP150..RHD..(G,R,V)201304-201406

main85710-0D211iNSP150..RHD201407-201812

main85710-0D250iNSP151..MA201502-202406

main85710-0D261iNSP151..TAIW201407-201802

main85710-0D380iNSP151..F201803-202101

main85710-0D560iNSP151..TH..A;NSP150,152..RHD;NSP151..RHD..(GEN,MA)201911-202207

main85710-0D570iNSP150,151..E201911-202207

main85710-0K010iNCP15#..GCC..(G,R)..C201307-201712

main85710-0K180iNSP150..D;NSP150..CVT..C;NSP150..5F..R..C;NSP151..LHD..(C,D)¥15,900201710-202207

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D241iNCP15#..RHD..(GEN,TH)..B201407-201812

main85720-0D250iNCP151..LHD..(G,R);NCP150..GCC,GEN,PH,VN;NCP151..LHD..(GEN,PH,VN)..D201307-201406

sub85720-0D251

main85720-0D251iNSP150,151..PH201407-201807

main85720-0D290iNSP150,151..LHD..(A,E)201502-202207

main85720-0D320iNSP151..F201404-202101

main85720-0D321iNCP150..TAIW201407-201802

main85720-0D330iNSP151..G201804-201908

main85720-0D570iNSP15#..RHD..CVT..A201911-202207

main85720-0D590iNSP151..LHD..A;NSP150..LHD..GEN..D;NSP150..LHD..(G,R)..A;NSP150..CVT..GCC..D..A201911-202207

main85720-0D600iNSP151..F201911-202001

main85720-0K010iNSP151..TH..G..C201304-201712

main85720-0K180iNSP151..MA¥15,900201708-202406

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

90105T0013

main90105-T0013¥60

90105T0154

main90105-T0154

90105T0343

main90105-T0343

9011906961

main90119-06961¥60

9011906984

main90119-06984¥60

90119T0220

main90119-T0220

9016850040

main90168-50040¥70

22 parts on this diagram · 2 diagrams in section
