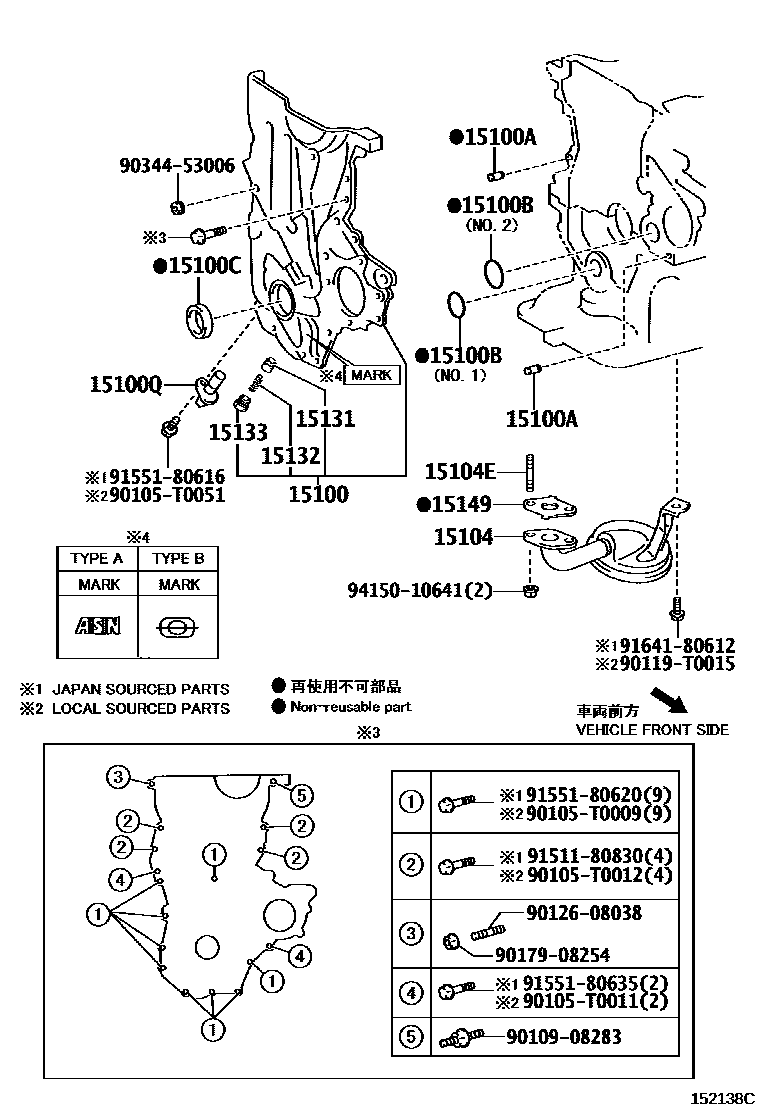

Toyota YARIS/VIOS/LIMO — ENGINE OIL PUMP
15100PUMP ASSY, OIL
(L),TYPE A:REF ILL.
TYPE B:REFER ILLUST.
(J),TYPE A:REF ILL.
TYPE A:REFER ILLUST.
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
(J),NO.2:SEE ILLUST
NO.2:REFER ILLUST.
(J),NO.1:SEE ILLUST
NO.1:REFER ILLUST.
(L),NO.2:SEE ILLUST
(L),NO.1:SEE ILLUST
main90301-T0058i1NRFE..NSP150..GCC;2NRFE..NSP151..(D,R)..C;2NRFE..NSP151..GCC..R..B;2NRFE..NSP151..(GCC,IDN)..G201607-202207
*230 OR *432
*264
*419
15100CSEAL(FOR OIL PUMP)
(J)
(L)
15100QSENSOR, CRANK POSITION
15104STRAINER SUB-ASSY, OIL
(L)
(L)
main15104-0Y010i1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NRFE..NSP151..LHD..CVT..GEN..A;2NRFE..NSP151..RHD..(GEN,IND,MA);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE201607-202207
*230 OR *432
*264
*419
*230 OR *432,*264
(J)
15104EBOLT, STUD(FOR OIL STRAINER)
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
(L)
(J)
15133PLUG, OIL PUMP RELIEF VALVE
PNC 15100=TYPE B
PNC 15100=TYPE A
15149GASKET, OIL STRAINER FLANGE
(L)
(J)
90105T0009
main90105-T0009
90105T0011
main90105-T0011
90105T0012
main90105-T0012
90105T0051
main90105-T0051
9010908283
90119T0015
main90119-T0015
9012608038
9017908254
9034453006
9151180830
9155180616
9155180620
9155180635
9164180612
9415010641
26 parts on this diagram · 3 diagrams in section
