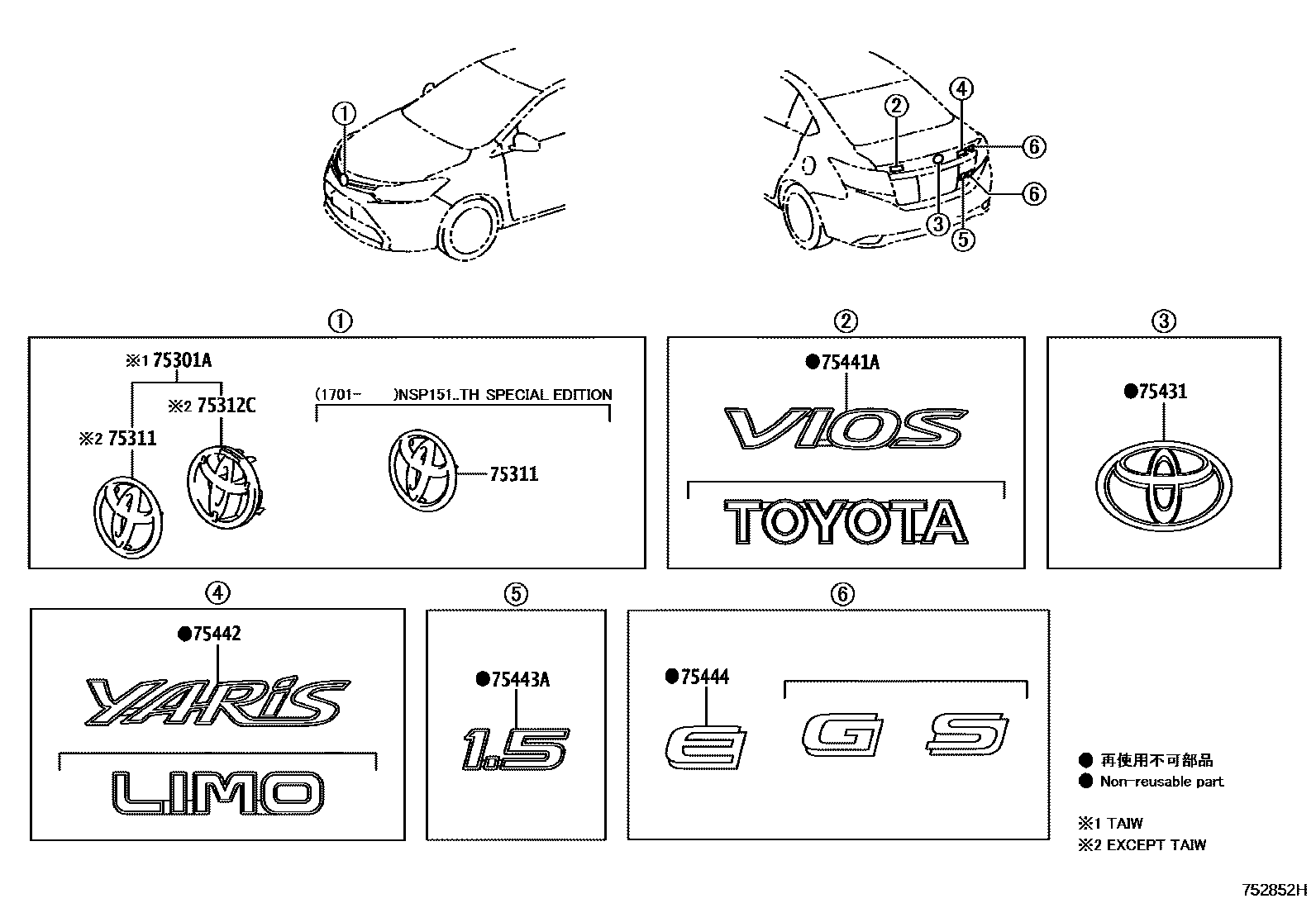

Toyota YARIS/VIOS/LIMO — EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0005 1

75301AEMBLEM SUB-ASSY, FRONT BUMPER

main75301-0D090iNSP151..TAIW201404-201802

main75301-0D090iNCP150..TAIW201404-201604

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-T2008iNSP151..F201708-202101

main90975-T2008iNSP152..HTWC;NSP150,151..D,E,G,H,I201708-202406

main90975-T2008iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C201708-202207

main90975-T2008iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201708-202108

main90975-T2008iNCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..(B,C)201304

main90975-T2009iNCP150,NSP151..MA201310-201812

main90975-T2009iNSP151..MA201901-202011

75312CBASE, FRONT BUMPER EMBLEM

main75312-0D080iNCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..(B,C)201304

main75312-0D110iNCP150,NSP151..MA201310-201812

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75431-02090iNSP152..HTWC;NSP150..D,E,I;NSP151..AGT,BZ,IND,MA,PKN;NSP151..(GEN,PH,VN)..(D,E,H)201708-202406

82 X 120

main75431-02090iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201708-202108

82 X 120

main75431-02090iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C201708-202207

82 X 120

main75431-02090iNSP151..F201708-202101

82 X 120

main90975-02063iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)¥1,940201708-202108

96 X 140

main90975-02063iNSP152..HTWC;NSP150..D,E,I;NSP151..AGT,BZ,IND,MA,PKN;NSP151..(GEN,PH,VN)..(D,E,H)¥1,940201708-202406

96 X 140

main90975-02063iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C¥1,940201708-202207

96 X 140

main90975-02063iNSP151..F¥1,940201708-202101

96 X 140

main90975-T2006iNSP150,151..PH201304-201806

main90975-T2006iNCP150..IDN..B201304-201506

main90975-T2006iNCP15#..(GCC,GEN,TH)..B201304-201603

main90975-T2006iNCP150..TAIW201304-201604

main90975-T2006iNCP15#..PH201304-201606

main90975-T2006iNCP15#..MA,VN201304-201608

main90975-T2006iNCP15#..C201304-201609

main90975-T2006iNSP151..TH..G..C201304-201707

main90975-T2006iNSP150,151..GEN201304-201709

main90975-T2006iNSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G201304-201712

main90975-T2006iNSP151..TAIW201304-201802

main90975-T2006iNSP150,151..VN201304-201807

main90975-T2006iNSP151..MA201304-201812

main90975-T2006iNSP151..TH..B201304

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75442-0D190iNCP150..TH..B201304-201603

main75442-0D190iNCP150..IDN..(G,R)..B201304-201506

main75442-0D190iNSP151..VN201304-201807

main75442-0D190iNCP150..TAIW201304-201604

main75442-0D190iNCP15#..PH201304-201606

main75442-0D190iNCP15#..VN201304-201608

main75442-0D190iNSP150,151..PH201304-201806

main75442-0D190iNSP151..TAIW201304-201802

main75442-0D190iNSP151..TH..B201304

main75442-0D240iNSP151..MA201310-201812

main75442-0D240iNCP150..MA201310-201608

main75442-0D250iNSP151..TH..G..C201312-201707

main75442-0D250iNSP151..IDN..G;NSP151..TH..D..C;NSP151..RHD..R..C201312-201712

main75442-0D250iNCP150..TH..D..C;NCP150..RHD..(G,R)..C201312-201609

main75447-0D130iNSP150,151..GEN201308-201709

main75447-0D130iNCP15#..(GCC,GEN)..B201308-201603

main75447-0D130iNSP150,151..GCC..B201308-201712

main75447-0D160iNSP150,151..GCC..C201402-201712

main75447-0D160iNCP15#..GCC..C201402-201609

main75447-0D210iNSP150..CVT..A;NSP150..LHD..5F..GEN;NSP151..(GCC,GEN)..A;NSP150..5F..GCC..R..A201710-202207

main75447-0D210iNSP150..5F..G..A;NSP150..5F..GCC..D..A201710-202108

main75447-0D220iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main75447-0D220iNSP150..5F..D..C201801-202108

main75447-0D230iNSP151..H201807-201910

main75447-0D270iNSP150,151..I202003-202406

TOYOTA

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-0D200iNSP150,151..GEN201308-201709

YARIS

main75442-0D200iNCP15#..(GCC,GEN)..B201308-201603

YARIS

main75442-0D200iNSP150,151..GCC..B201308-201712

YARIS

main75442-0D260iNSP150,151..GCC..C201402-201712

YARIS

main75442-0D260iNCP15#..GCC..C201402-201609

YARIS

main75442-0D340iNSP150,151..I202003-202406

YARIS

main75442-0D390iNSP150..CVT..A;NSP150..LHD..5F..GEN;NSP151..(GCC,GEN)..A;NSP150..5F..GCC..R..A201710-202207

YARIS

main75442-0D390iNSP150..5F..G..A;NSP150..5F..GCC..D..A201710-202108

YARIS

main75442-0D400iNSP151..F201708-202101

VIOS

main75442-0D400iNSP150..D;NSP151..(PH,TH,VN)..(A,D,E)201708-202207

VIOS

main75442-0D410iNSP152201708-202207

YARIS

main75442-0D420iNSP150..5F..D..C201801-202108

YARIS

main75442-0D420iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

YARIS

main75442-0D430iNSP151..5F..D..C202109-202207

VIOS

main75442-0D430iNSP151..IDN..(G,R)201801-202207

VIOS

main75442-0D440iNSP151..MA201901-202011

VIOS

main75442-0D450iNSP151..G201804-201908

YARIS

main75442-0D460iNSP151..H201807-201910

YARIS

main75444-0D060iNCP150..IDN..D..B201304-201506

LIMO

main75444-0D060iNSP150..VN201304-201807

LIMO

main75444-0D530iNSP151..IDN..D201312-201712

LIMO

main75444-0D530iNCP150..IDN..D..C201312-201609

LIMO

main75444-0D860iNSP151..CVT..D..C201801-202108

LIMO

main75444-0D860iNSP150,151..5F..(IDN,VN)..D..(C,E)201801-202109

LIMO

75443PLATE, BACK DOOR NAME, NO.3

main75471-0D270iNSP151..GCC..R..A201801-202009

1.5

main75471-0D270iNSP151..GCC..G..A201801-202207

1.5

main75471-0D280iNSP151..GCC..R..C201801-202009

1.5

main75471-0D280iNSP151..GCC..G..C201801-202207

1.5

main75471-0D290iNSP151..G201804-201908

1.5

main75471-0D310iNSP151..I202003-202406

1.5

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75471-0D260iNCP150..GCC..C201402-201609

1.5

main75471-0D260iNSP151..GCC..C201402-201712

1.5

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-0D340iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..R..B201304

E

main75444-0D350iNCP15#,NSP150,151..G..B201304

G

main75444-0D360iNCP150,NSP151..V..B201304

S

main75444-0D460iNCP15#,NSP150,151..R..C201312-201712

E

main75444-0D470iNCP15#,NSP150,151..G..C201312-201712

G

main75444-0D690iNSP152..HTWC;NSP151..MA..R;NSP150,151..(GEN,PH,TH,VN)..R..(A,D,E)201708-202207

E

main75444-0D690iNSP150,151..GCC..R..A201708-202009

E

main75444-0D700iNSP150..CVT..G..A;NSP151..LHD..GEN..G..A;NSP151..RHD..(GEN,MA)..G;NSP151..(GCC,PH,TH,VN)..G..(A,D,E)201708-202207

G

main75444-0D700iNSP150..5F..G..A201708-202108

G

main75444-0D710iNSP151..MA..V201901-202011

S

main75444-0D720iNSP151..IDN..R201801-202207

E

main75444-0D720iNSP150,151..GCC..R..C201801-202009

E

main75444-0D730iNSP150,151..G..C201801-202207

G

main75444-0D750iNSP151..R..G201804-201908

G

main75444-0D760iNSP151..G..G201804-201908

V

main75444-0D770iNSP151..V..G201804-201908

VX

main75444-0D780iNSP151..D..G201804-201908

J

main75444-0D830iNSP151..BZ..R201807-201910

XL

main75444-0D840iNSP151..AGT..R;NSP151..(BZ,GEN)..G..H201807-201910

XS

main75444-0D850iNSP151..V..H;NSP151..AGT..G201807-201910

XLS

main75444-0DB30iNSP150..G..I202003-202406

G

main75444-0DB40iNSP150..D..I202003-202406

S

main75444-0DB50iNSP151..I202003-202406

V

9 parts on this diagram · 2 diagrams in section
