Toyota YARIS/VIOS/LIMO — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0008 1ENGINE ROOM 0012 1ENGINE ROOM RELAY BLOCK 0017 1ENGINE ROOM RELAY BLOCK 0021 1COWL 0024 1COWL 0026 1COWL 0029 1COWL 0032 1INSTRUMENT PANEL 0035 1INSTRUMENT PANEL 0037 1INSTRUMENT PANEL 0041 1INSTRUMENT PANEL 0044 1INSTRUMENT PANEL 0045 1STEERING 0048 1STEERING 0052 1SEAT 0053 1DOOR,ROOF,FLOOR & LUGGAGE 0056 1DOOR,ROOF,FLOOR & LUGGAGE

82715BRACKET,WIRING HARNESS CLAMP

main82715-0DL90iNSP151..H201807-201910

TYPE B:REFER ILLUST.

main82715-52N30iNSP152¥350201708-201910

TYPE A:REFER ILLUST.

main82715-5C120iNCP15#201304-201609

main82715-5C360iNSP151..A;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C201604-202406

TYPE B:REFER ILLUST.

main8946A-52010iNSP152201911-202207

TYPE C:REFER ILLUST.

83181GSENSOR, SPEEDOMETER

main83181-12020iNCP150..5F..TH..D..B¥0201304-201603

BRUNEI SPEC

main83181-12020iNCP150..IDN..D..B¥0201304-201807

main83181-12020iNCP150..5F..TH..D..B¥0201304-201603

SINGAPORE & BRUNEI SPEC

main83181-12040iNCP150..4FC..TH..D¥16,800201304-201603

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iNCP150..4FC..TH..D¥160201304-201603

main96711-24030iNCP150..5F..TH..D..B¥170201304-201603

SINGAPORE & BRUNEI SPEC

main96711-24030iNCP150..5F..TH..D..B¥170201304-201603

BRUNEI SPEC

main96711-24030iNCP151..PH..D¥170201304-201807

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP150..TAIW¥1,970201304-202406

DENSO

main83530-60020iNSP152..HTWC;NSP150..D,E,I;NSP151..AGT,BZ,IND,MA,PKN;NSP151..(GEN,PH,VN)..(D,E,H)¥1,970201304-202406

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52010iNCP15#..5F..C¥1,360201304-201609

main84210-52050iNSP150,151..5F..PH¥1,360201604-202406

84540SWITCH ASSY, NEUTRAL START

main84540-33010iNSP152¥7,600201911-202207

main84540-46010iNCP15#..4FC¥8,400201304-201609

main84540-52070iNSP151..CVT..A;NSP150..CVT..(A,C);NSP151..CVT..(GCC,IDN)..(G,R)..C¥7,600201708-202406

main84540-52070iNSP151..TH..B¥7,600201604

SPECIAL EDITION

89465SENSOR, OXYGEN

main89465-52380iNCP15#..MA,VN¥8,700201304-201609

main89465-52740iNSP150..CVT..GCC;NSP151..GCC..R..B;NSP151..CVT..(D,R)..C;NSP151..CVT..(GCC,IDN)..G¥6,500201604-202207

main89465-52830iNSP150..5F..G..A;NSP150..5F..GCC..D..(A,C)201604-202207

main89465-52A00iNSP150,151..CVT..I201903-202406

main89465-52A10iNSP150,151..5F..(B,I)201912-202406

main89467-52170iNCP150..TAIW201404-201604

89465ASENSOR, OXYGEN NO.2

main89465-52700iNCP15#..C201304-201609

main89465-52710iNCP150..TAIW201404-201604

89615SENSOR, KNOCK CONTROL

main89615-20090iNSP151..MA¥2,370201304-202406

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40¥220

90105T0178

main90105-T0178

90119T0221

main90119-T0221

90119T0275

main90119-T0275

90119T0304

main90119-T0304

9012608039

main90126-08039¥240

9017908153

main90179-08153¥90

9043018008

main90430-18008¥110

9155381014

main91553-81014¥100

9165140620

main91651-40620¥70

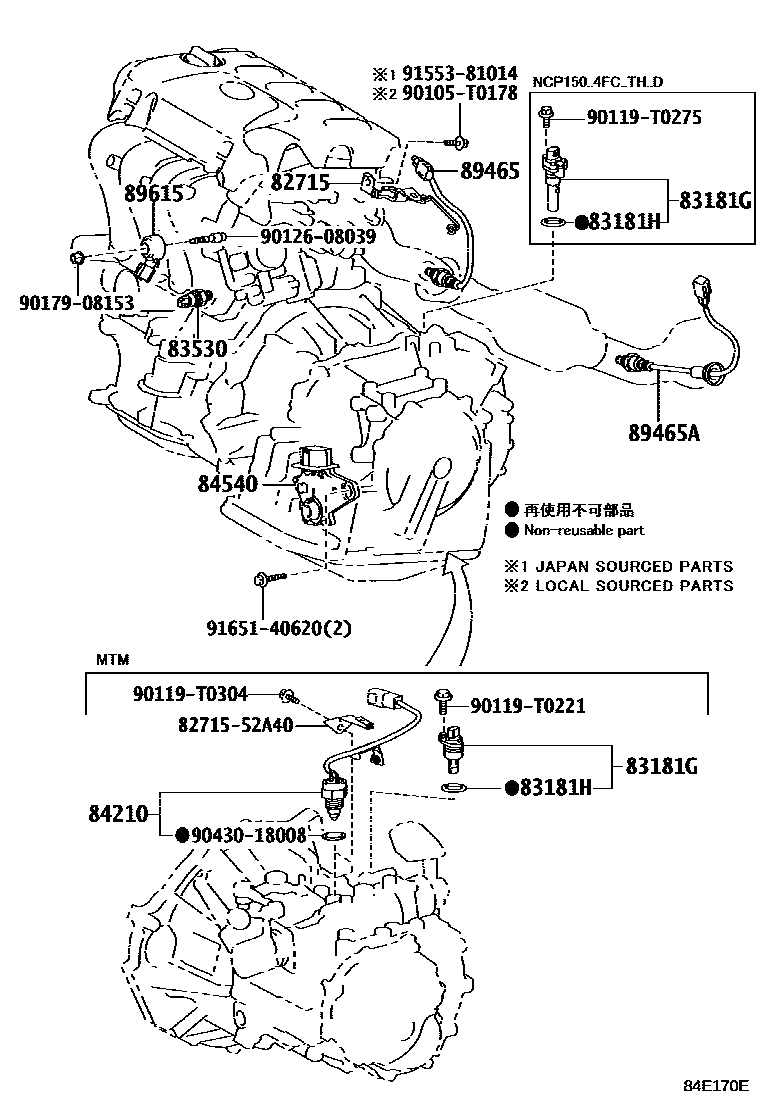

19 parts on this diagram · 20 diagrams in section
