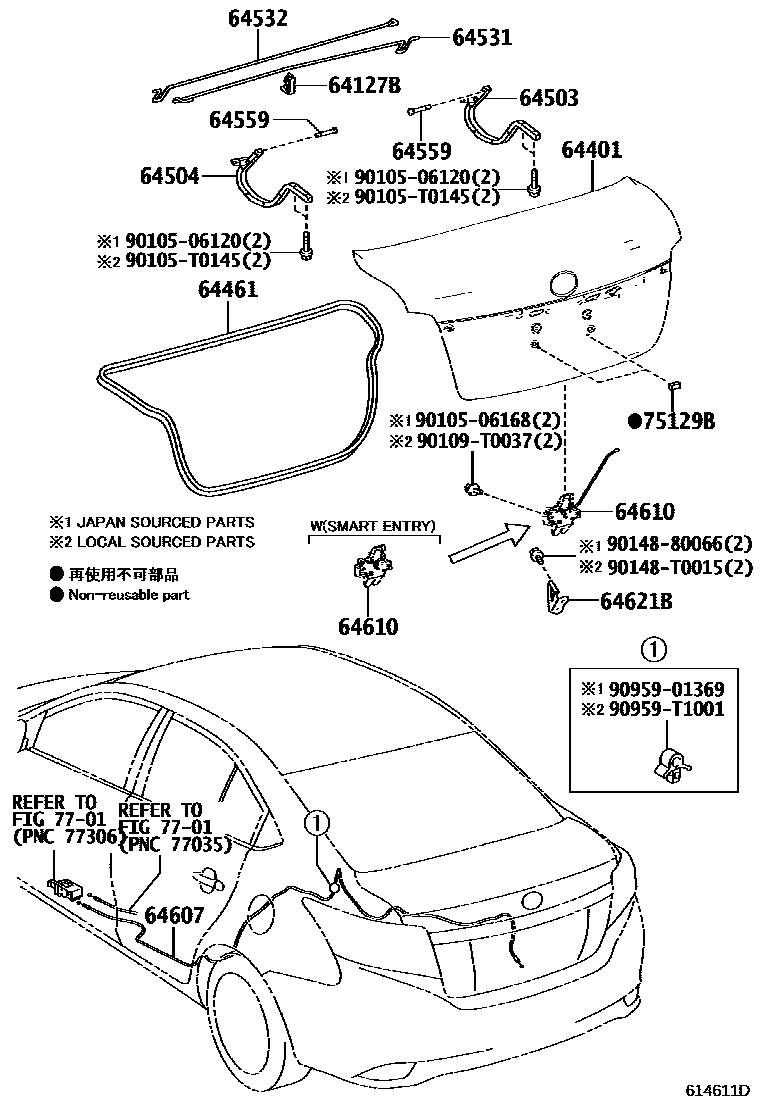

Toyota YARIS/VIOS/LIMO — LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0004 1 0008 1

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D060iNCP15#..(GCC,GEN,TH)..B201304-201603

main64127-0D060iNCP150..TAIW201304-201604

main64127-0D060iNCP150..IDN..B201304-201506

main64127-0D060iNCP15#..PH201304-201606

main64127-0D060iNCP15#..MA,VN201304-201608

main64127-0D060iNCP15#..C201304-201609

main64127-0D060iNSP151..TH..G..C201304-201707

main64127-0D060iNSP150,151..GEN201304-201709

main64127-0D060iNSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G201304-201712

main64127-0D060iNSP151..TAIW201304-201802

main64127-0D060iNSP150,151..PH201304-201806

main64127-0D060iNSP150,151..VN201304-201807

main64127-0D060iNSP151..MA201304-201812

main64127-0D060iNSP151..TH..B201304

main64127-0D060iNSP151..F201708-202101

main64127-0D060iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201708-202108

main64127-0D060iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C201708-202207

main64127-0D060iNSP152..HTWC;NSP150..D,E,I;NSP151..AGT,BZ,IND,MA,PKN;NSP151..(GEN,PH,VN)..(D,E,H)201708-202406

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D160iNSP151..TH..B201304

main64401-0D160iNCP15#..(GCC,GEN,TH)..B201304-201603

main64401-0D160iNCP15#..PH201304-201606

main64401-0D160iNCP15#..VN201304-201608

main64401-0D160iNSP150,151..GEN201304-201709

main64401-0D160iNSP150,151..GCC..B201304-201712

main64401-0D160iNSP150,151..PH201304-201806

main64401-0D160iNSP150,151..VN201304-201807

main64401-0D160iNCP150..IDN..B201304-201506

main64401-0D230iNSP151..TH..G..C201312-201707

sub64401-0D160

main64401-0D230iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

sub64401-0D160

main64401-0D230iNCP15#..C201312-201609

sub64401-0D160

main64401-0D250iNSP151..TAIW201404-201802

main64401-0D250iNCP150..TAIW201404-201604

main64401-0D260iNCP150..MA201310-201608

sub64401-0D160

main64401-0D260iNSP151..MA201310-201812

sub64401-0D160

main64401-0D340iNSP150..E;NSP150..CVT..GCC..D..A201801-202207

main64401-0D340iNSP150..5F..GCC..D..A201801-202108

main64401-0D360iNSP150..5F..G..A201708-202108

main64401-0D360iNSP151..R..G;NSP151..RHD..A;NSP150..CVT..GEN..G..A;NSP151..LHD..(GEN,VN)..G..(A,E)201708-202207

main64401-0D370iNSP151..MA201901-202011

sub64401-0D490

main64401-0D390iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

sub64401-0D340

main64401-0D390iNSP150..CVT..D..C201801-202207

sub64401-0D340

main64401-0D390iNSP151..5F..D..C201801-202109

sub64401-0D340

main64401-0D400iNSP151..IDN..G201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

sub64401-0D360

main64401-0D420iNSP151..V..F201803-202101

main64401-0D460iNSP151..GEN..G..H201807-201910

main64401-0D490iNSP151..(G,V)..G201804-201908

main64401-0D500iNSP152..HTWC;NSP151..D..(A,G);NSP151..GCC..G..A;NSP151..LHD..R..(A,E);NSP150..GCC..(G,R)..A;NSP150..GEN..(D,R)..A201708-202207

main64401-0D510iNSP151..5F..D..C202109-202207

sub64401-0D500

main64401-0D510iNSP151..R..C;NSP150..(G,R)..C;NSP151..GCC..G..C201801-202207

sub64401-0D500

main64401-0D520iNSP151..(D,R)..F201803-202101

main64401-0D550iNSP151..(AGT,GEN)..(D,R)..H201807-201910

main64401-0D560iNSP151..BZ..(G,V)201807-201910

main64401-0D570iNSP151..BZ..(D,R)201807-201910

main64401-0D580iNSP151..AGT..G201807-201910

main64401-0D590iNSP150..D..D201807-201910

main64401-0D600iNSP151..D201807-201910

main64401-0D610iNSP150..R..D201807-201910

main64401-0D630iNSP151..I202003-202406

main64401-0D640iNSP150..I202003-202406

main64401-0D660iNSP152201911-202207

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D090iNSP150,151..GEN201304-201709

main64461-0D090iNCP150..IDN..B201304-201506

main64461-0D090iNCP15#..(GCC,GEN,TH)..B201304-201603

main64461-0D090iNSP151..TH..B201304

main64461-0D090iNCP15#..VN201304-201608

main64461-0D090iNSP150,151..VN201304-201807

main64461-0D090iNSP150,151..GCC..B201304-201712

main64461-0D100iNCP150..TAIW201404-201604

main64461-0D100iNSP151..TAIW201404-201802

main64461-0D110iNCP150..MA201310-201608

main64461-0D110iNSP151..MA201310-201812

main64461-0D120iNSP150,151..PH201307-201806

main64461-0D120iNCP15#..PH201307-201606

main64461-0D130iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main64461-0D130iNCP15#..C201312-201609

main64461-0D130iNSP151..TH..G..C201312-201707

main64461-0D180iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)201708-202207

main64461-0D180iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main64461-0D190iNSP151..MA201901-202011

main64461-0D200iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main64461-0D200iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main64461-0D210iNSP150,151..D201807-201910

main64461-0D220iNSP151..F201803-202101

main64461-0D230iNSP151..G201804-201908

main64461-0D240iNSP151..H201807-201910

main64461-0D250iNSP150,151..I202003-202406

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-0D040iNSP150,151..GEN201304-201709

main64503-0D040iNSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G201304-201712

main64503-0D040iNSP151..TH..B201304

main64503-0D040iNCP150..IDN..B201304-201506

main64503-0D040iNCP15#..(GCC,GEN,TH)..B201304-201603

main64503-0D040iNCP15#..PH201304-201606

main64503-0D040iNCP15#..MA,VN201304-201608

main64503-0D040iNCP15#..C201304-201609

main64503-0D040iNSP151..TH..G..C201304-201707

main64503-0D040iNSP150,151..VN201304-201807

main64503-0D040iNSP151..MA201304-201812

main64503-0D040iNSP150,151..PH201304-201806

main64503-0D050iNSP151..TAIW201404-201802

main64503-0D050iNCP150..TAIW201404-201604

main64503-0D090iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,201708-202207

main64503-0D090iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main64503-0D100iNSP151..F201803-202101

main64503-0D110iNSP151..G201804-201908

main64503-0D120iNSP151..H201807-201910

main64503-0D130iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main64503-0D130iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main64503-0D140iNSP150,151..I202003-202406

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-0D040iNCP15#..C201304-201609

main64503-0D040iNSP151..TH..G..C201304-201707

main64503-0D040iNSP150,151..GEN201304-201709

main64503-0D040iNSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G201304-201712

main64503-0D040iNSP151..TH..B201304

main64503-0D040iNCP150..IDN..B201304-201506

main64503-0D040iNCP15#..(GCC,GEN,TH)..B201304-201603

main64503-0D040iNCP15#..PH201304-201606

main64503-0D040iNCP15#..MA,VN201304-201608

main64503-0D040iNSP150,151..VN201304-201807

main64503-0D040iNSP151..MA201304-201812

main64503-0D040iNSP150,151..PH201304-201806

main64503-0D050iNSP151..TAIW201404-201802

main64503-0D050iNCP150..TAIW201404-201604

main64503-0D090iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main64503-0D090iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,201708-202207

main64503-0D100iNSP151..F201803-202101

main64503-0D110iNSP151..G201804-201908

main64503-0D120iNSP151..H201807-201910

main64503-0D130iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main64503-0D130iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main64503-0D140iNSP150,151..I202003-202406

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D170iNCP15#..MA,VN201304-201608

main64531-0D170iNSP151..TH..B201304

main64531-0D170iNCP150..IDN..B201304-201506

main64531-0D170iNCP15#..(GCC,GEN,TH)..B201304-201603

main64531-0D170iNCP15#..PH201304-201606

main64531-0D170iNSP150,151..GEN201304-201709

main64531-0D170iNSP150,151..GCC..B201304-201712

main64531-0D170iNSP150,151..PH201304-201806

main64531-0D170iNSP150,151..VN201304-201807

main64531-0D170iNSP151..MA201304-201812

main64531-0D190iNSP151..TAIW201404-201802

main64531-0D190iNCP150..TAIW201404-201604

main64531-0D210iNCP15#..C201312-201609

main64531-0D210iNSP151..TH..G..C201312-201707

main64531-0D210iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main64531-0D300iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150..(GEN,PH,VN)..(D201708-202207

main64531-0D300iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main64531-0D320iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main64531-0D320iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main64531-0D340iNSP151..F201803-202101

main64531-0D350iNSP151..G201804-201908

main64531-0D370iNSP151..H201807-201910

sub64531-0D350

main64531-0D380iNSP152201708-202207

main64531-0D390iNSP150,151..I202003-202406

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D170iNCP15#..(GCC,GEN,TH)..B201304-201603

main64532-0D170iNCP15#..PH201304-201606

main64532-0D170iNCP15#..MA,VN201304-201608

main64532-0D170iNSP150,151..VN201304-201807

main64532-0D170iNSP151..TH..B201304

main64532-0D170iNSP150,151..GEN201304-201709

main64532-0D170iNSP150,151..GCC..B201304-201712

main64532-0D170iNSP151..MA201304-201812

main64532-0D170iNSP150,151..PH201304-201806

main64532-0D170iNCP150..IDN..B201304-201506

main64532-0D190iNSP151..TAIW201404-201802

main64532-0D190iNCP150..TAIW201404-201604

main64532-0D210iNSP151..TH..G..C201312-201707

main64532-0D210iNCP15#..C201312-201609

main64532-0D210iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main64532-0D290iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main64532-0D290iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150..(GEN,PH,VN)..(D201708-202207

main64532-0D310iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main64532-0D310iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main64532-0D330iNSP151..F201803-202101

main64532-0D340iNSP151..G201804-201908

main64532-0D360iNSP151..H201807-201910

sub64532-0D340

main64532-0D370iNSP152201708-202207

main64532-0D380iNSP150,151..I202003-202406

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iNSP151..TAIW¥100201304-201802

main64559-12040iNSP150,151..PH¥100201304-201806

main64559-12040iNSP150,151..VN¥100201304-201807

main64559-12040iNSP151..MA¥100201304-201812

main64559-12040iNSP151..TH..B¥100201304

main64559-12040iNSP151..F¥100201708-202101

main64559-12040iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)¥100201708-202108

main64559-12040iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C¥100201708-202207

main64559-12040iNSP152..HTWC;NSP150..D,E,I;NSP151..AGT,BZ,IND,MA,PKN;NSP151..(GEN,PH,VN)..(D,E,H)¥100201708-202406

main64559-12040iNCP15#..PH¥100201304-201606

main64559-12040iNCP150..IDN..B¥100201304-201506

main64559-12040iNCP15#..(GCC,GEN,TH)..B¥100201304-201603

main64559-12040iNCP150..TAIW¥100201304-201604

main64559-12040iNCP15#..MA,VN¥100201304-201608

main64559-12040iNCP15#..C¥100201304-201609

main64559-12040iNSP151..TH..G..C¥100201304-201707

main64559-12040iNSP150,151..GEN¥100201304-201709

main64559-12040iNSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G¥100201304-201712

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-0D200iNCP15#..VN201308-201608

main64607-0D200iNSP150,151..LHD..GEN201308-201709

main64607-0D200iNCP15#..LHD..(GCC,GEN)..B201308-201603

main64607-0D200iNSP150,151..VN201308-201807

main64607-0D200iNSP150,151..GCC..B201308-201712

main64607-0D210iNCP150..IDN..B201304-201506

main64607-0D210iNCP15#..RHD..(GEN,TH)..B201304-201603

main64607-0D210iNSP150..RHD201304-201709

main64607-0D210iNSP151..TH..B201304

main64607-0D220iNCP150..MA201310-201608

main64607-0D220iNSP151..MA201310-201812

main64607-0D230iNSP150,151..PH201307-201806

main64607-0D230iNCP15#..PH201307-201606

main64607-0D240iNSP151..TAIW201404-201802

main64607-0D240iNCP150..TAIW201404-201604

main64607-0D250iNCP15#..GCC..C201402-201609

main64607-0D250iNSP150,151..GCC..C201402-201712

main64607-0D260iNSP151..IDN..G;NSP151..RHD..(D,R)..C201312-201712

main64607-0D260iNCP150..RHD..C201312-201609

main64607-0D260iNSP151..TH..G..C201312-201707

main64607-0D340iNSP150..5F..GCC..D..A201801-202108

main64607-0D340iNSP150..CVT..GCC..D..A201801-202207

main64607-0D350iNSP150..CVT..D..C201801-202207

main64607-0D350iNSP150..5F..D..C201801-202108

main64607-0D360iNSP150..D..D201807-201910

main64607-0D390iNSP151..MA201901-202011

main64607-0D400iNSP151..5F..D..C201801-202110

main64607-0D400iNSP151..CVT..D..C201801-202108

main64607-0D420iNSP150..E201808-201912

main64607-0D440iNSP151..GEN..R201710-202207

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main64607-0D440iNSP151..CVT..GEN..R201710-202207

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main64607-0D440iNSP151..CVT..GEN..R201710-202207

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main64607-0D450iNSP150,151..GCC..(G,R)..C201801-202207

main64607-0D460iNSP150,151..(G,R)..D201807-201910

main64607-0D470iNSP151..F201803-202101

main64607-0D480iNSP152..HTWCB;NSP150,151..RHD..CVT..A201708-202207

main64607-0D480iNSP150..5F..G..A201708-202108

main64607-0D480iNSP152..HTWC;NSP150,151..I201708-202406

main64607-0D490iNSP151..IDN..(G,R)201801-202207

main64607-0D490iNSP151..5F..D..C202110-202207

main64607-0D500iNSP151..G201804-201908

main64607-0D510iNSP151..E201808-201912

main64607-0D620iNSP151..H201807-201910

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02080iNSP151..G201804-201908

main64600-0D040iNSP150..D..I;NSP152..HTWC;NSP150..(G,R)..(D,I);NSP151..AGT,BZ,MA,PKN;NSP151..(GEN,PH,VN)..(D,E,H)201708-202406

main64600-0D040iNCP150..TH..V;NCP15#..GEN..G201304-201603

main64600-0D040iNSP151..A;NSP152..HTWCB;NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A201708-202207

main64600-0D040iNCP150..TAIW..V201304-201604

main64600-0D040iNSP150..5F..G..A201708-202108

main64600-0D040iNSP151..F201708-202101

main64600-0D040iNCP150..MA..(G,V)201304-201608

main64600-0D040iNSP150,151..(GCC,IDN)..(G,R)..C201708-202006

main64600-0D040iNCP150..MA..(D,R)201501-201608

main64600-0D040iNCP150..IDN..G..C201304-201609

main64600-0D040iNSP151..TH..V201304

main64600-0D040iNSP150,151..GEN..G201304-201709

main64600-0D040iNSP151..MA201304-201812

main64600-0D040iNSP151..TAIW..V201304-201802

main64600-0D040iNSP151..IDN..G201304-201712

main64600-0D040iNCP150..IDN..G..B201304-201506

main64600-0D060iNCP150..MA..(D,R)201310-201501

main64600-0D070iNSP150,151..(G,R)..C202006-202207

main64600-0D070iNSP151..5F..D..C202110-202207

main64610-0D080iNSP150,151..GEN..(D,R)201304-201709

main64610-0D080iNSP151..TH..G..C201304-201707

main64610-0D080iNSP151..TH..(D,G,R)..B201304

main64610-0D080iNCP151..C;NCP150..(D,R)..C;NCP150..(GCC,TH)..G..C201304-201609

main64610-0D080iNCP15#..VN201304-201608

main64610-0D080iNCP15#..PH201304-201606

main64610-0D080iNCP150..TAIW..(D,R)201304-201604

main64610-0D080iNCP151..GCC..G..B;NCP150..GEN..(D,R);NCP151..(GCC,GEN)..(D,R)..B;NCP150..(GCC,TH)..(D,G,R)..B201304-201603

main64610-0D080iNSP150,151..PH201304-201806

main64610-0D080iNSP150,151..VN201304-201807

main64610-0D080iNCP150..IDN..(D,R)..B201304-201506

main64610-0D080iNSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B201304-201712

main64610-0D080iNSP151..TAIW..(D,R)201304-201802

main64610-0D130iNSP150..D..(D,E);NSP150..CVT..GCC..D201801-202207

main64610-0D130iNSP151..5F..D..C201801-202110

main64610-0D130iNSP151..CVT..D..C;NSP150..5F..GCC..D201801-202108

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06080iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main64621-06080iNSP152..HTWC;NSP150..D,E,I;NSP151..AGT,BZ,IND,MA,PKN;NSP151..(GEN,PH,VN)..(D,E,H)201708-202406

main64621-06080iNCP150..IDN..B201304-201506

main64621-06080iNCP15#..(GCC,GEN,TH)..B201304-201603

main64621-06080iNCP150..TAIW201304-201604

main64621-06080iNCP15#..PH201304-201606

main64621-06080iNCP15#..MA,VN201304-201608

main64621-06080iNCP15#..C201304-201609

main64621-06080iNSP151..TH..G..C201304-201707

main64621-06080iNSP150,151..GEN201304-201709

main64621-06080iNSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G201304-201712

main64621-06080iNSP151..TAIW201304-201802

main64621-06080iNSP150,151..PH201304-201806

main64621-06080iNSP150,151..VN201304-201807

main64621-06080iNSP151..MA201304-201812

main64621-06080iNSP151..TH..B201304

main64621-06080iNSP150,151..(GCC,IDN)..C201708-202006

main64621-06080iNSP151..F201708-202101

main64621-06080iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main64621-0D070iNSP150..5F..D..C;NSP151..CVT..D..C202006-202108

main64621-0D070iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C202006-202207

75129BCUSHION, REAR LICENCE PLATE

main75129-0D020iNSP151..G201804-201908

main75129-0D030iNCP150..TAIW201304-201604

main75129-0D030iNCP15#..PH201304-201606

main75129-0D030iNCP15#..MA,VN201304-201608

main75129-0D030iNSP150,151..GEN201304-201709

main75129-0D030iNSP150,151..GCC..B201304-201712

main75129-0D030iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN201708-202406

main75129-0D030iNCP150..IDN..B201304-201506

main75129-0D030iNCP15#..(GCC,GEN,TH)..B201304-201603

main75129-0D030iNSP150,151..VN201304-201807

main75129-0D030iNSP151..MA201304-201812

main75129-0D030iNSP151..TH..B201304

main75129-0D030iNSP151..F201708-202101

main75129-0D030iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main75129-0D030iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main75129-0D030iNSP151..TAIW201304-201802

main75129-0D030iNSP150,151..PH201304-201806

main75129-0D050iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main75129-0D050iNSP151..TH..G..C201312-201707

main75129-0D050iNCP15#..C201312-201609

main75129-0D050iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main75129-0D050iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main75129-0D110iNSP151..H201807-201910

7701

9010506120

main90105-06120¥90

9010506168

main90105-06168¥120

90105T0145

main90105-T0145

90109T0037

main90109-T0037

9014880066

main90148-80066¥60

90148T0015

main90148-T0015

9095901369

main90959-01369¥100

90959T1001

main90959-T1001

21 parts on this diagram · 3 diagrams in section
