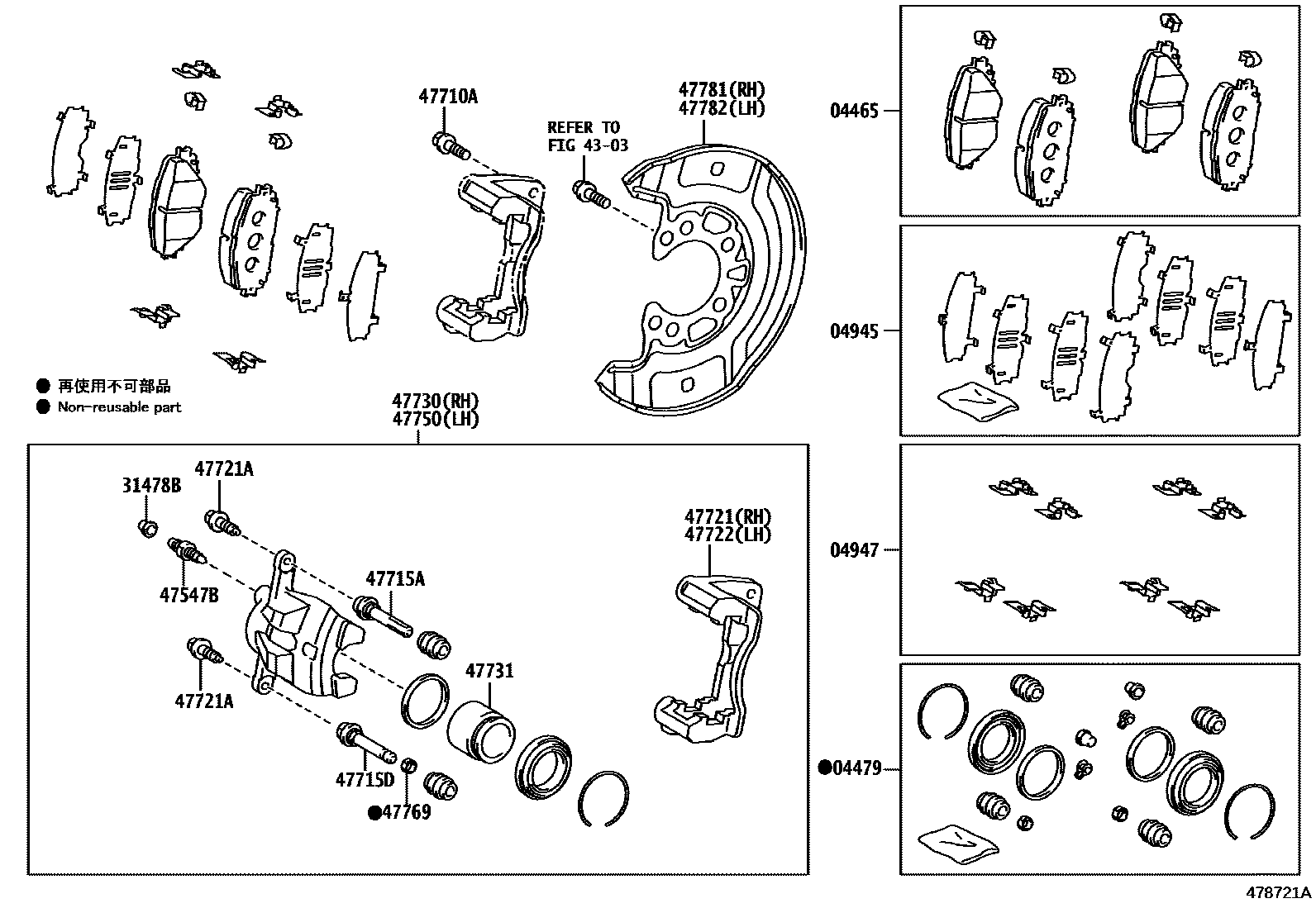

Toyota YARIS/VIOS/LIMO — FRONT DISC BRAKE CALIPER & DUST COVER

0001 1PNC 04465=MARK PV565H 0002 1PNC 04465=MARK PC553H,PA563H 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02350iNSP151..(D,R)..G201804-201908

MARK AK PA563H

main04465-0D101iNSP151..H201807-201910

MARK AK PA563H

main04465-0D130iNSP150..5F..G..A¥8,600201708-202108

MARK ADVICS PV565H

main04465-0D130iNSP151..TH..R..C;NCP151,NSP150..5F..G..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)¥8,600201304

MARK ADVICS PV565H

main04465-0D130iNSP151..CVT..R..E;NSP150..LHD..GEN..G..A;NSP151..(IDN,IND,MA)..(G,V);NSP151..(PH,TH,VN)..G..(A,D,E)¥8,600201708-202207

MARK ADVICS PV565H

main04465-0D130iNCP150..TH..R..C¥8,600201501

MARK ADVICS PV565H

main04465-0D150iNSP151..I;NSP152..HTWC;NSP151..5F..E;NSP150..D,E,I;NSP151..MA..(D,R)¥8,000201708-202406

MARK AK PA563H

main04465-0D150iNCP151..RHD..4FC..G;NSP150..RHD..CVT..B;NCP150,NSP151..TH..D..C;NCP150,NSP151..GEN..G..B;NCP151..(GEN,PH,VN)..(D,R);NCP150,NSP151..IDN..(D,R)..C;NSP150..LHD..(GEN,P¥8,000201304

MARK AK PA563H

main04465-0D150iNSP152..HTWCB;NSP151..GEN..A;NSP151..TH..R..A;NSP150..RHD..CVT..A;NSP150..LHD..GEN..(D,R)..A¥8,000201708-202207

MARK AK PA563H

main04465-0D150iNCP150..TH..R..C¥8,000201304-201501

MARK AK PA563H

main04465-0D160iNSP150..5F..GCC..D..A201801-202108

MARK ADVICS PC553H

main04465-0D160iNSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..A201801-202207

MARK ADVICS PC553H

main04465-0D160iNCP15#,NSP150,151..GCC201308-201712

MARK ADVICS PC553H

main04465-0D170iNCP150,NSP151..TAIW201404-201802

MARK AK PA563H

main04465-0D170iNSP151..F201803-202101

MARK AK PA563H

main04465-0D220iNSP151..IDN..R;NSP151..5F..D..C201801-202207

MARK AK PA563H

main04465-0D220iNSP151..CVT..D..C201801-202108

MARK AK PA563H

main04465-0D230iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

MARK ADVICS PC553H

main04465-0D230iNSP150..5F..D..C201801-202108

MARK ADVICS PC553H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D150iNSP151..(D,R)..G201804-201908

main04478-0D170iNSP151..H201807-201910

main04478-0D180iNCP150..TH..R..C201501-201804

sub04478-0D181

main04478-0D180iNSP150..5F..G..A;NSP150..LHD..GEN..G..A;NSP151..(IDN,TH)..G..(A,C)201708-201803

sub04478-0D181

main04478-0D180iNSP151..(G,V)..G201708-201908

sub04478-0D181

main04478-0D180iNSP151..TH..R..C;NCP150,NSP151..VN..R;NCP151,NSP150..5F..G..B;NCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)201304-201804

sub04478-0D181

main04478-0D181iNSP151..(G,V)..B;NSP151..VN..R..B201804

main04478-0D181iNSP150..5F..G..A201804-202108

main04478-0D181iNSP151..CVT..IDN..R201804-202207

BRUNEI SPEC

main04478-0D190iNCP150,NSP151..TH..D..C;NCP151,NSP150..RHD..(ATM,CVT)..B;NCP151,NSP150..(GCC,PH,VN)..(B,C);NCP151,NSP150..LHD..GEN..(D,R)..B;NCP150,NSP151..(GCC,GEN)..G..(B,C);NCP1201304-201804

sub04478-0D191

main04478-0D190iNCP150..TH..R..C201304-201501

sub04478-0D191

main04478-0D190iNSP151..TH..R..A;NSP150..GCC..G..A;NSP151..(GCC,GEN)..A;NSP150..LHD..(D,R)..A;NSP150,152..RHD..CVT..A201708-201803

sub04478-0D191

main04478-0D191iNSP150..B;NSP151..RHD..(D,R)..B201804

sub04478-0D192

main04478-0D191iNSP150..5F..GCC..D..A201804-202108

sub04478-0D192

main04478-0D191iNSP151..I;NSP152..HTWC;NSP151..5F..E;NSP150..D,E,I;NSP151..MA..(D,R)201804-202406

sub04478-0D192

main04478-0D191iNSP152..HTWCB;NSP151..TH..R..A;NSP150..LHD..R..A;NSP150..RHD..CVT..A;NSP150..LHD..GEN..D;NSP151..(GCC,GEN)..A;NSP150..CVT..GCC..(D,G)..A201804-202207

sub04478-0D192

main04478-0D200iNCP150,NSP151..TAIW201404-201802

main04478-0D200iNSP151..F201803-202101

main04478-0D250iNSP151..CVT..D..C201801-202108

sub04478-0D251

main04478-0D250iNSP151..IDN..R;NSP151..5F..D..C201801-202207

sub04478-0D251

main04478-0D260iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

sub04478-0D261

main04478-0D260iNSP150..5F..D..C201801-202108

sub04478-0D261

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0D070iNSP151..TH..R..C;NCP151,NSP150..5F..G..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)201304

main04945-0D070iNCP150..TH..R..C201501

main04945-0D070iNSP150..5F..G..A201708-202108

main04945-0D070iNSP151..CVT..R..E;NSP150..LHD..GEN..G..A;NSP151..(IDN,IND,MA)..(G,V);NSP151..(PH,TH,VN)..G..(A,D,E)201708-202207

main04945-0D080iNCP151..RHD..4FC..G;NSP150..RHD..CVT..B;NCP150,NSP151..TH..D..C;NCP150,NSP151..GEN..G..B;NCP151..(GEN,PH,VN)..(D,R);NCP150,NSP151..IDN..(D,R)..C;NSP150..LHD..(GEN,P201304

main04945-0D080iNSP151..I;NSP152..HTWC;NSP151..5F..E;NSP150..D,E,I;NSP151..MA..(D,R)201708-202406

main04945-0D080iNSP152..HTWCB;NSP151..GEN..A;NSP151..TH..R..A;NSP150..RHD..CVT..A;NSP150..LHD..GEN..(D,R)..A201708-202207

main04945-0D080iNCP150..TH..R..C201304-201501

main04945-0D090iNCP15#,NSP150,151..GCC201308-201712

main04945-0D090iNSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..A201801-202207

main04945-0D090iNSP150..5F..GCC..D..A201801-202108

main04945-0D100iNCP150,NSP151..TAIW201404-201802

main04945-0D100iNSP151..F201803-202101

main04945-0D140iNSP151..CVT..D..C201801-202108

main04945-0D140iNSP151..IDN..R;NSP151..5F..D..C201801-202207

main04945-0D150iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main04945-0D150iNSP150..5F..D..C201801-202108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D030iNSP151..CVT..R..E;NSP150..LHD..GEN..G..A;NSP151..(IDN,IND,MA)..(G,V);NSP151..(PH,TH,VN)..G..(A,D,E)201708-202207

main04947-0D030iNSP151..TH..R..C;NCP151,NSP150..5F..G..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)201304

main04947-0D030iNCP150..TH..R..C201501

main04947-0D030iNSP150..5F..G..A201708-202108

main04947-0D040iNCP150..TH..R..C201304-201501

main04947-0D040iNSP152..HTWCB;NSP151..TH..R..A;NSP150..LHD..R..A;NSP150..RHD..CVT..A;NSP151..(GCC,GEN)..A;NSP150..LHD..GEN..D..A;NSP150..CVT..GCC..(D,G)..A201708-202207

main04947-0D040iNSP150..5F..GCC..D..A201708-202108

main04947-0D040iNCP150,NSP151..TH..D..C;NCP151,NSP150..RHD..(ATM,CVT)..B;NCP151,NSP150..(GCC,PH,VN)..(B,C);NCP151,NSP150..LHD..GEN..(D,R)..B;NCP150,NSP151..(GCC,GEN)..G..(B,C);NCP1201304

main04947-0D040iNSP151..I;NSP152..HTWC;NSP151..5F..E;NSP150..D,E,I;NSP151..MA..(D,R)201708-202406

main04947-0D050iNSP151..F201801-202101

main04947-0D050iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main04947-0D050iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

main04947-0D050iNCP150,NSP151..TAIW201404-201802

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D030iNSP151..H201807-201910

main31478-0D040iNSP151..A;NSP152..HTWCB;NSP151..IDN..G;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main31478-0D040iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)201304

main31478-0D040iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main31478-0D040iNSP151..R..E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN;NSP151..(G,V)..(D,E,G)201708-202406

main31478-0D060iNSP151..(D,R)..G201804-201908

main31478-30010iNCP150,NSP151..TAIW¥160201404-201802

main31478-30010iNSP151..F¥160201803-202101

main90016-AJ101iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main90016-AJ101iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main47547-0D030iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)201304

main47547-0D030iNSP151..A;NSP152..HTWCB;NSP151..IDN..G;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main47547-0D030iNSP151..R..E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN;NSP151..(G,V)..(D,E,G)201708-202310

main47547-20010iNSP150,151..I¥200202310-202406

main47547-20010iNSP151..F¥200201803-202101

main47547-20010iNCP150,NSP151..TAIW¥200201404-201802

main90016-AJ002iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main90016-AJ002iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

main90069-39000iNSP151..H¥310201807-201910

main90069-39013iNSP151..(D,R)..G201804-201908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNSP150..5F..D..C;NSP151..CVT..D..C¥160201801-202108

*12-1.25PX29.5-23,(J)

main90105-12208iNCP150,NSP151..TAIW¥160201404-201802

*12-1.25PX29.5-23

main90105-12208iNSP151..D..G;NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R,V)..(C,G)¥160201801-202207

*12-1.25PX29.5-23,(J)

main90105-12208iNSP151..F,H¥160201803-202101

*12-1.25PX29.5-23

main90105-T0186iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

*12-1.25PX29.5-23,(L)

main90105-T0186iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)201304

*12-1.25PX29.5-23

main90105-T0186iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

*12-1.25PX29.5-23

main90105-T0186iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

*12-1.25PX29.5-23

main90105-T0186iNSP151..D..G;NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R,V)..(C,G)201801-202207

*12-1.25PX29.5-23,(L)

main90105-T0186iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN201708-202406

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0D220iNCP150..TH..D..C;NSP151..5F..(D,R)..C;NCP151,NSP150..GCC,PH,VN;NCP150..(GCC,IDN)..(D,R)..C;NCP150,NSP151..(GCC,GEN)..G;NCP151,NSP150..RHD..(ATM,CVT);NCP151,NSP150..201306-201708

sub47714-0D230

main47714-0D220iNCP150..TH..R..C201306-201501

sub47714-0D230

main47714-0D230iNSP150..RHD..CVT..B;NSP151..(GCC,GEN)..G..B;NSP150..LHD..GEN..(D,R)..B;NSP151..(GCC,TH)..(D,G)..C;NSP150..(GCC,PH,VN)..(B,C);NSP151..(GCC,IDN)..(D,R)..C;NSP151..(GC201708

main47714-0D230iNSP150..5F..GCC..D..A201708-202108

main47714-0D230iNSP151..I;NSP152..HTWC;NSP151..5F..E;NSP150..D,E,I;NSP151..MA..(D,R)201708-202406

main47714-0D230iNSP152..HTWCB;NSP151..TH..R..A;NSP150..LHD..R..A;NSP150..RHD..CVT..A;NSP151..(GCC,GEN)..A;NSP150..LHD..GEN..D..A;NSP150..CVT..GCC..(D,G)..A201708-202207

main47714-0D240iNSP151..F201803-202101

main47714-0D240iNCP150,NSP151..TAIW201404-201802

main47714-0D310iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

main47714-0D310iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main47714-0K220iNSP150..5F..G..A201708-202108

main47714-0K220iNSP150..5F..G..B;NSP151..TH..R..C;NSP151..VN..R..B;NSP150..LHD..GEN..G..B;NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)201708

main47714-0K220iNSP151..CVT..R..E;NSP150..LHD..GEN..G..A;NSP151..(IDN,IND,MA)..(G,V);NSP151..(PH,TH,VN)..G..(A,D,E)201708-202207

main47715-33340iNCP150..D,R¥490201304-201306

main47715-52190iNSP151..TH..R..C;NCP151,NSP150..5F..G;NCP150,NSP151..VN..R;NCP151,NSP150..LHD..GEN..G;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)¥360201304-201708

main47715-52190iNCP150..TH..R..C¥360201501-201708

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-48150iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C¥230201801-202207

main47714-48150iNSP150..5F..D..C;NSP151..CVT..D..C¥230201801-202108

main47715-06250iNSP151..F201803-202101

main47715-06250iNCP150,NSP151..TAIW201404-201802

main47715-0K220iNSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)201708

main47715-0K220iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main47715-0K220iNSP151..R..E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN;NSP151..(G,V)..(D,E,G)201708-202406

main47715-0K220iNSP151..A;NSP152..HTWCB;NSP151..IDN..G;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main47715-33340iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN¥490201304-201708

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09520iNSP151..(D,R)..G201804-201908

main47721-09530iNSP151..H201807-201910

main47721-0D220iNCP150,NSP151..TH..D..C;NCP151,NSP150..RHD..(ATM,CVT)..B;NCP151,NSP150..(GCC,PH,VN)..(B,C);NCP151,NSP150..LHD..GEN..(D,R)..B;NCP150,NSP151..(GCC,GEN)..G..(B,C);NCP1201304

main47721-0D220iNCP150..TH..R..C201304-201501

main47721-0D220iNSP152..HTWCB;NSP151..TH..R..A;NSP150..LHD..R..A;NSP150..RHD..CVT..A;NSP151..(GCC,GEN)..A;NSP150..LHD..GEN..D..A;NSP150..CVT..GCC..(D,G)..A201708-202207

main47721-0D220iNSP151..I;NSP152..HTWC;NSP151..5F..E;NSP150..D,E,I;NSP151..MA..(D,R)201708-202406

main47721-0D220iNSP150..5F..GCC..D..A201708-202108

main47721-0D240iNCP150,NSP151..TAIW201404-201802

main47721-0D240iNSP151..F201803-202101

main47721-0D250iNCP150..TH..R..C201501

main47721-0D250iNSP151..TH..R..C;NCP151,NSP150..5F..G..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)201304

main47721-0D250iNSP150..5F..G..A201708-202108

main47721-0D250iNSP151..CVT..R..E;NSP150..LHD..GEN..G..A;NSP151..(IDN,IND,MA)..(G,V);NSP151..(PH,TH,VN)..G..(A,D,E)201708-202207

main47721-0D310iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main47721-0D310iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603iNSP151..A;NSP152..HTWCB;NSP151..IDN..G;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A¥80201708-202207

*8-1.00PX23-15

main90016-AA603iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)¥80201304

*8-1.00PX23-15

main90016-AA603iNSP150..5F..G..A;NSP150..5F..GCC..D..A¥80201708-202108

*8-1.00PX23-15

main90016-AA603iNSP151..R..E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN;NSP151..(G,V)..(D,E,G)¥80201708-202406

*8-1.00PX23-15

main90016-AA610iNSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C201801-202005

main90016-AA610iNSP150..5F..D..C;NSP151..CVT..D..C202005-202108

main90016-AA610iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C202005

main90080-10247iNCP150,NSP151..TAIW201404-201802

*8-1.00PX23-15

main90080-10247iNSP151..F201803-202101

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09220iNSP151..(D,R)..G201804-201908

main47722-09230iNSP151..H201807-201910

main47722-0D210iNSP150..5F..GCC..D..A201708-202108

main47722-0D210iNSP151..I;NSP152..HTWC;NSP151..5F..E;NSP150..D,E,I;NSP151..MA..(D,R)201708-202406

main47722-0D210iNSP152..HTWCB;NSP151..TH..R..A;NSP150..LHD..R..A;NSP150..RHD..CVT..A;NSP151..(GCC,GEN)..A;NSP150..LHD..GEN..D..A;NSP150..CVT..GCC..(D,G)..A201708-202207

main47722-0D210iNCP150..TH..R..C201304-201501

main47722-0D210iNCP150,NSP151..TH..D..C;NCP151,NSP150..RHD..(ATM,CVT)..B;NCP151,NSP150..(GCC,PH,VN)..(B,C);NCP151,NSP150..LHD..GEN..(D,R)..B;NCP150,NSP151..(GCC,GEN)..G..(B,C);NCP1201304

main47722-0D230iNSP151..F201803-202101

main47722-0D230iNCP150,NSP151..TAIW201404-201802

main47722-0D240iNCP150..TH..R..C201501

main47722-0D240iNSP151..TH..R..C;NCP151,NSP150..5F..G..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)201304

main47722-0D240iNSP150..5F..G..A201708-202108

main47722-0D240iNSP151..CVT..R..E;NSP150..LHD..GEN..G..A;NSP151..(IDN,IND,MA)..(G,V);NSP151..(PH,TH,VN)..G..(A,D,E)201708-202207

main47722-0D300iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

main47722-0D300iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D160iNSP151..(D,R)..G201804-201908

main47730-0D170iNSP151..H201807-201910

main47730-0D220iNSP152..HTWCB;NSP151..TH..R..A;NSP150..LHD..R..A;NSP150..RHD..CVT..A;NSP151..(GCC,GEN)..A;NSP150..LHD..GEN..D..A;NSP150..CVT..GCC..(D,G)..A201708-202207

main47730-0D220iNCP150..TH..R..C201304-201501

main47730-0D220iNCP150,NSP151..TH..D..C;NCP151,NSP150..RHD..(ATM,CVT)..B;NCP151,NSP150..(GCC,PH,VN)..(B,C);NCP151,NSP150..LHD..GEN..(D,R)..B;NCP150,NSP151..(GCC,GEN)..G..(B,C);NCP1201304

main47730-0D220iNSP150..5F..GCC..D..A201708-202108

main47730-0D220iNSP151..I;NSP152..HTWC;NSP151..5F..E;NSP150..D,E,I;NSP151..MA..(D,R)201708-202406

main47730-0D240iNSP151..F201803-202101

main47730-0D240iNCP150,NSP151..TAIW201404-201802

main47730-0D250iNSP151..TH..R..C;NCP151,NSP150..5F..G..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)201304

main47730-0D250iNSP150..5F..G..A201708-202108

main47730-0D250iNSP151..CVT..R..E;NSP150..LHD..GEN..G..A;NSP151..(IDN,IND,MA)..(G,V);NSP151..(PH,TH,VN)..G..(A,D,E)201708-202207

main47730-0D250iNCP150..TH..R..C201501

main47730-0D310iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main47730-0D310iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

47731PISTON, FRONT DISC BRAKE

main47731-0D110iNSP151..TH..R..C;NCP151,NSP150..5F..G..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)201304

main47731-0D110iNSP150..5F..G..A201708-202108

main47731-0D110iNSP151..CVT..R..E;NSP150..LHD..GEN..G..A;NSP151..(IDN,IND,MA)..(G,V);NSP151..(PH,TH,VN)..G..(A,D,E)201708-202207

main47731-0D110iNCP150..TH..R..C201501

main47731-0D210iNSP151..F201803-202101

main47731-0D210iNCP150,NSP151..TAIW201404-201802

main47731-0D220iNSP152..HTWCB;NSP151..TH..R..A;NSP150..LHD..R..A;NSP150..RHD..CVT..A;NSP151..(GCC,GEN)..A;NSP150..LHD..GEN..D..A;NSP150..CVT..GCC..(D,G)..A201708-202207

main47731-0D220iNCP150..TH..R..C201304-201501

main47731-0D220iNCP150,NSP151..TH..D..C;NCP151,NSP150..RHD..(ATM,CVT)..B;NCP151,NSP150..(GCC,PH,VN)..(B,C);NCP151,NSP150..LHD..GEN..(D,R)..B;NCP150,NSP151..(GCC,GEN)..G..(B,C);NCP1201304

main47731-0D220iNSP150..5F..GCC..D..A201708-202108

main47731-0D220iNSP151..I;NSP152..HTWC;NSP151..5F..E;NSP150..D,E,I;NSP151..MA..(D,R)201708-202406

main47731-0D310iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

main47731-0D310iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D160iNSP151..(D,R)..G201804-201908

main47750-0D170iNSP151..H201807-201910

main47750-0D210iNSP152..HTWCB;NSP151..TH..R..A;NSP150..LHD..R..A;NSP150..RHD..CVT..A;NSP151..(GCC,GEN)..A;NSP150..LHD..GEN..D..A;NSP150..CVT..GCC..(D,G)..A201708-202207

main47750-0D210iNSP151..I;NSP152..HTWC;NSP151..5F..E;NSP150..D,E,I;NSP151..MA..(D,R)201708-202406

main47750-0D210iNCP150..TH..R..C201304-201501

main47750-0D210iNCP150,NSP151..TH..D..C;NCP151,NSP150..RHD..(ATM,CVT)..B;NCP151,NSP150..(GCC,PH,VN)..(B,C);NCP151,NSP150..LHD..GEN..(D,R)..B;NCP150,NSP151..(GCC,GEN)..G..(B,C);NCP1201304

main47750-0D210iNSP150..5F..GCC..D..A201708-202108

main47750-0D230iNSP151..F201803-202101

main47750-0D230iNCP150,NSP151..TAIW201404-201802

main47750-0D240iNCP150..TH..R..C201501

main47750-0D240iNSP151..TH..R..C;NCP151,NSP150..5F..G..B;NCP150,NSP151..VN..R..B;NCP151,NSP150..LHD..GEN..G..B;NCP150,NSP151..(IDN,MA,PH,TH,VN)..(G,V)..(B,C)201304

main47750-0D240iNSP150..5F..G..A201708-202108

main47750-0D240iNSP151..CVT..R..E;NSP150..LHD..GEN..G..A;NSP151..(IDN,IND,MA)..(G,V);NSP151..(PH,TH,VN)..G..(A,D,E)201708-202207

main47750-0D300iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main47750-0D300iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-06040iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN201304-201708

sub47769-0K220

main47769-0K220iNSP151..R..E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN;NSP151..(G,V)..(D,E,G)201708-202406

main47769-0K220iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main47769-0K220iNSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)201708

main47769-0K220iNSP151..A;NSP152..HTWCB;NSP151..IDN..G;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D150iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN201708-202406

main47781-0D150iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main47781-0D150iNCP150..IDN..B201304-201506

main47781-0D150iNCP15#..(GCC,GEN,TH)..B201304-201603

main47781-0D150iNCP15#..PH201304-201606

main47781-0D150iNCP15#..MA,VN201304-201608

main47781-0D150iNSP151..MA201304-201812

main47781-0D150iNSP151..TH..B201304

main47781-0D150iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main47781-0D150iNSP150,151..GEN201304-201709

main47781-0D150iNSP150,151..GCC..B201304-201712

main47781-0D150iNSP150,151..PH201304-201806

main47781-0D150iNSP150,151..VN201304-201807

main47781-0D160iNCP150..TAIW201404-201604

main47781-0D160iNSP151..F201803-202101

main47781-0D160iNSP151..TAIW201404-201802

main47781-0D180iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main47781-0D180iNCP15#..C201312-201609

main47781-0D180iNSP151..TH..G..C201312-201707

main47781-0D180iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main47781-0D180iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main47781-0D200iNSP151..G201804-201908

main47781-0D210iNSP151..H201807-201910

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-0D150iNCP15#..(GCC,GEN,TH)..B201304-201603

main47781-0D150iNCP15#..PH201304-201606

main47781-0D150iNCP15#..MA,VN201304-201608

main47781-0D150iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN201708-202406

main47781-0D150iNCP150..IDN..B201304-201506

main47781-0D150iNSP150,151..GEN201304-201709

main47781-0D150iNSP150,151..GCC..B201304-201712

main47781-0D150iNSP150,151..PH201304-201806

main47781-0D150iNSP150,151..VN201304-201807

main47781-0D150iNSP151..MA201304-201812

main47781-0D150iNSP151..TH..B201304

main47781-0D150iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main47781-0D150iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main47781-0D160iNSP151..F201803-202101

main47781-0D160iNSP151..TAIW201404-201802

main47781-0D160iNCP150..TAIW201404-201604

main47781-0D180iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main47781-0D180iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main47781-0D180iNCP15#..C201312-201609

main47781-0D180iNSP151..TH..G..C201312-201707

main47781-0D180iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main47781-0D200iNSP151..G201804-201908

main47781-0D210iNSP151..H201807-201910

19 parts on this diagram · 3 diagrams in section
