Toyota YARIS/VIOS/LIMO — CONSOLE BOX & BRACKET

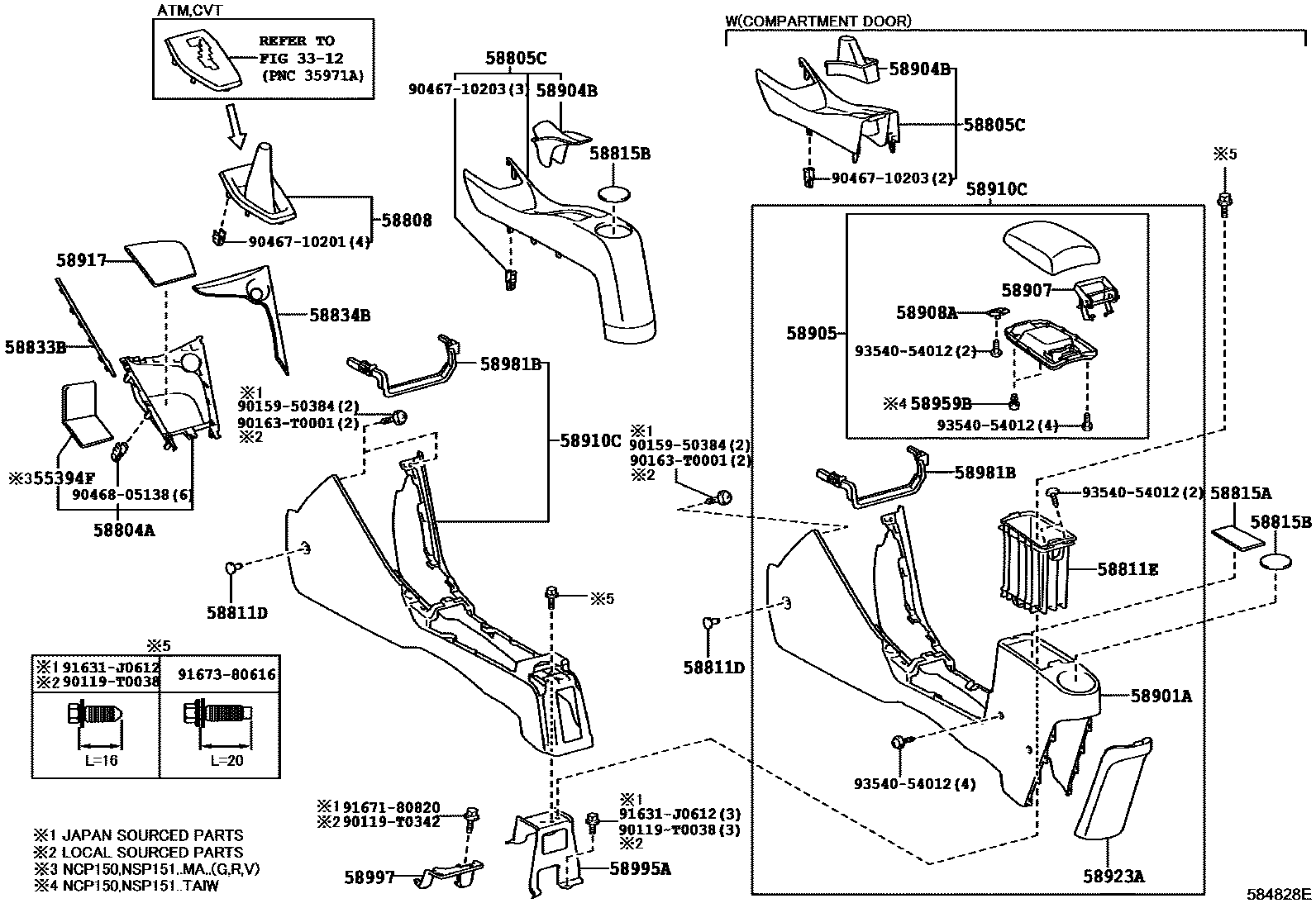

Parts diagram
3312
55394FCUSHION, INSTRUMENT PANEL, LOWER
main55394-0D110i201804-201908
main55394-0D150i201310-201812
main55394-0D160i201807-201910
main55394-0D170i201708-202207
main55394-0D180i201901-202011
main55394-0D190i201801-202207
main55394-0D200i201803-202101
main55394-0D210i201807-201910
main55394-0D310i202009-202207
LAOS SPEC
main55394-0D310i202009-202207
CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))
main55394-0D310i202009-202207
ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))
main55394-0D310i202009-202207
MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))
main55394-0D310i202009-202207
E-SPORT PACKAGE(GRADE MARK(S))
main55394-0D310i202009-202207
SPORT PACKAGE
main55394-0D310i202009-202207
COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))
main55394-0D310i202009-202207
LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))
main55394-0D310i202009-202108
main55394-0D330i202009-202207
E-SPORT PACKAGE(GRADE MARK(S))
main55394-0D330i202009-202207
BRUNEI SPEC
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-0D060i201307-201807
main58804-0D070i201304-201709
main58804-0D090i201310-201812
main58804-0D100i201404-201604
main58804-0D110i201402-201712
main58804-0D120i201312-201712
main58804-0D130i201307-201807
main58804-0D140i201304-201603
main58804-0D150i201402-201712
main58804-0D160i201312-201712
main58804-0D170i201404-201802
main58804-0D210i201310-201812
main58804-0D280i201708-202009
main58804-0D300i202009-202207
main58804-0D310i201710-202207
main58804-0D320i201708-202207
main58804-0D330i201708-202207
main58804-0D340i201710-202207
main58804-0D350i201710-202207
main58804-0D360i201710-202207
LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))
main58804-0D360i201710-202207
CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))
main58804-0D360i201710-202207
ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))
main58804-0D360i201710-202207
MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))
main58804-0D380i201801-202108
main58804-0D390i201801-202207
main58804-0D400i201801-202207
BRUNEI SPEC
main58804-0D410i201801-202207
main58804-0D420i201801-202207
main58804-0D430i201801-202207
E-SPORT PACKAGE(GRADE MARK(S))
main58804-0D470i201803-202101
main58804-0D480i201803-202101
main58804-0D490i201803-202101
main58804-0D510i201804-201908
main58804-0D520i201804-201908
sub58804-0D530
main58804-0D530i201804-201908
main58804-0D620i201807-201910
PARAGUAY SPEC
main58804-0D630i201807-201910
main58804-0D640-C0i201807-201910
BLACK,TRIM2#
main58804-0D650i201807-201910
main58804-0D710i202003-202406
main58804-0D720i202003-202406
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-0D030-A0i201307-201807
IVORY,TRIM0#
main58805-0D030-C0i201307-201807
BLACK,TRIM2#
main58805-0D040-C0i201608-201807
BLACK,TRIM2#
main58805-0D060-A0i201304-201709
IVORY,TRIM0#
main58805-0D060-C0i201304-201709
BLACK,TRIM2#
main58805-0D070-C0i201304-201506
BLACK,TRIM2#
main58805-0D080-A0i201310-201501
IVORY,TRIM0#
main58805-0D080-C0i201310-201608
BLACK,TRIM2#
main58805-0D090-C1i201404-201802
BLACK/IVORY,TRIM0#
main58805-0D090-C2i201404-201802
BLACK,TRIM2#
main58805-0D110-A1i201402-201712
IVORY,TRIM0#
main58805-0D110-C1i201402-201712
BLACK,TRIM2#
main58805-0D120-A1i201312-201712
IVORY,TRIM0#
main58805-0D120-C1i201312-201712
BLACK,TRIM2#
main58805-0D130-C1i201312-201712
BLACK,TRIM2#
main58805-0D250-C0i201803-202101
BLACK,TRIM0#,2#
main58805-0D250-C0i201803-202101
BLACK,TRIM2#
main58805-0D270-C1i201807-201910
BLACK,TRIM2#
main58805-0D280-C0i201608-201812
BLACK,TRIM2#
main58805-0D320-C0i201807-201910
BLACK,TRIM2#
main58805-0D330-C0i202003-202406
BLACK,TRIM0#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-0D180-C0i201403-201807
BLACK,TRIM2#
main58808-0D180-C0i201308-201807
BLACK,TRIM0#,2#
main58808-0D190-C0i201304-201709
BLACK,TRIM0#,2#
main58808-0D190-C0i201304-201812
BLACK,TRIM2#
main58808-0D210-C0i201307-201806
BLACK,TRIM0#,2#
main58808-0D210-C0i201307-201806
BLACK,TRIM2#
main58808-0D240-C0i201402-201712
BLACK,TRIM0#,2#
main58808-0D250-C0i201312-201712
BLACK,TRIM2#
main58808-0D250-C0i201312-201609
BLACK,TRIM0#,2#
main58808-0D250-C0i201610-201712
BLACK,TRIM0#
main58808-0D310-C0i202003-202406
BLACK,TRIM0#
main58808-0D370-C0i201710-202108
BLACK,TRIM0#,2#
main58808-0D370-C0i201901-202011
BLACK,TRIM2#
main58808-0D470-C0i201801-202207
BLACK,TRIM0#,2#
main58808-0D470-C0i201801-202207
BLACK,TRIM0#
main58808-0D470-C0i201801-202207
BLACK,TRIM2#
main58808-0D600-C0i201804-201908
BLACK,TRIM0#
main58808-0D640-C0i201808-201912
BLACK,TRIM0#
main58808-0D640-C0i201710-202207
BLACK,TRIM0#,2#
main58808-0D640-C0i201807-201912
BLACK,TRIM2#
main58808-0D650-C0i201801-202207
BLACK,TRIM0#,2#
58811DCLIP(FOR CONSOLE BOX)
main90467-05164-A4i201312-201712
SHELL,TRIM0#,(J)
sub90467-05164¥110
main90467-05164-A4i201610-201802
SHELL,TRIM0#
sub90467-05164¥110
main90467-05164-A7i201404-201610
IVORY,TRIM0#
sub90467-05164¥110
main90467-05164-C0i201404-201610
BLACK,TRIM2#
sub90467-05164¥110
main90467-05164-C0i201312-201609
BLACK,TRIM2#,(J)
sub90467-05164¥110
main90467-05164-C7i201610-201712
BLACK,TRIM2#,(J)
sub90467-05164¥110
main90467-05164-C7i201610-201802
BLACK,TRIM2#
sub90467-05164¥110
main90467-10203i¥60201708-202406
main90467-T0004-A1i201312-201712
SHELL,TRIM0#,(L)
main90467-T0004-A3i201304-201807
IVORY,TRIM0#
main90467-T0004-C1i201304-201812
BLACK,TRIM2#
main90467-T0004-C1i201312-201712
BLACK,TRIM2#,(L)
58811EBOX, CONSOLE, UPPER
main58811-0D040i201304-201807
main58811-0D050i201310-201812
main58811-0D060i201404-201604
main58811-0D070i201312-201712
58815ACARPET, CONSOLE BOX
main58815-0D140i201304-201807
main58815-0D190i201310-201812
main58815-0D200i201307-201806
main58815-0D220i201404-201802
main58815-0D240i201312-201712
58815BCARPET, CONSOLE BOX
main58815-0D150i201304-201807
main58815-0D210i201307-201509
main58815-0D230i201404-201509
main58815-0D250i201312-201712
main58815-0D260i201310-201509
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
main58833-0D020i201307-201807
main58833-0D030i201304-201709
main58833-0D070i201310-201812
main58833-0D080i201404-201802
main58833-0D100i201402-201712
main58833-0D110i201312-201712
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
main58834-0D030i201307-201807
main58834-0D040i201304-201709
main58834-0D070i201310-201812
main58834-0D080i201404-201802
main58834-0D100i201402-201712
main58834-0D110i201312-201712
58901ABOX SUB-ASSY, CONSOLE, REAR
main58911-0D200-A0i201307-201807
IVORY,TRIM0#
main58911-0D200-C0i201307-201807
BLACK,TRIM2#
main58911-0D220-A0i201304-201709
IVORY,TRIM0#
main58911-0D220-C0i201304-201709
BLACK,TRIM2#
main58911-0D270-A0i201310-201501
IVORY,TRIM0#
main58911-0D270-C0i201310-201812
BLACK,TRIM2#
main58911-0D280-A0i201404-201802
IVORY,TRIM0#
main58911-0D280-C0i201404-201802
BLACK,TRIM2#
main58911-0D310-A0i201402-201712
IVORY,TRIM0#
main58911-0D310-C0i201402-201712
BLACK,TRIM2#
main58911-0D320-A0i201312-201712
IVORY,TRIM0#
main58911-0D320-C0i201312-201712
BLACK,TRIM2#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
main58904-0D020-C0i201304-201807
BLACK,TRIM0#,2#
main58904-0D020-C0i201304-201806
BLACK,TRIM2#
main58904-0D030-C0i201304-201807
BLACK,TRIM2#
main58904-0D050-C0i201310-201608
BLACK,TRIM0#,2#
main58904-0D050-C0i201310-201812
BLACK,TRIM2#
main58904-0D060-C0i201404-201802
BLACK,TRIM0#,2#
main58904-0D060-C0i201404-201802
BLACK,TRIM2#
main58904-0D080-C0i201610-201712
BLACK,TRIM0#
main58904-0D080-C0i201610-201712
BLACK,TRIM2#
main58904-0D080-C0i201312-201712
BLACK,TRIM0#,2#
main58904-0D090-C0i201312-201712
BLACK,TRIM2#
main58904-0D130-C0i201808-201912
BLACK,TRIM2#
main58904-0D140-C0i201808-201912
BLACK,TRIM0#
main58904-0D140-C0i201708-202207
BLACK,TRIM0#,2#
main58904-0D150-C0i201901-202011
BLACK,TRIM2#
main58904-0D160-C0i201801-202109
BLACK,TRIM2#
main58904-0D170-C0i201801-202207
BLACK,TRIM0#
main58904-0D170-C0i201801-202207
BLACK,TRIM0#,2#
main58904-0D170-C0i202109-202207
BLACK,TRIM2#
main58904-0D190-C0i201804-201908
BLACK,TRIM0#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-0D040-A0i201304-201807
IVORY,TRIM0#
main58905-0D040-C0i201304-201807
BLACK,TRIM2#
main58905-0D050-A0i201310-201501
IVORY,TRIM0#
main58905-0D050-C0i201310-201812
BLACK,TRIM2#
main58905-0D060-A0i201404-201802
IVORY,TRIM0#
main58905-0D060-C0i201404-201802
BLACK,TRIM2#
main58905-0D070-A0i201312-201712
IVORY,TRIM0#
main58905-0D070-C0i201312-201712
BLACK,TRIM2#
main58905-0D080-C1i201708-202207
BLACK/IVORY,TRIM0#
main58905-0D080-C2i201708-202207
BLACK,TRIM2#
main58905-0D100-C1i201801-202207
BLACK/IVORY,TRIM0#
main58905-0D100-C2i201801-202207
BLACK,TRIM2#
main58905-0D110-C2i201804-201908
BLACK/IVORY,TRIM0#
main58905-0D120-C0i201807-201910
BLACK,TRIM2#
main58905-0D130-C1i201708-202207
BLACK/IVORY,TRIM0#
main58905-0D130-C2i201708-202207
BLACK,TRIM2#
main58905-0D140-C1i201808-201912
BLACK/IVORY/CAMEL STITCH,TRIM0#
main58905-0D150-C1i201901-202011
BLACK/LT.GRAY STITCH,TRIM2#
main58905-0D150-C2i201901-202011
BLACK/RED STITCH,TRIM2#
main58905-0D160-C1i201801-202207
BRUNEI SPEC,BLACK/IVORY,TRIM0#
main58905-0D160-C1i201801-202207
BLACK/IVORY,TRIM0#
main58905-0D160-C2i201801-202207
BLACK,TRIM2#
main58905-0D160-C2i201801-202207
BRUNEI SPEC,BLACK,TRIM2#
main58905-0D170-C1i201804-201908
BLACK/IVORY,TRIM0#
main58905-0D190-C0i201807-201910
BLACK,TRIM2#
main58905-0D190-C0i201807-201910
PARAGUAY SPEC,BLACK,TRIM2#
main58905-0D200-C1i201807-201910
BLACK/LT.GRAY,TRIM2#
main58905-0D220-C1i201901-202011
BLACK,TRIM2#
main58905-0D270-C0i201804-201908
BLACK/IVORY/CAMEL STITCH,TRIM0#
main58905-0D280-C0i202003-202406
BLACK,TRIM0#
main58905-0D290-C0i202003-202406
BLACK,TRIM0#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-0D030i201304-201807
main58907-0D040i201310-201812
main58907-0D060i201312-201712
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-0D010-C0i201708-202207
BLACK,TRIM0#,2#
main58908-0D010-C0i201807-201910
BLACK,TRIM2#
main58908-0D010-C0i201808-201912
BLACK,TRIM0#
main58908-0D010-C0i201708-202207
SPORT PACKAGE,BLACK,TRIM2#
main58908-0D020-C0i201901-202011
BLACK,TRIM2#
main58908-0D030-C0i201801-202207
BLACK,TRIM0#
main58908-0D030-C0i201801-202207
BLACK,TRIM0#,2#
main58908-0D030-C0i201801-202207
E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
main58908-0D030-C0i202109-202207
BLACK,TRIM2#
main58908-0D040-C0i201804-201908
BLACK,TRIM0#
main58908-33030i¥710201304-201812
58910CBOX ASSY, CONSOLE, REAR
main58910-0D070-A0i201307-201807
IVORY,TRIM0#
main58910-0D070-C0i201307-201807
BLACK,TRIM2#
main58910-0D090-A0i201304-201709
IVORY,TRIM0#
main58910-0D090-C0i201304-201709
BLACK,TRIM2#
main58910-0D140-C0i201310-201812
BLACK,TRIM2#
main58910-0D150-C0i201404-201604
BLACK,TRIM2#
main58910-0D180-A0i201402-201712
IVORY,TRIM0#
main58910-0D180-C0i201402-201712
BLACK,TRIM2#
main58910-0D190-A0i201312-201712
IVORY,TRIM0#
main58910-0D190-C0i201312-201712
BLACK,TRIM2#
main58910-0D200-C0i201610-201712
BLACK,TRIM2#
main58910-0D210-A0i201307-201709
IVORY,TRIM0#
sub58910-0D070
main58910-0D210-C0i201307-201806
BLACK,TRIM2#
sub58910-0D070
main58910-0D220-C0i201608-201807
BLACK,TRIM2#
sub58910-0D080
main58910-0D230-A0i201304-201603
IVORY,TRIM0#
sub58910-0D090
main58910-0D230-C0i201304-201603
BLACK,TRIM2#
sub58910-0D090
main58910-0D240-C0i201304-201506
BLACK,TRIM2#
sub58910-0D100
main58910-0D250-A0i201402-201712
IVORY,TRIM0#
main58910-0D250-C0i201402-201712
BLACK,TRIM2#
main58910-0D260-C0i201312-201712
BLACK,TRIM2#
main58910-0D270-C0i201312-201712
BLACK,TRIM2#
main58910-0D280-A0i201404-201802
IVORY,TRIM0#
main58910-0D280-C0i201404-201802
BLACK,TRIM2#
main58910-0D300-A0i201310-201501
IVORY,TRIM0#
main58910-0D300-C0i201310-201812
BLACK,TRIM2#
main58910-0D380-C0i201808-201912
BLACK,TRIM2#
main58910-0D390-C0i201710-202207
BLACK,TRIM2#
main58910-0D390-C1i201710-202207
BLACK/IVORY,TRIM0#
main58910-0D410-C0i201801-202109
BLACK,TRIM2#
main58910-0D420-C0i201801-202207
BLACK,TRIM2#
main58910-0D420-C1i201801-202207
BLACK/IVORY,TRIM0#
main58910-0D430-C0i201803-202101
BLACK,TRIM2#
main58910-0D440-C0i201804-201908
BLACK/IVORY,TRIM0#
main58910-0D450-C0i201807-201910
BLACK,TRIM2#
main58910-0D480-C1i201808-201912
BLACK/IVORY/CAMEL STITCH,TRIM0#
main58910-0D490-C1i201901-202011
BLACK/LT.GRAY STITCH,TRIM2#
main58910-0D490-C2i201901-202011
BLACK/RED STITCH,TRIM2#
main58910-0D540-C0i201807-201910
BLACK,TRIM2#
main58910-0D540-C0i201807-201910
PARAGUAY SPEC,BLACK,TRIM2#
main58910-0D540-C0i201807-201910
AUDIO-RADIOLESS 6SPEAKER & W(AUDIO LESS COVER),BLACK,TRIM2#
main58910-0D550-C1i201807-201910
BLACK/LT.GRAY,TRIM2#
main58910-0D580-C1i201901-202011
BLACK,TRIM2#
main58910-0D620-C0i201708-202207
BLACK,TRIM2#
main58910-0D620-C1i201708-202207
BLACK/IVORY,TRIM0#
main58910-0D630-C1i201708-202009
BLACK/IVORY,TRIM0#
main58910-0D630-C2i201708-202009
BLACK,TRIM2#
main58910-0D640-C1i201801-202207
BLACK/IVORY,TRIM0#
main58910-0D640-C1i201801-202009
BRUNEI SPEC,BLACK/IVORY,TRIM0#
main58910-0D640-C2i201801-202009
BRUNEI SPEC,BLACK,TRIM2#
main58910-0D640-C2i201801-202009
BLACK,TRIM2#
main58910-0D660-C0i201803-202101
BLACK,TRIM2#
main58910-0D660-C0i201803-202101
BLACK,TRIM0#,2#
main58910-0D680-C0i202009-202207
BLACK/IVORY,TRIM0#
main58910-0D680-C0i202009-202207
LAOS SPEC,BLACK/IVORY,TRIM0#
main58910-0D680-C1i202009-202207
LAOS SPEC,BLACK,TRIM2#
main58910-0D680-C1i202009-202207
BLACK,TRIM2#
main58910-0D690-C0i201804-201908
BLACK/IVORY,TRIM0#
main58910-0D700-C0i201804-201908
BLACK/IVORY/CAMEL STITCH,TRIM0#
main58910-0D720-C0i201807-201910
BLACK,TRIM2#
main58910-0D740-C1i201901-202011
BLACK,TRIM2#
main58910-0D750-C0i201801-202207
BLACK,TRIM2#
main58910-0D750-C1i201801-202207
BLACK/IVORY,TRIM0#
main58910-0D770-C0i201807-201910
BLACK,TRIM2#
main58910-0D780-C0i201807-201910
BLACK,TRIM2#
main58910-0D790-C0i201807-201910
BLACK,TRIM2#
main58910-0D810-C0i202003-202406
BLACK,TRIM0#
main58910-0D820-C0i202003-202406
BLACK,TRIM0#
main58910-0DB20-C0i202009-202207
BLACK/IVORY,TRIM0#
main58910-0DB20-C0i202009-202207
BRUNEI SPEC,BLACK/IVORY,TRIM0#
main58910-0DB20-C1i202009-202207
BLACK,TRIM2#
main58910-0DB20-C1i202009-202207
BRUNEI SPEC,BLACK,TRIM2#
58917MAT, BOX BOTTOM, NO.2
main58917-0D110i201307-201807
main58917-0D120i201304-201812
main58917-0D130i201402-201712
main58917-0D140i201312-201712
main58917-0D150i201404-201802
58923APANEL, CONSOLE REAR END
main58923-0D020-A0i201304-201807
IVORY,TRIM0#
main58923-0D020-C0i201304-201807
BLACK,TRIM2#
main58923-0D030-A0i201310-201501
IVORY,TRIM0#
main58923-0D030-C0i201310-201812
BLACK,TRIM2#
main58923-0D050-A0i201312-201712
IVORY,TRIM0#
main58923-0D050-C0i201312-201712
BLACK,TRIM2#
main58923-0D060-C0i201808-201912
BLACK,TRIM0#
main58923-0D060-C0i201708-202207
BLACK,TRIM0#,2#
main58923-0D060-C0i201708-202009
SPORT PACKAGE,BLACK,TRIM2#
main58923-0D070-C0i201901-202011
BLACK,TRIM2#
main58923-0D080-C0i201801-202207
BLACK,TRIM0#,2#
main58923-0D080-C0i202109-202207
BLACK,TRIM2#
main58923-0D080-C0i201801-202207
BLACK,TRIM0#
main58923-0D080-C0i201801-202009
E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
main58923-0D090-C0i201804-201908
BLACK,TRIM0#
sub58923-0D110
main58923-0D100-C0i201807-201910
BLACK,TRIM2#
main58923-0D110-C0i201804-201908
BLACK,TRIM0#
main58923-0D130-C0i201807-201910
BLACK,TRIM2#
sub58923-0D100
main58923-0D140-C0i201807-201910
BLACK,TRIM2#
main58923-0D230-C0i202003-202406
BLACK,TRIM0#
main58923-0D250-C0i202009-202207
LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
main58923-0D250-C0i202009-202207
LAOS SPEC,BLACK,TRIM0#,2#
main58923-0D250-C0i202009-202207
CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
main58923-0D250-C0i202009-202207
ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
main58923-0D250-C0i202009-202207
MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
main58923-0D250-C0i202009-202207
E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
main58923-0D250-C0i202009-202207
SPORT PACKAGE,BLACK,TRIM2#
main58923-0D250-C0i202009-202207
COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
main58923-0D250-C0i202009-202207
BLACK,TRIM0#,2#
main58923-0D280-C0i202009-202207
E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
main58923-0D280-C0i202009-202207
BLACK,TRIM0#,2#
main58923-0D280-C0i202009-202207
BRUNEI SPEC,BLACK,TRIM0#,2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main90541-03078i¥120201708-202406
main90541-04079i¥140201404-201802
58981BRETAINER, CONSOLE MOUNTING, NO.1
main58164-0D010i201307-201807
main58164-0D020i201304-201709
main58164-0D050i201310-201812
main58164-0D070i201402-201712
main58164-0D080i201312-201712
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-0D100i201304-201812
main58995-0D110i201404-201802
main58995-0D120i201312-201712
main58995-0D150i201708-202207
main58995-0D160i201801-202207
main58995-0D170i201803-202101
main58995-0D180i201804-201908
main58995-0D190i201807-201910
main58995-0D200i201808-201912
main58995-0D220i202202-202406
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
main58997-0D040i201304-201812
main58997-0D050i201404-201802
main58997-0D060i201312-201712
main58997-0D070i201708-202406
main58997-0D080i201801-202207
main58997-0D090i201803-202101
main58997-0D100i201804-201908
main58997-0D110i201807-201910
90119T0038
main90119-T0038¥60
90119T0342
main90119-T0342
9015950384
main90159-50384¥60
90163T0001
main90163-T0001
9046710201
main90467-10201¥80
9046710203
main90467-10203¥60
9046805138
main90468-05138¥80
91631J0612
main91631-J0612¥110
9167180820
main91671-80820¥80
9167380616
main91673-80616¥60
9354054012
main93540-54012¥90

34 parts on this diagram · 8 diagrams in section

Toyota YARIS/VIOS/LIMO CONSOLE BOX & BRACKET — Parts Diagram | EPC Data
