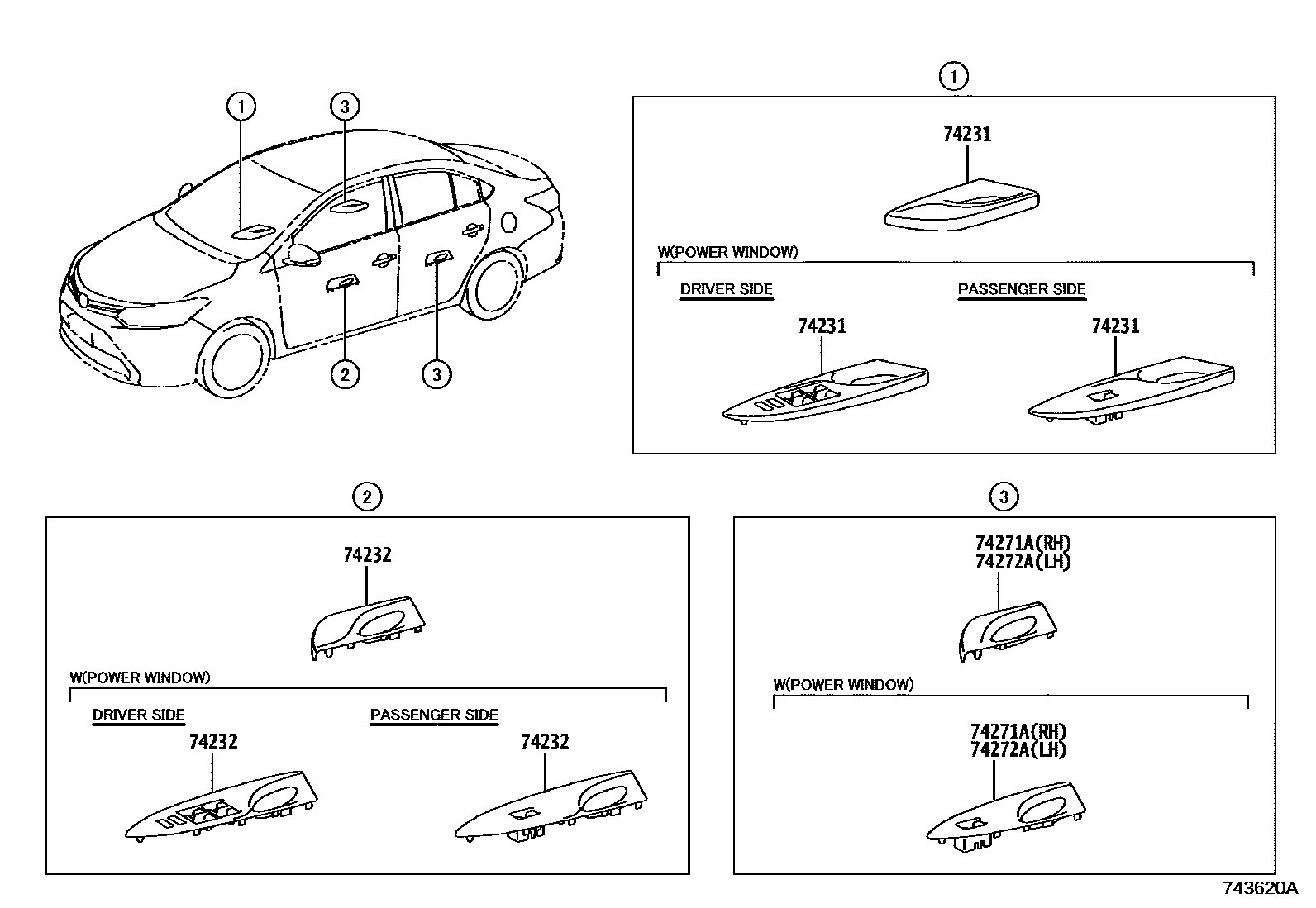

Toyota YARIS/VIOS/LIMO — ARMREST & VISOR

0001 1ARMREST 0005 1ARMREST 0010 1VISOR & ASSIST GRIP & EXTINGU

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0D380iNSP150,151..GCC..R..B201709-201712

main74231-0D380-A0iNCP150..VN..R201307-201807

IVORY,TRIM0#

main74231-0D380-C0iNCP15#..5F..VN201307-201807

BLACK,TRIM2#

main74231-0D390iNCP150..VN..G201307-201807

SILVER PAINTED

main74231-0D400-A0iNCP150..IDN..R..B201304-201709

IVORY,TRIM0#

main74231-0D400-C0iNCP15#..RHD..(GEN,TH)..(D,R)..B201304-201709

BLACK,TRIM2#

main74231-0D410iNSP151..TH..(G,V)..B201304-201709

SILVER PAINTED

main74231-0D420iNSP150..GCC..D..B201709-201712

main74231-0D420-A0iNSP150,151..5F..GEN..D201308-201709

J-LO PACKAGE(FOR LATIN AMERICA),IVORY,TRIM0#

main74231-0D420-A0iNSP150..GCC..D..B201308-201709

IVORY,TRIM0#

main74231-0D420-C0iNCP151..GCC..D..B201304-201709

BLACK,TRIM2#

main74231-0D430-C0iNCP150..MA..(D,R)201310-201812

BLACK,TRIM2#

main74231-0D440iNSP151..MA..(G,V)201310-201812

SILVER PAINTED

main74231-0D500-C0iNCP150..TAIW..D201404-201802

BLACK,TRIM2#

main74231-0D510iNSP151..TAIW..(R,V)201404-201802

SILVER PAINTED

main74231-0D600-A0iNCP15#..GCC..R..C201402-201712

IVORY,TRIM0#

main74231-0D600-C0iNCP15#..GCC..R..C201402-201712

BLACK,TRIM2#

main74231-0D610iNSP150,151..GCC..G..C201402-201712

E-SPORT PACKAGE,SILVER PAINTED

main74231-0D610iNSP150,151..CVT..GCC..R..C201402-201712

SILVER PAINTED

main74231-0D620-A0iNSP151..RHD..R..C201312-201712

IVORY,TRIM0#

main74231-0D620-C0iNCP150..TH..D..C;NCP150..RHD..R..C201312-201712

BLACK,TRIM2#

main74231-0D630iNSP151..TH..G..C201312-201712

SILVER PAINTED

main74231-0D640-A0iNCP151..D..C201402-201712

IVORY,TRIM0#

main74231-0D640-C0iNCP15#..(GCC,IDN)..D..C201312-201712

BLACK,TRIM2#

main74231-0D770iNSP150,151..I202003-202406

main74231-0DA40iNSP150..RHD..(D,R)..A201710-202207

main74231-0DA50iNSP152201708-202009

main74231-0DA60iNSP150..5F..G..A201708-202207

main74231-0DA70iNSP150..5F..GCC..D..A201710-202207

main74231-0DA80iNSP151..GEN..R201710-202207

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main74231-0DA80iNSP150,151..LHD..G..(A,D,E)201710-202207

LAOS SPEC

main74231-0DA80iNSP150,151..LHD..G..(A,D,E)201710-202207

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main74231-0DA80iNSP150,151..LHD..G..(A,D,E)201710-202207

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main74231-0DA80iNSP150,151..LHD..G..(A,D,E)201710-202207

MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main74231-0DB00iNSP151..F201803-202101

main74231-0DB30iNSP151..MA..(G,R,V)201901-202011

main74231-0DB40iNSP151..5F..D..C201801-202109

main74231-0DB60iNSP151..IDN..R201801-202207

main74231-0DB80iNSP151..IDN..G201801-202207

BRUNEI SPEC

main74231-0DB90iNSP150..5F..D..C201801-202207

main74231-0DC00iNSP150,151..GCC..G..C201801-202207

E-SPORT PACKAGE(GRADE MARK(S))

main74231-0DC10iNSP151..D..G201804-201908

main74231-0DC20iNSP151..(G,R,V)..G201804-201908

main74231-0DD20iNSP151..(D,R)..H201807-201910

main74231-0DD40iNSP151..(G,V)..H201807-201910

main74231-0DD70iNSP151..MA..D201901-202011

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0D390iNSP150,151..GCC..R..B201709-201712

main74232-0D390-A0iNCP151..PH201307-201807

IVORY,TRIM0#

main74232-0D390-C0iNCP15#..5F..VN201307-201807

BLACK,TRIM2#

main74232-0D400iNCP15#..LHD..(GCC,GEN)..G..B201307-201807

SILVER PAINTED

main74232-0D410-A0iNCP150..IDN..R..B201304-201709

IVORY,TRIM0#

main74232-0D410-C0iNCP15#..RHD..(GEN,TH)..(D,R)..B201304-201709

BLACK,TRIM2#

main74232-0D420iNSP150..RHD..G201304-201709

SILVER PAINTED

main74232-0D430iNSP150..GCC..D..B201709-201712

main74232-0D430-A0iNCP151..GCC..D..B201308-201709

IVORY,TRIM0#

main74232-0D430-A0iNSP150..GCC..D..B201308-201709

J-LO PACKAGE(FOR LATIN AMERICA),IVORY,TRIM0#

main74232-0D430-C0iNCP150..IDN..D..B201304-201709

BLACK,TRIM2#

main74232-0D440-C0iNCP150..MA..(D,R)201310-201812

BLACK,TRIM2#

main74232-0D450iNCP150..MA..(G,V)201310-201812

SILVER PAINTED

main74232-0D510-C0iNCP150..TAIW..D201404-201802

BLACK,TRIM2#

main74232-0D520iNSP151..TAIW..(R,V)201404-201802

SILVER PAINTED

main74232-0D590-A0iNSP150,151..GCC..R..C201402-201712

IVORY,TRIM0#

main74232-0D590-C0iNSP150,151..GCC..R..C201402-201712

BLACK,TRIM2#

main74232-0D600iNCP15#..4FC..GCC..R..C201402-201712

E-SPORT PACKAGE,SILVER PAINTED

main74232-0D600iNCP15#..GCC..G..C201402-201712

SILVER PAINTED

main74232-0D610-A0iNCP150..TH..D..C;NCP150..RHD..R..C201312-201712

IVORY,TRIM0#

main74232-0D610-C0iNSP151..TH..(D,R)..C201312-201712

BLACK,TRIM2#

main74232-0D620iNCP150..RHD..G..C201312-201712

SILVER PAINTED

main74232-0D630-A0iNSP150..D..C201402-201712

IVORY,TRIM0#

main74232-0D630-C0iNCP15#..(GCC,IDN)..D..C201312-201712

BLACK,TRIM2#

main74232-0D750iNSP150,151..I202003-202406

main74232-0DA40iNSP152..HTWC;NSP150..RHD..(D,R)..A201708-202207

main74232-0DA50iNSP151..RHD..A;NSP150..RHD..CVT..G..A201708-202207

main74232-0DA60iNSP150..CVT..GCC..D..A201801-202207

main74232-0DA80iNSP150..D..(D,E)201807-201912

main74232-0DB00iNSP151..5F..E;NSP150..LHD..GEN..D;NSP151..LHD..(D,R)..A;NSP150..LHD..R..(A,D)201710-202207

main74232-0DB10iNSP151..CVT..R..E201808-201912

main74232-0DB30iNSP151..CVT..GEN..R201710-202207

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main74232-0DB30iNSP151..GEN..R201710-202207

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main74232-0DB30iNSP151..GEN..R201710-202207

MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main74232-0DB30iNSP151..GEN..R201710-202207

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main74232-0DB41iNSP151..D..F201803-202101

main74232-0DB50iNSP151..(R,V)..F201803-202101

main74232-0DB70iNSP151..MA201901-202011

main74232-0DB80iNSP151..IDN..R;NSP151..5F..D..C201801-202207

main74232-0DB90iNSP151..IDN..G201801-202207

BRUNEI SPEC

main74232-0DC00iNSP150..CVT..D..C201801-202207

main74232-0DC20iNSP150,151..GCC..R..C201801-202207

main74232-0DC40iNSP151..GCC..R..C201801-202207

E-SPORT PACKAGE(GRADE MARK(S))

main74232-0DC50iNSP151..D..G201804-201908

main74232-0DC60iNSP151..(G,R,V)..G201804-201908

main74232-0DD40iNSP151..(D,R)..H201807-201910

main74232-0DD60iNSP151..(G,V)..H201807-201910

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0D070-A0iNCP151..D..C201402-201712

IVORY,TRIM0#

main74271-0D070-C0iNSP150,151..(GCC,IDN)..D..C201312-201712

BLACK,TRIM2#

main74271-0D170-A0iNCP151..PH201304-201807

IVORY,TRIM0#

main74271-0D170-C0iNSP150..PH201304-201807

BLACK,TRIM2#

main74271-0D180iNSP151..VN..G201304-201807

SILVER PAINTED

main74271-0D190-A0iNCP15#..5F..GEN..D201308-201709

J-LO PACKAGE(FOR LATIN AMERICA),IVORY,TRIM0#

main74271-0D190-A0iNSP150..GCC..D..B201308-201712

IVORY,TRIM0#

main74271-0D190-C0iNCP151..GCC..D..B201304-201712

BLACK,TRIM2#

main74271-0D200-C0iNCP150..MA..(D,R)201310-201812

BLACK,TRIM2#

main74271-0D210iNSP151..MA..(G,V)201310-201812

SILVER PAINTED

main74271-0D270-C0iNSP151..TAIW..D201404-201802

BLACK,TRIM2#

main74271-0D280iNCP150..TAIW..(R,V)201404-201802

SILVER PAINTED

main74271-0D310iNSP150..5F..GCC..D..A201801-202207

main74271-0D320iNSP152..HTWC;NSP150..GCC..R..A;NSP151..LHD..(D,R)..(A,E);NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)201708-202207

main74271-0D350-A0iNCP15#..R..C;NCP150..TH..D..C201312-201712

IVORY,TRIM0#

main74271-0D350-C0iNSP150..R..C;NSP151..(GCC,TH)..(D,R)..C201312-201712

BLACK,TRIM2#

main74271-0D360iNSP151..TH..G..C201312-201712

SILVER PAINTED

main74271-0D370iNSP150,151..I202003-202406

main74271-0D540iNSP150..5F..G..A201708-202207

main74271-0D540iNSP152202009-202207

COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main74271-0D550iNSP151..D..F201803-202101

main74271-0D560iNSP151..(R,V)..F201803-202101

main74271-0D580iNSP151..MA201901-202011

main74271-0D590iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main74271-0D600iNSP151..5F..D..C201801-202207

main74271-0D610iNSP150,151..G..C201801-202207

E-SPORT PACKAGE(GRADE MARK(S))

main74271-0D610iNSP150,151..G..C201801-202207

BRUNEI SPEC

main74271-0D620iNSP151..D..G201804-201908

main74271-0D630iNSP151..(G,R,V)..G201804-201908

main74271-0D640iNSP151..(D,R)..H201807-201910

main74271-0D650iNSP151..(G,V)..H201807-201910

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0D070-A0iNCP151..D..C201402-201712

IVORY,TRIM0#

main74272-0D070-C0iNCP15#..(GCC,IDN)..D..C201312-201712

BLACK,TRIM2#

main74272-0D170-A0iNCP151..GEN..D;NCP151..(GCC,GEN)..R..B;NCP150..(GCC,GEN,TH)..(D,R)..B201304-201807

IVORY,TRIM0#

main74272-0D170-C0iNCP151..PH201304-201807

BLACK,TRIM2#

main74272-0D180iNSP150,151..GCC..G..B201304-201807

SILVER PAINTED

main74272-0D190-A0iNCP151..GCC..D..B201308-201712

IVORY,TRIM0#

main74272-0D190-A0iNSP150..GCC..D..B201308-201709

J-LO PACKAGE(FOR LATIN AMERICA),IVORY,TRIM0#

main74272-0D190-C0iNSP150..GCC..D..B201304-201712

BLACK,TRIM2#

main74272-0D200-C0iNCP150..MA..(D,R)201310-201812

BLACK,TRIM2#

main74272-0D210iNSP151..MA..(G,V)201310-201812

SILVER PAINTED

main74272-0D270-C0iNSP151..TAIW..D201404-201802

BLACK,TRIM2#

main74272-0D280iNSP151..TAIW..(R,V)201404-201802

SILVER PAINTED

main74272-0D310iNSP150..5F..GCC..D..A201801-202207

main74272-0D320iNSP152..HTWCB201708-202207

main74272-0D350-A0iNCP15#..R..C;NCP150..TH..D..C201312-201712

IVORY,TRIM0#

main74272-0D350-C0iNCP15#..R..C;NCP150..TH..D..C201312-201712

BLACK,TRIM2#

main74272-0D360iNSP151..TH..G..C201312-201712

SILVER PAINTED

main74272-0D370iNSP150,151..I202003-202406

main74272-0D540iNSP151..RHD..A;NSP150..CVT..G..A;NSP151..LHD..G..(A,D,E)201708-202207

main74272-0D540iNSP151..GEN..R202009-202207

COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main74272-0D550iNSP151..D..F201803-202101

main74272-0D560iNSP151..(R,V)..F201803-202101

main74272-0D580iNSP151..MA201901-202011

main74272-0D590iNSP151..5F..D..C201801-202207

main74272-0D600iNSP150,151..R..C201801-202207

main74272-0D610iNSP151..GCC..R..C201801-202207

BRUNEI SPEC

main74272-0D610iNSP150,151..G..C201801-202207

E-SPORT PACKAGE(GRADE MARK(S))

main74272-0D620iNSP151..D..G201804-201908

main74272-0D630iNSP151..(G,R,V)..G201804-201908

main74272-0D640iNSP151..(D,R)..H201807-201910

main74272-0D650iNSP151..(G,V)..H201807-201910

4 parts on this diagram · 3 diagrams in section
