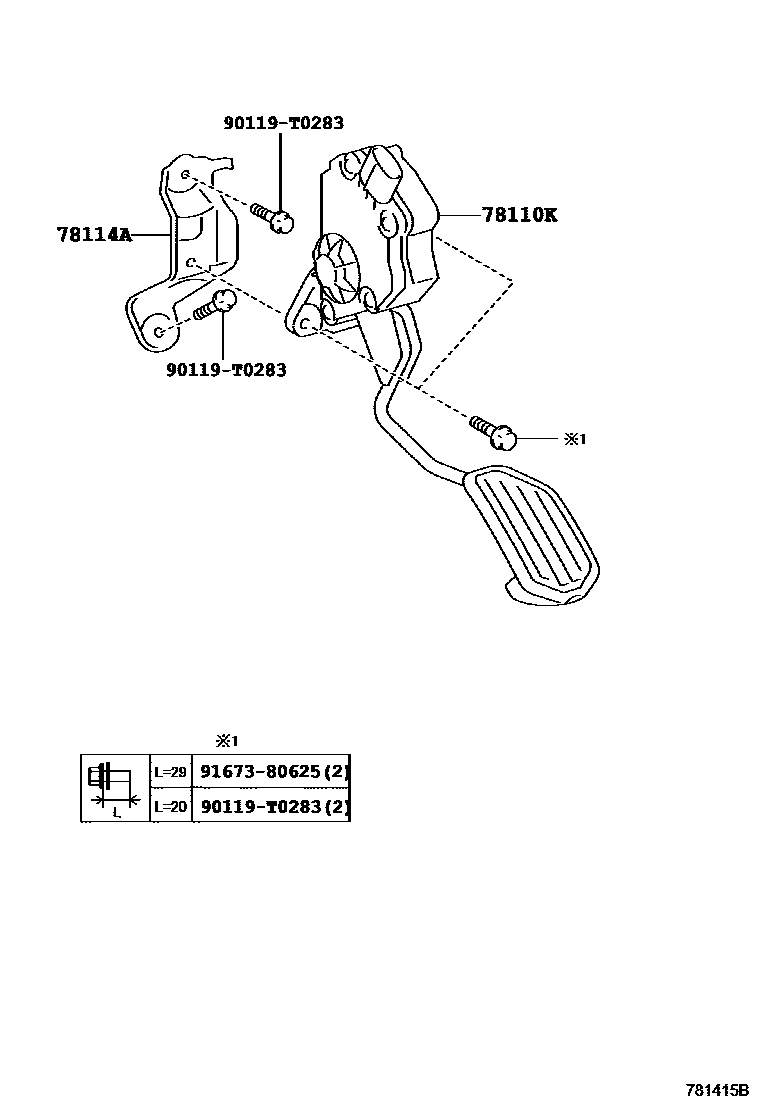

Toyota YARIS/VIOS/LIMO — ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0D130iNCP150..IDN..C;NCP15#..RHD..(GEN,MA,TH)201307-201603

sub78110-0D260¥6,800

main78110-0D190iNCP150201304-201307

sub78110-0D130

main78110-0D200iNCP15#..LHD¥10,900201307-201603

sub78110-0D210

main78110-0D210iNSP150..5F..GCC..D..(A,C)201604-202207

main78110-0D260iNSP150..5F..G..A;NSP151..CVT..D..C¥6,800201604-202406

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-0D040iNSP152..HTWC;NSP150,151..MA,PKN201304-202406

main78114-0D060iNSP151..G201804-201908

main78114-0D080iNCP150..RHD..C201312-202207

90119T0283

main90119-T0283

9167380625

main91673-80625¥80

4 parts on this diagram · 2 diagrams in section
