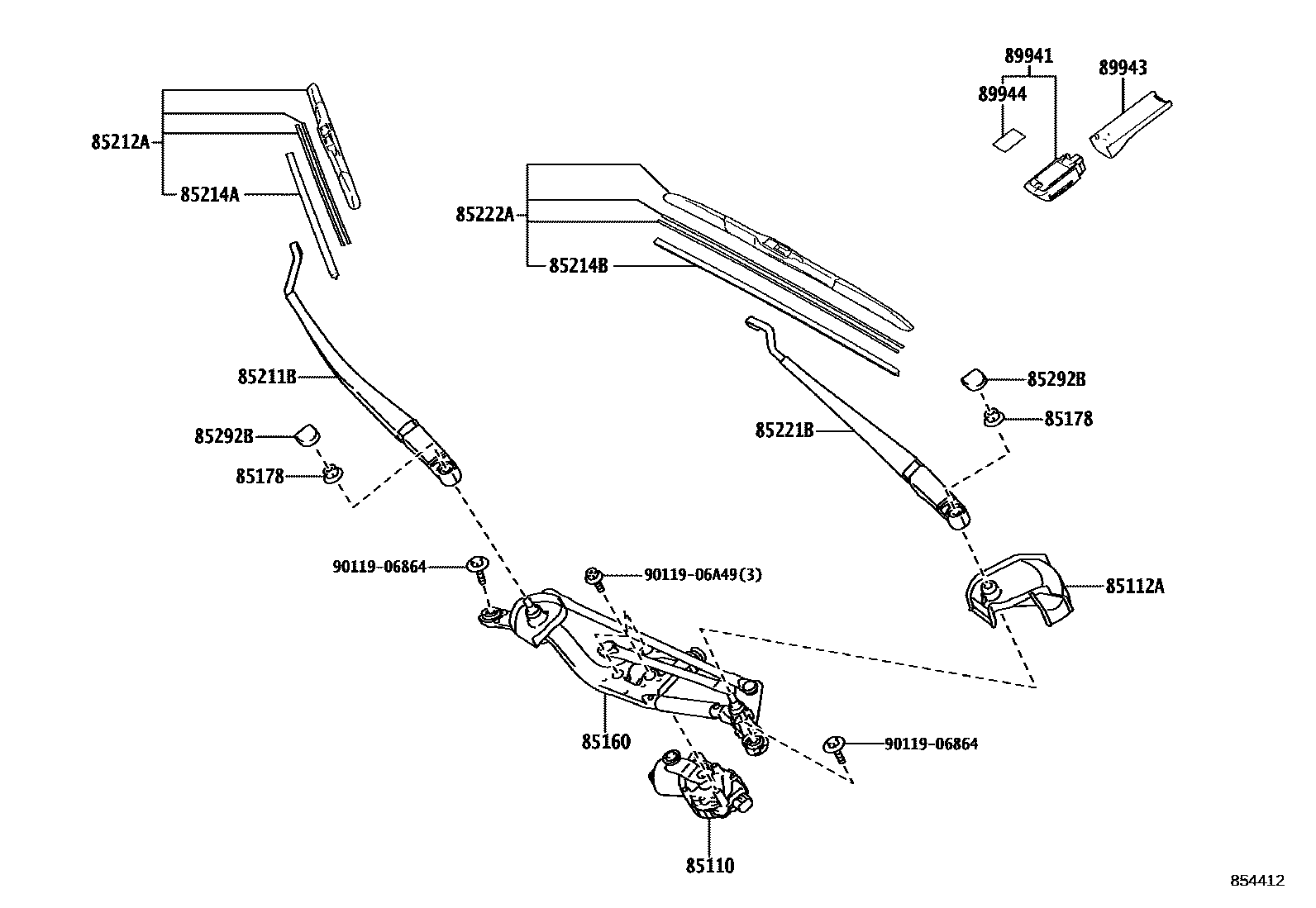

Toyota YARIS GR — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
89941SENSOR, RAIN
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
ACTIVE SAFETY PACKAGE-WITHOUT
89943COVER, RAIN SENSOR
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
ACTIVE SAFETY PACKAGE-WITHOUT
89944TAPE, RAIN SENSOR
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
ACTIVE SAFETY PACKAGE-WITHOUT
9011906864
9011906A49
main90119-06A49
16 parts on this diagram · 3 diagrams in section
