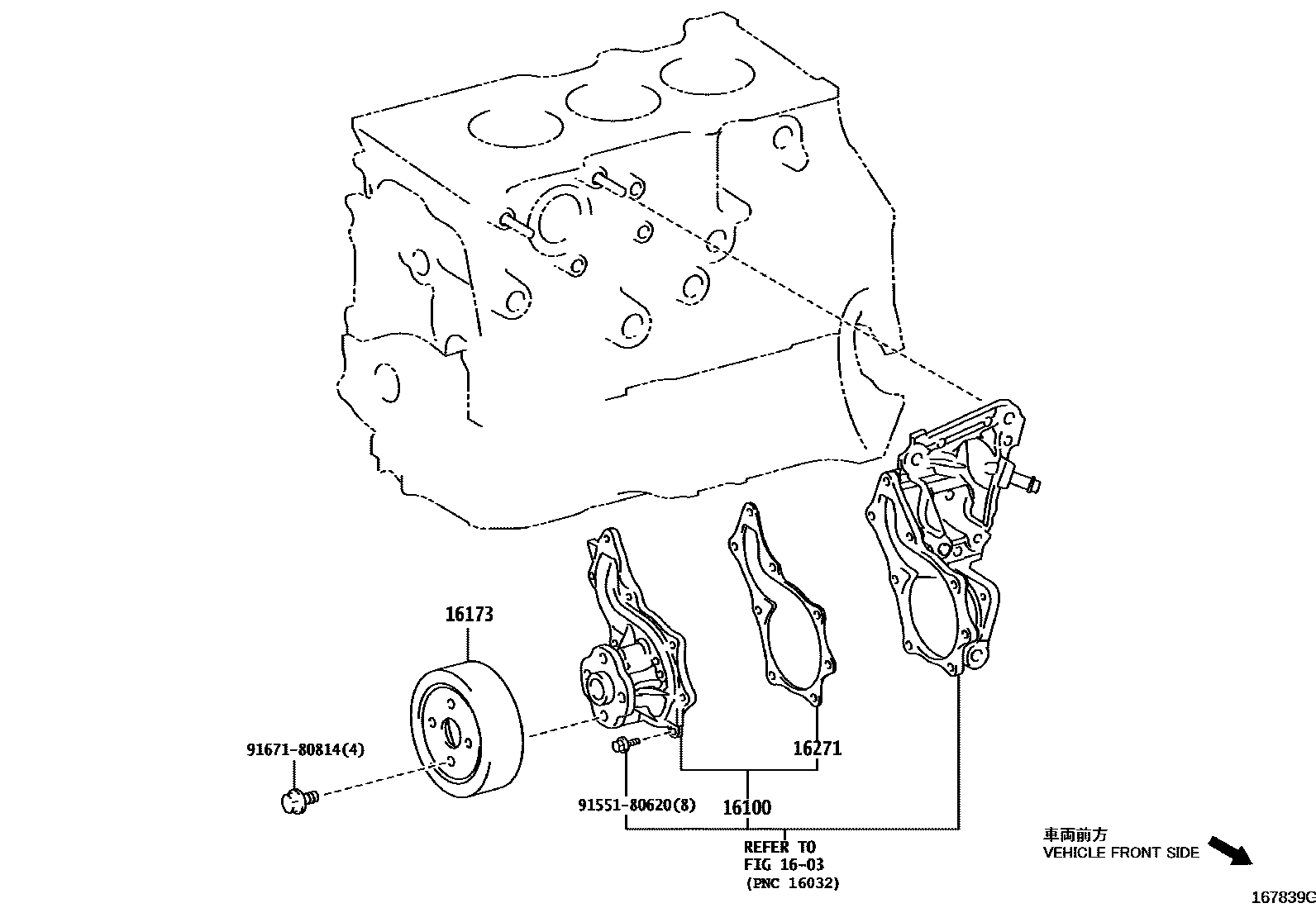

Toyota YARIS GR — WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-19385iG16EGTS..GXPA16¥9,600202008-202404

16173PULLEY, WATER PUMP

main16173-18010iG16EGTS..GXPA16¥2,250202008-202404

16271GASKET, WATER PUMP

main16271-18010iG16EGTS..GXPA16¥600202008-202404

9155180620

main91551-80620¥60

9167180814

main91671-80814¥80

6 parts on this diagram · 1 diagram in section
