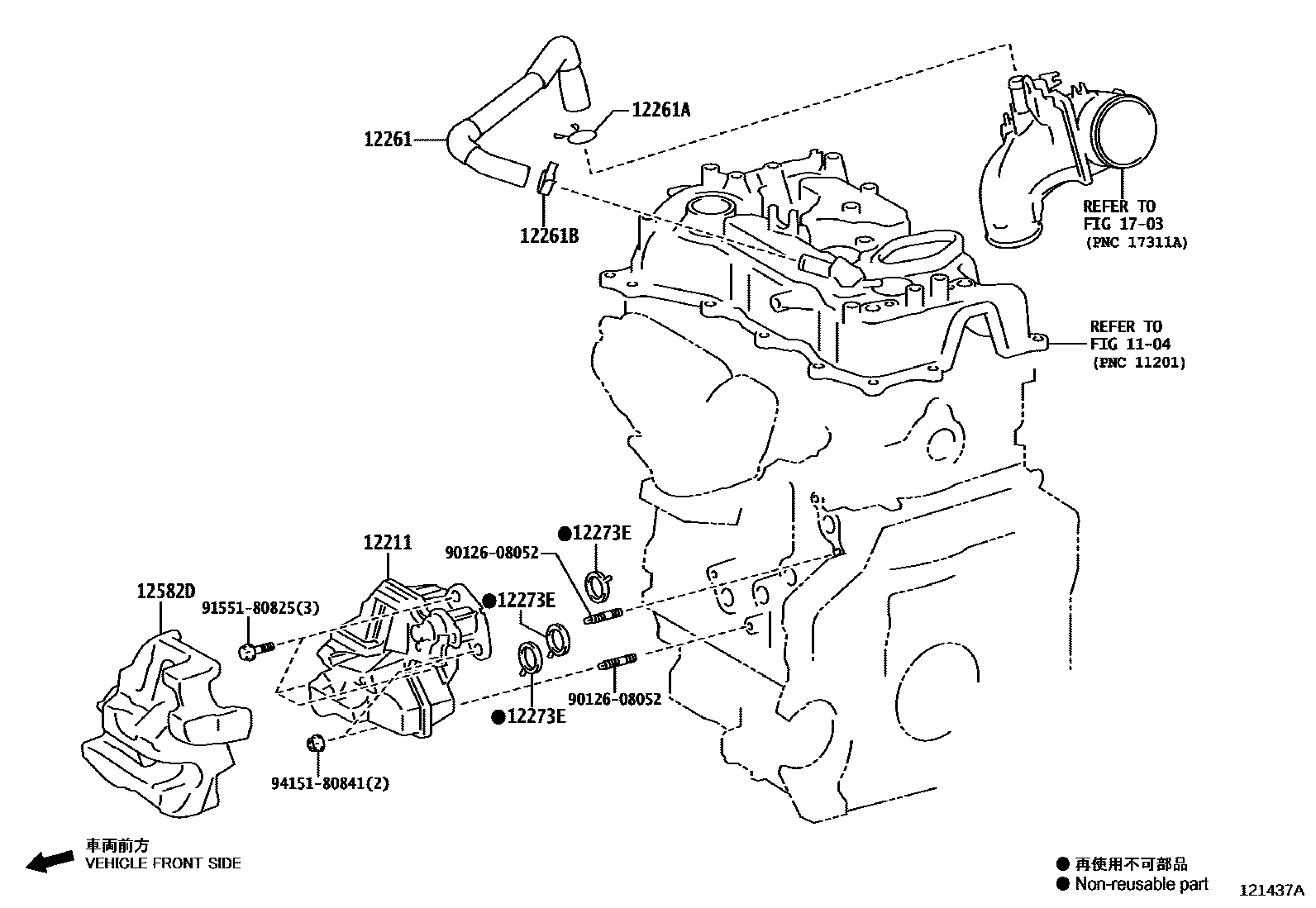

Toyota YARIS GR — VENTILATION HOSE

1104

12211CASE, VENTILATION, NO.1

main12211-18010iG16EGTS..GXPA16¥6,600202008-202505

12261HOSE, VENTILATION

main12261-18010iG16EGTS..GXPA16¥1,550202008-202404

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-24038iG16EGTS..GXPA16¥180202008-202404

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main96136-42201iG16EGTS..GXPA16¥180202008-202404

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iG16EGTS..GXPA16¥340202008-202505

12582DINSULATOR, CYLINDER BLOCK, NO.2

main12582-18010iG16EGTS..GXPA16¥2,420202008-202404

1703

9012608052

main90126-08052¥80

9155180825

main91551-80825¥80

9415180841

main94151-80841¥80

11 parts on this diagram · 1 diagram in section
