Toyota YARIS GR — STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
AFRICA RHD BSM(OPT) SPEC
SOUTH AFRICA SPEC
BURNEI SPEC
MAURITIUS,ZIMBABWE
SEICHELLES SPEC
AFRICA RHD L/BSM SPEC
THAILAND SPEC
SINGAPORE SPEC
INDONESIA SPEC
MALAYSIA SPEC
KENYA SPEC
MALTA SPEC
IRELAND, CYPRUS SPEC
IRELAND,CYPRUS SPEC
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
45253COVER, STEERING COLUMN HOLE
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
AFRICA RHD BSM(OPT) SPEC
THAILAND SPEC
SINGAPORE SPEC
INDONESIA SPEC
MALAYSIA SPEC
KENYA SPEC
SOUTH AFRICA SPEC
BURNEI SPEC
MAURITIUS,ZIMBABWE
SEICHELLES SPEC
AFRICA RHD L/BSM SPEC
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
SEICHELLES SPEC
AFRICA RHD L/BSM SPEC
AFRICA RHD BSM(OPT) SPEC
THAILAND SPEC
SINGAPORE SPEC
INDONESIA SPEC
MALAYSIA SPEC
KENYA SPEC
SOUTH AFRICA SPEC
BURNEI SPEC
MAURITIUS,ZIMBABWE
45897ABOLT, TILT STEERING PAWL SET
8401
9011910985
9017810027
9046706188
90467W0005
91511B0825
9356855014

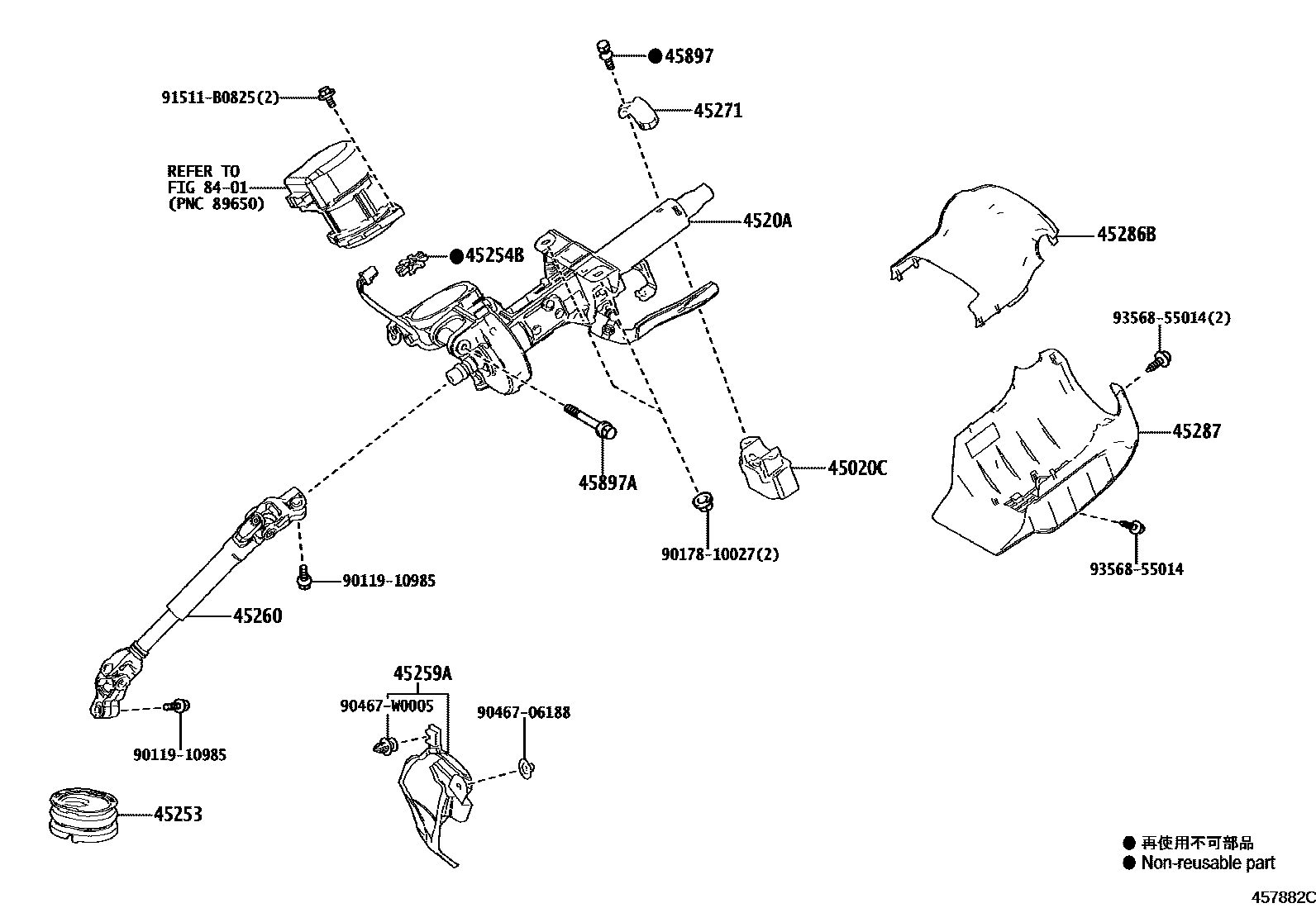

18 parts on this diagram · 2 diagrams in section
