Toyota YARIS GR — SHORT BLOCK ASSEMBLY

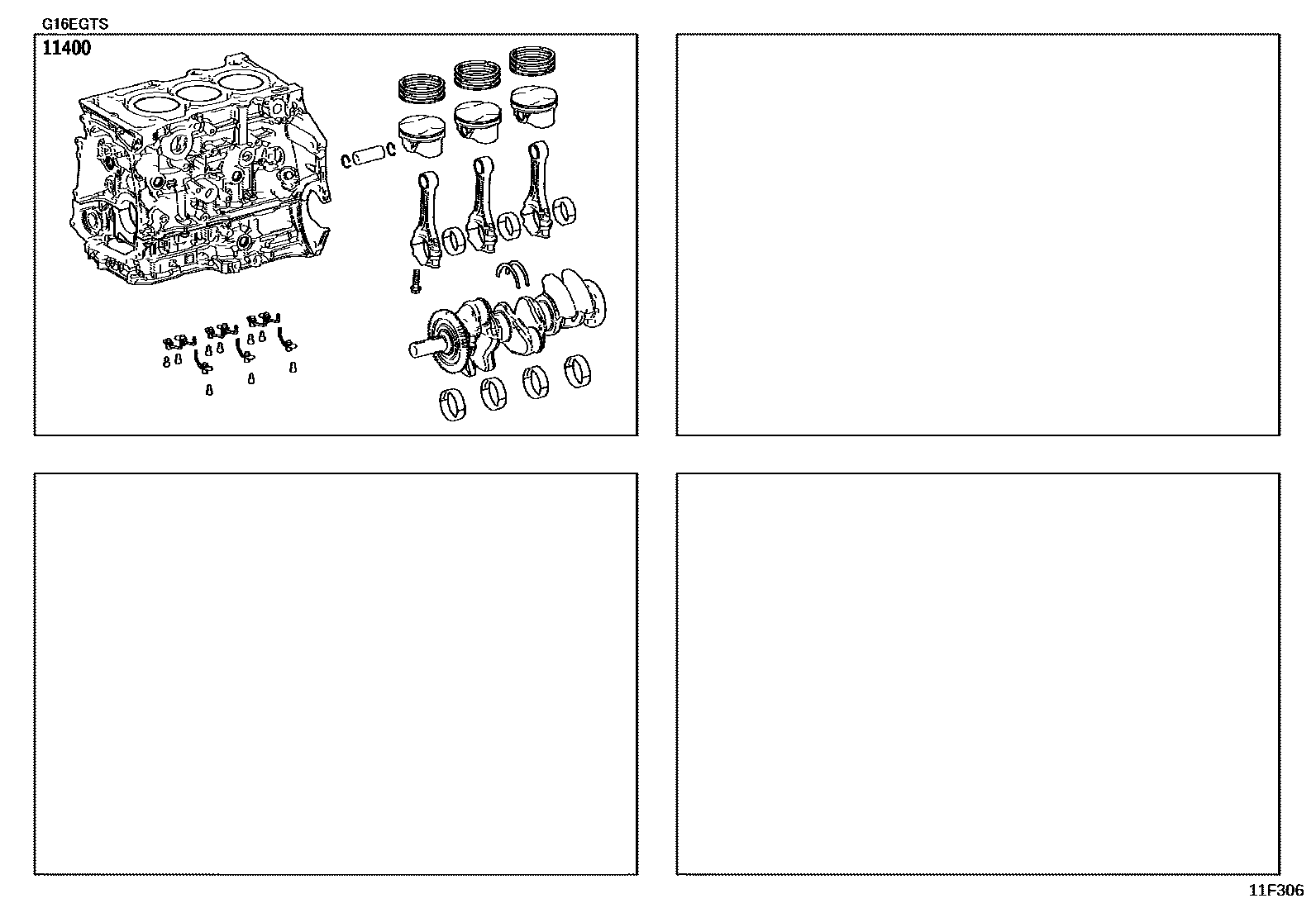

Parts diagram

11400BLOCK ASSY, SHORT

main11400-18050i¥257,000202008-202206

sub11400-18051¥257,000

sub11361-18010¥800

main11400-18051i¥257,000202206-202404

main11400-18060i¥224,000202404-202411

main11400-18062i¥224,000202411

1 parts on this diagram · 1 diagram in section
