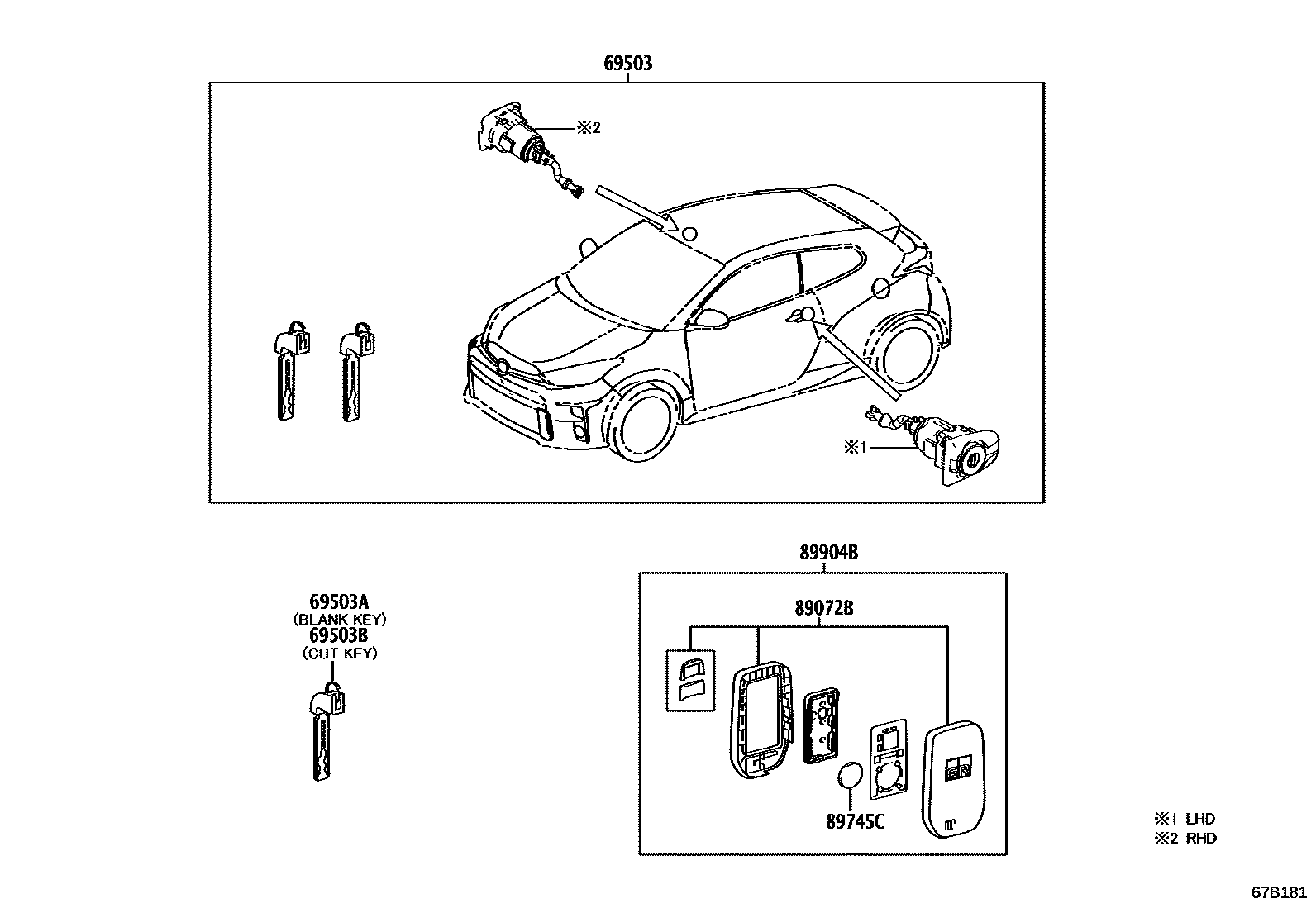

Toyota YARIS GR — LOCK CYLINDER SET

0001 1WITH(SMART ENTRY) 0002 1WITHOUT(SMART ENTRY)

69503CYLINDER SET, LOCK

main69051-52660iGXPA16..RHD..EUR202008-202404

main69052-52400iGXPA16..LHD202008-202404

main89704-52Q30iGXPA16..ARL202008-202112

69503AKEY, BLANK

main69515-K0020iGXPA16¥6,500202008-202404

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-K0010iGXPA16..EUR¥7,100202008-202404

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-52B30iGXPA16..ARL¥6,500202112-202404

main89072-52B40iGXPA16..EUR202008-202301

main89072-52B41iGXPA16..EUR202302-202404

89745CBATTERY, TRANSMITTER

main89745-K0010iGXPA16..ARL¥440202112-202404

CR2450

main89745-K0020iGXPA16..EUR¥440202008-202404

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-52090iGXPA16..ARL202112-202307

main8990H-52091iGXPA16..ARL202308-202404

MEXICO SPEC

main8990H-52110iGXPA16..EUR202008-202301

main8990H-52111iGXPA16..EUR202302-202312

main8990H-52112iGXPA16..EUR202401-202404

main8990H-52120iGXPA16..ARL,CHI202410

6 parts on this diagram · 2 diagrams in section
