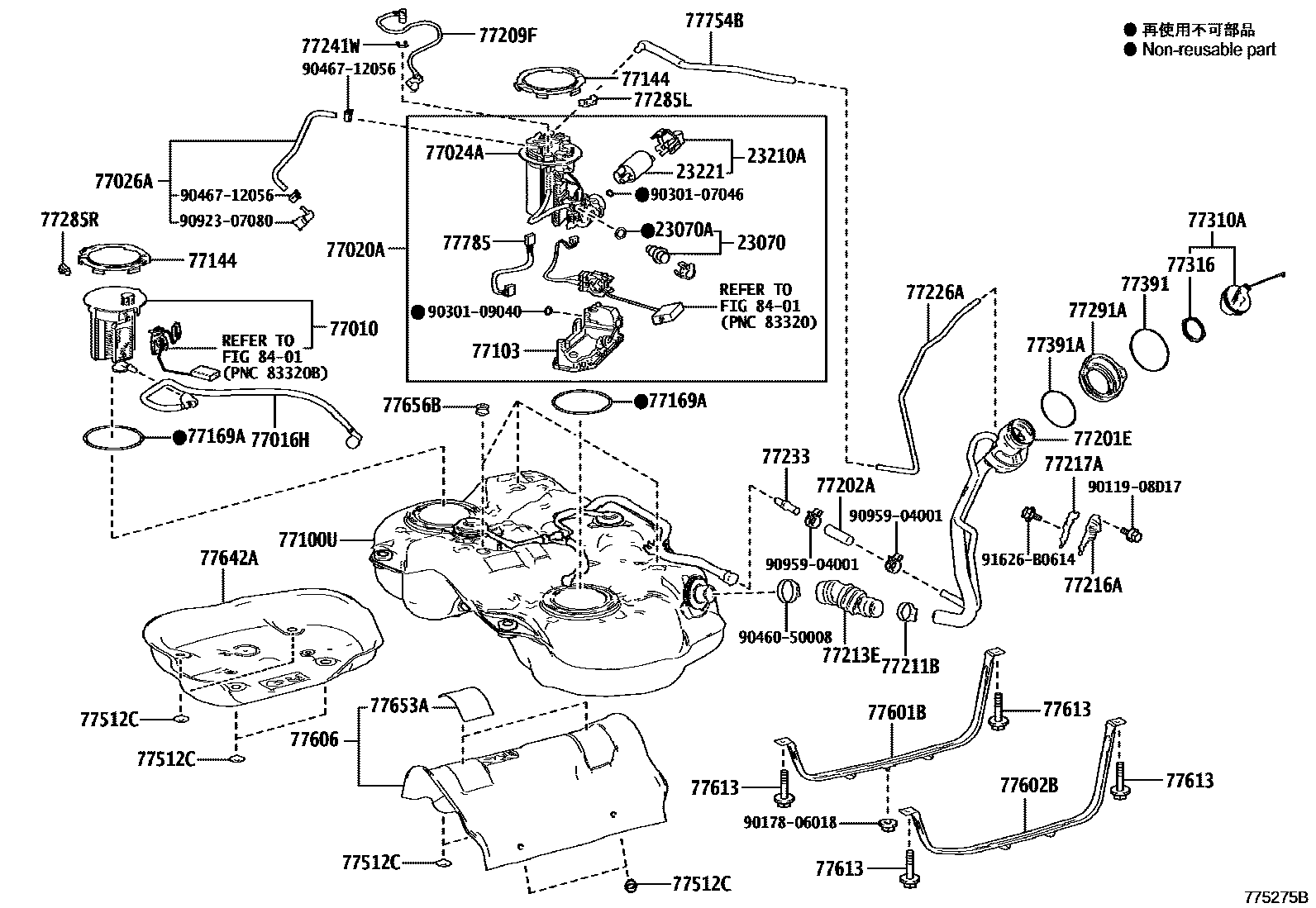

Toyota YARIS GR — FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
23221PUMP, FUEL
77010TUBE ASSY, FUEL TANK VENT
77016HTUBE SUB-ASSY, FUEL RETURN VENT
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100UTANK SUB-ASSY, FUEL
77103SUB-TANK SUB-ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=70
L=70
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77233JOINT, FUEL HOSE
77241WCLIP, TUBE JOINT
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613BOLT, FUEL TANK BAND SET
77642APROTECTOR, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77656BCUSHION, FUEL TANK, NO.6
77754BHOSE, CHARCOAL CANISTER OUTLET
8401
9011908D17
9017806018
9030107046
9030109040
9046050008
9046712056
9092307080
9095904001
91626B0614
