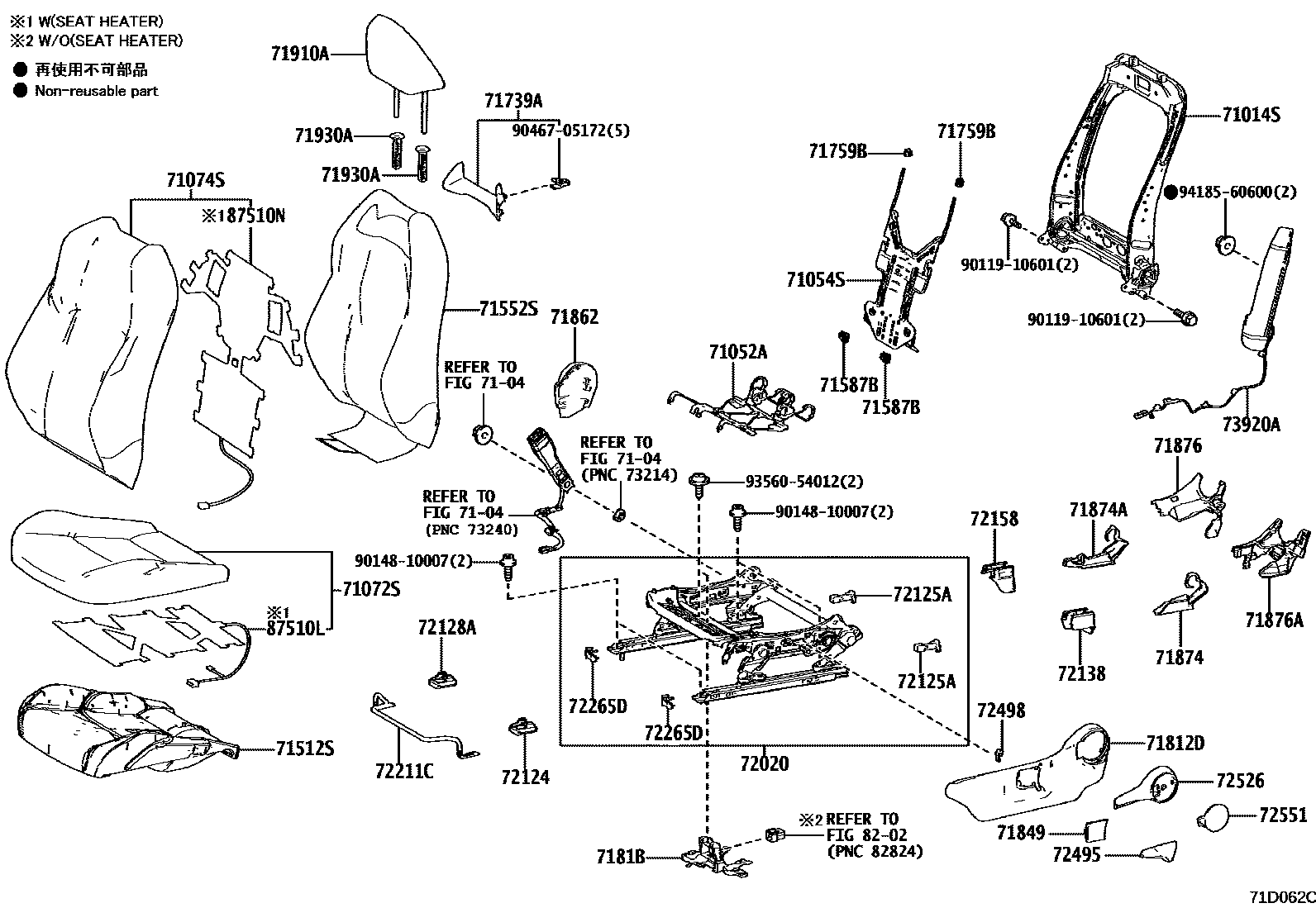

Toyota YARIS GR — FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
BLACK/GRAY,TRIM2#
HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#
"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/RED,TRIM3#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM20
BLACK/RED,TRIM3#
BLACK/BLUE/ECRU,TRIM20
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/RED,TRIM3#
BLACK/RED,TRIM3#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#
"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
BLACK/RED,TRIM3#
BLACK/GRAY,TRIM20
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
PARKING BRAKE-LEVER FOR COMPETITION,BLACK/GRAY,TRIM2#
BLACK/RED,TRIM3#
BLACK/RED,TRIM3#
PARKING BRAKE-LEVER FOR COMPETITION,BLACK/RED,TRIM3#
BLACK/BLUE/ECRU,TRIM20
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71587BPROTECTOR, FRONT SEATBACK EDGE
71739ABEZEL, FRONT SEATBACK
71759BHOOK, FRONT SEATBACK
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
71849CAP, SEAT ADJUSTER COVER, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
71876COVER, RECLINING ADJUSTER INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,3#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
BLACK/GRAY,TRIM2#
HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/GR RED,TRIM21
HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK/GR RED,TRIM21
HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK/GR RED,TRIM21
HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR),BLACK/GR RED,TRIM21
HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR)&SEAT HEATER-WITH,BLACK/GR RED,TRIM21
HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK/GR RED,TRIM21
HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK/GR RED,TRIM21
HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK/GR RED,TRIM21
"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK/GR RED,TRIM21
"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK/GR RED,TRIM21
"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK/GR RED,TRIM21
"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK/GR RED,TRIM21
HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK/GRAY,TRIM20
HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR),BLACK/GRAY,TRIM20
HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR)&SEAT HEATER-WITH,BLACK/GRAY,TRIM20
HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM20
HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK/GRAY,TRIM20
HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK/GRAY,TRIM20
HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK/GRAY,TRIM20
"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM20
"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK/GRAY,TRIM20
"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK/GRAY,TRIM20
"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK/GRAY,TRIM20
HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM20
BLACK/RED,TRIM3#
BLACK/GRAY,TRIM2#
BLACK/GR RED,TRIM3#
BLACK/GRAY,TRIM2#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
W(LOCK),BLACK,TRIM2#,3#
W(LOCK),BLACK,TRIM2#
W(LOCK),BLACK,TRIM2#,3#
W/O(LOCK),BLACK,TRIM2#,3#
W/O(LOCK),BLACK,TRIM2#,3#
W/O(LOCK),BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,3#
72125ACOVER, SEAT TRACK, UPPER REAR
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,3#
72138COVER, SEAT TRACK, OUTER LH
BLACK,TRIM2#
72158COVER, SEAT TRACK BRACKET, INNER LH
72211CHANDLE, SEAT TRACK ADJUSTING
72265DCOVER, SEAT TRACK UPPER RAIL
72495HANDLE, VERTICAL ADJUSTING, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
72498COVER, VERTICAL ADJUSTER BRACKET
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
BLACK,TRIM2#,3#
BLACK,TRIM2#
72551COVER, RECLINING HINGE, NO.1
73920AAIRBAG ASSY, FRONT SEAT, LH
8202
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510NHEATER ASSY, FRONT SEATBACK, LH
9011910601
9014810007
9046705172
9356054012
9418560600
42 parts on this diagram · 4 diagrams in section
