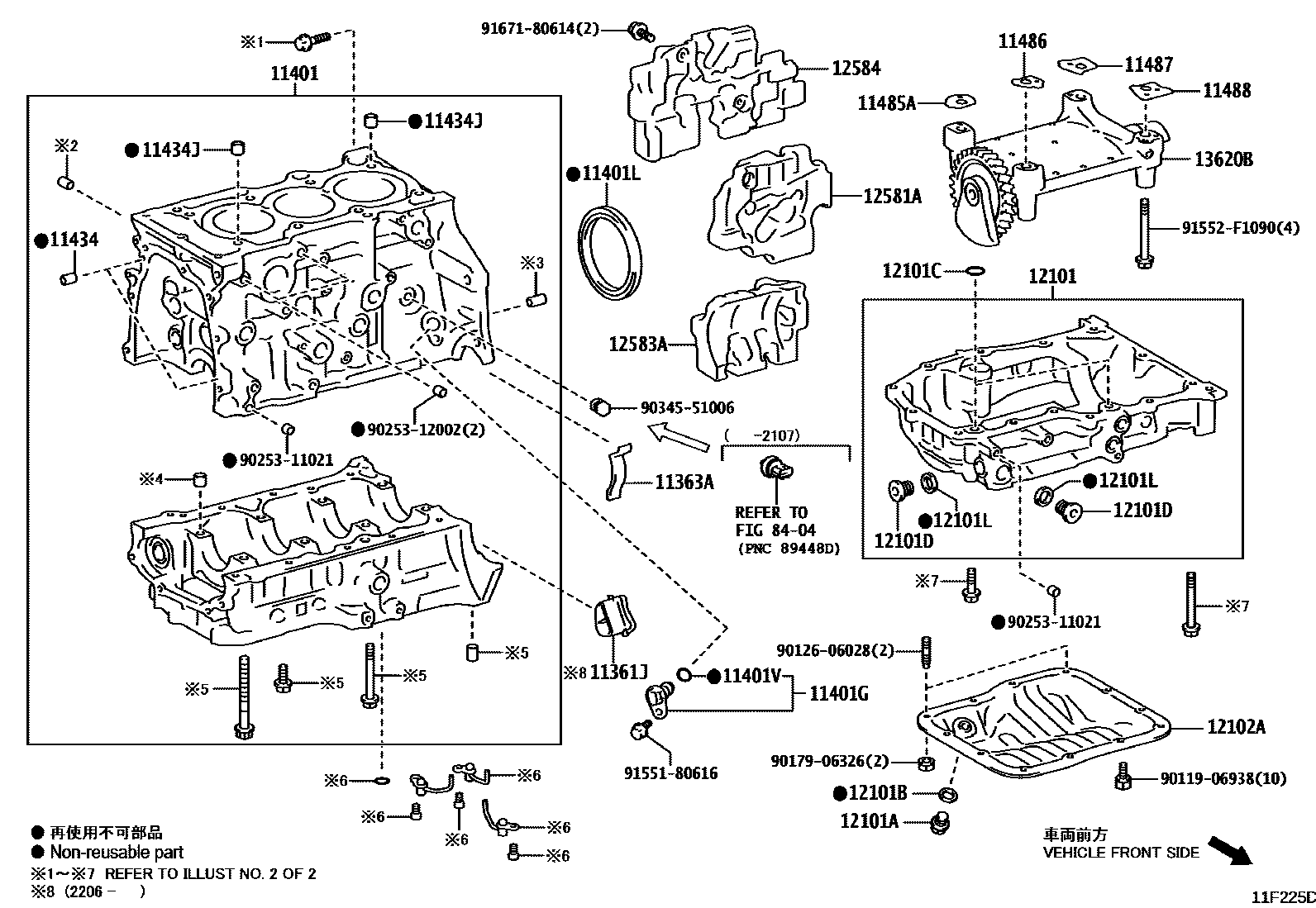

Toyota YARIS GR — CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
11401LSEAL, ENGINE REAR OIL
11401VO-RING, CRANK POSITION SENSOR
11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)
11434JPIN, RING (FOR CYLINDER HEAD SET)
11485ASPACER, BALANCESHAFT HOUSING
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
MARK 10
MARK 11
MARK 12
MARK 13
MARK 14
MARK 15
MARK 16
MARK 17
MARK 18
MARK 19
MARK 20
MARK 21
MARK 22
MARK 23
MARK 24
MARK 25
MARK 26
MARK 27
MARK 28
MARK 29
MARK 30
MARK 31
MARK 32
MARK 33
MARK 34
MARK 35
MARK 36
MARK 37
MARK 38
MARK 39
MARK 40
11486SPACER, BALANCESHAFT HOUSING, NO.2
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
MARK 10
MARK 11
MARK 12
MARK 13
MARK 14
MARK 15
MARK 16
MARK 17
MARK 18
MARK 19
MARK 20
MARK 21
MARK 22
MARK 23
MARK 24
MARK 25
MARK 26
MARK 27
MARK 28
MARK 29
MARK 30
MARK 31
MARK 32
MARK 33
MARK 34
MARK 35
MARK 36
MARK 37
MARK 38
MARK 39
MARK 40
11487SPACER, BALANCESHAFT HOUSING, NO.3
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
MARK 10
MARK 11
MARK 12
MARK 13
MARK 14
MARK 15
MARK 16
MARK 17
MARK 18
MARK 19
MARK 20
MARK 21
MARK 22
MARK 23
MARK 24
MARK 25
MARK 26
MARK 27
MARK 28
MARK 29
MARK 30
MARK 31
MARK 32
MARK 33
MARK 34
MARK 35
MARK 36
MARK 37
MARK 38
MARK 39
MARK 40
11488SPACER, BALANCESHAFT HOUSING, NO.4
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
MARK 10
MARK 11
MARK 12
MARK 13
MARK 14
MARK 15
MARK 16
MARK 17
MARK 18
MARK 19
MARK 20
MARK 21
MARK 22
MARK 23
MARK 24
MARK 25
MARK 26
MARK 27
MARK 28
MARK 29
MARK 30
MARK 31
MARK 32
MARK 33
MARK 34
MARK 35
MARK 36
MARK 37
MARK 38
MARK 39
MARK 40
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101CRING, O(FOR OIL PAN)
12101DPLUG NO.1(FOR OIL PAN)
12101LGASKET NO.1(FOR OIL PAN)
12102APAN SUB-ASSY, OIL, NO.2
12581AINSULATOR, CYLINDER BLOCK, NO.1
12583AINSULATOR, CYLINDER BLOCK, NO.3
12584INSULATOR, CYLINDER BROCK, NO.4
13620BBALANCER ASSY, ENGINE
8404
9011906938
9012606028
9017906326
9025311021
9025312002
9034551006
9155180616
91552F1090
9167180614
33 parts on this diagram · 2 diagrams in section
