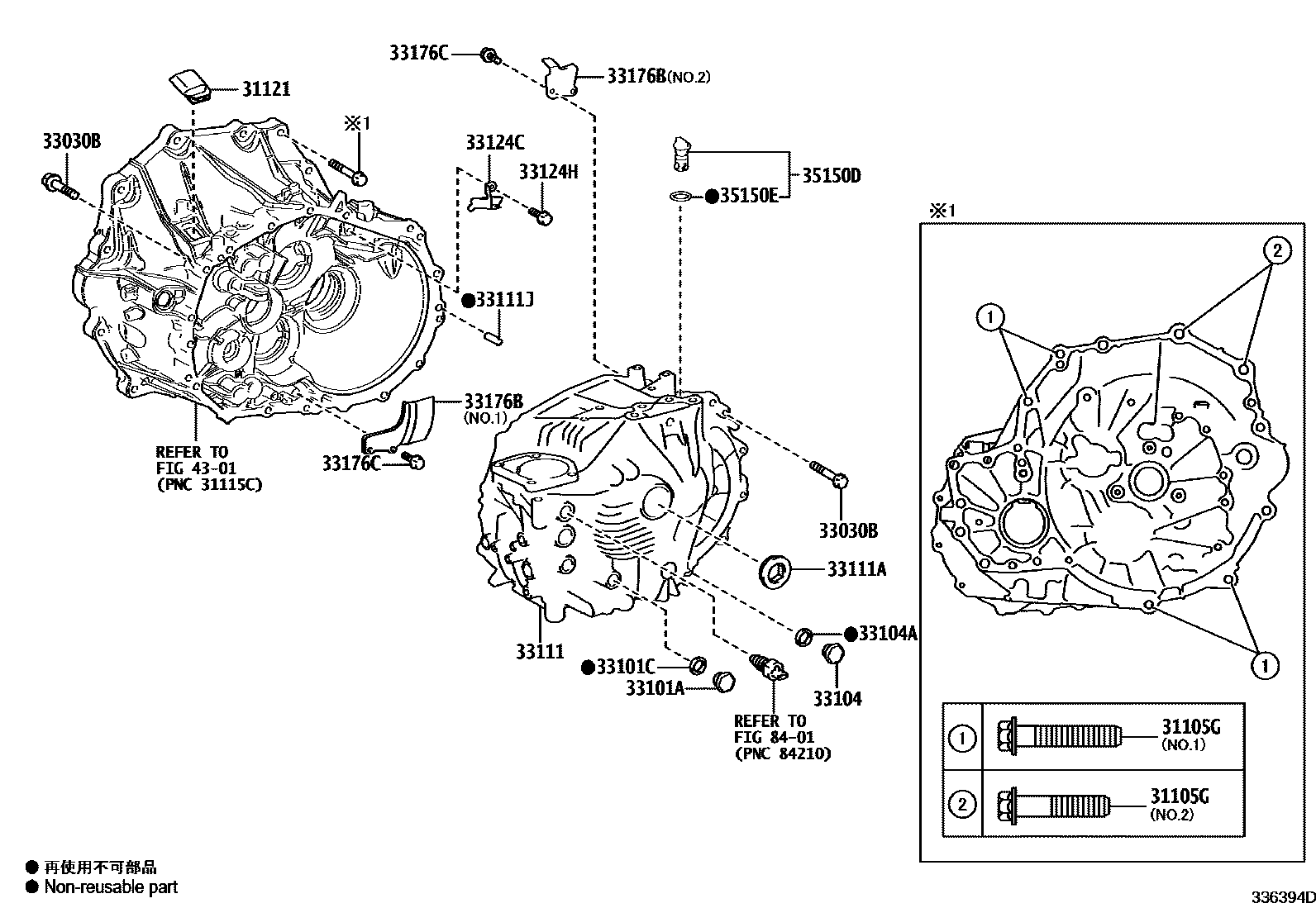

Toyota YARIS GR — CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX45-36,NO.1:REFER ILLUST.
*10-1.25PX45-36,NO.1:REFER ILLUST.
*12-1.25PX50-30,NO.2:REFER ILLUST.
*12-1.25PX50-30,NO.2:REFER ILLUST.
31121COVER, CLUTCH HOUSING, NO.1
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
*8-1.25PX45-27.5
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
L=23,OD=8
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
35150DPLUG ASSY, TRANSMISSION CASE
35150ERING, O (FOR TRANSMISSION CASE PLUG)
4301
8401
18 parts on this diagram · 1 diagram in section
