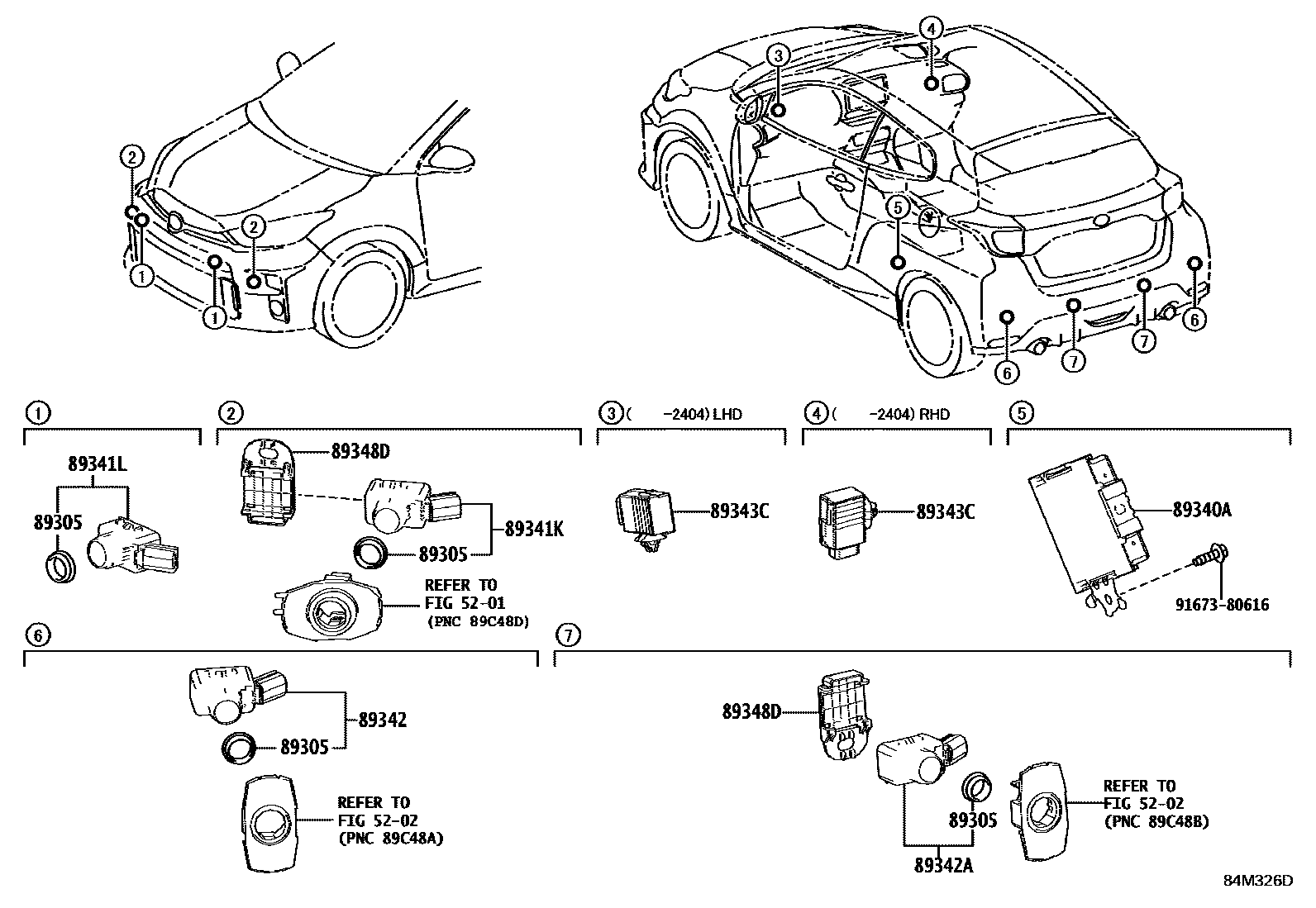

Toyota YARIS GR — CLEARANCE & BACK SONAR

5201

5202

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010¥90

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341KSENSOR, ULTRASONIC, FRONT CORNER

89341LSENSOR, ULTRASONIC, FRONT CENTER

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-K0060¥6,500

89342ASENSOR, ULTRASONIC, REAR CENTER

89343CBUZZER, CLEARANCE WARNING, NO.1

89348DCLIP, ULTRASONIC SENSOR

9167380616

main91673-80616¥60

11 parts on this diagram · 1 diagram in section
