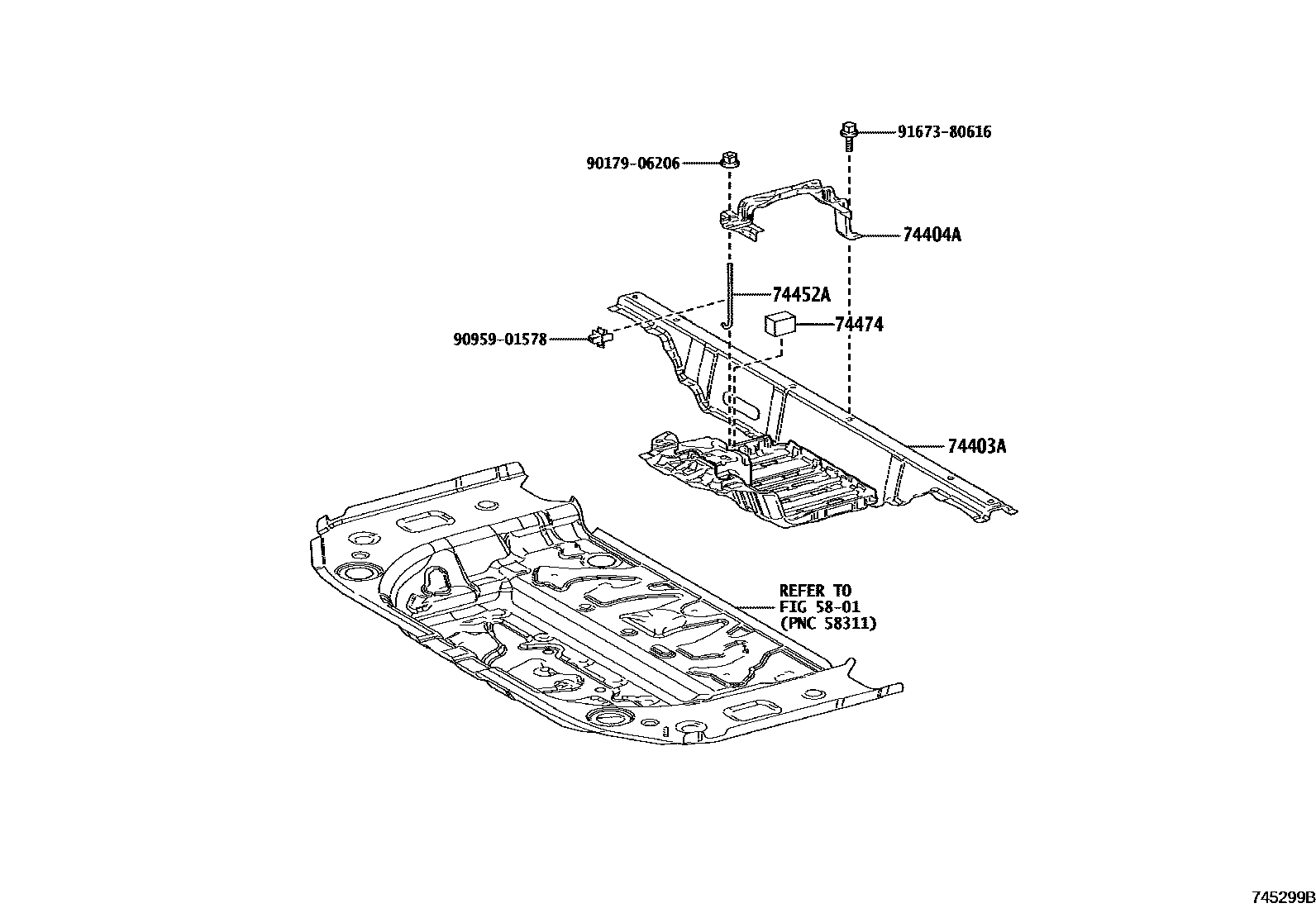

Toyota YARIS GR — BATTERY CARRIER

0001 1 0002 1CHI OR BRAZIL SPEC

5801

74403ACARRIER SUB-ASSY, BATTERY

main74403-12030iGXPA16..CHI¥6,400202412

main74403-52060iGXPA16¥6,700202008-202404

74404ACLAMP SUB-ASSY, BATTERY

main74404-12580iGXPA16..CHI¥1,760202412

main74404-52160iGXPA16¥1,760202008-202404

74452ABOLT, BATTERY CLAMP, NO.2

main74452-30010iGXPA16¥220202008-202404

74474PAD, BATTERY

main52462-30130iGXPA16..ARL,EUR¥250202404

9017906206

main90179-06206¥70

9095901578

main90959-01578¥70

9167380616

main91673-80616¥60

8 parts on this diagram · 2 diagrams in section
