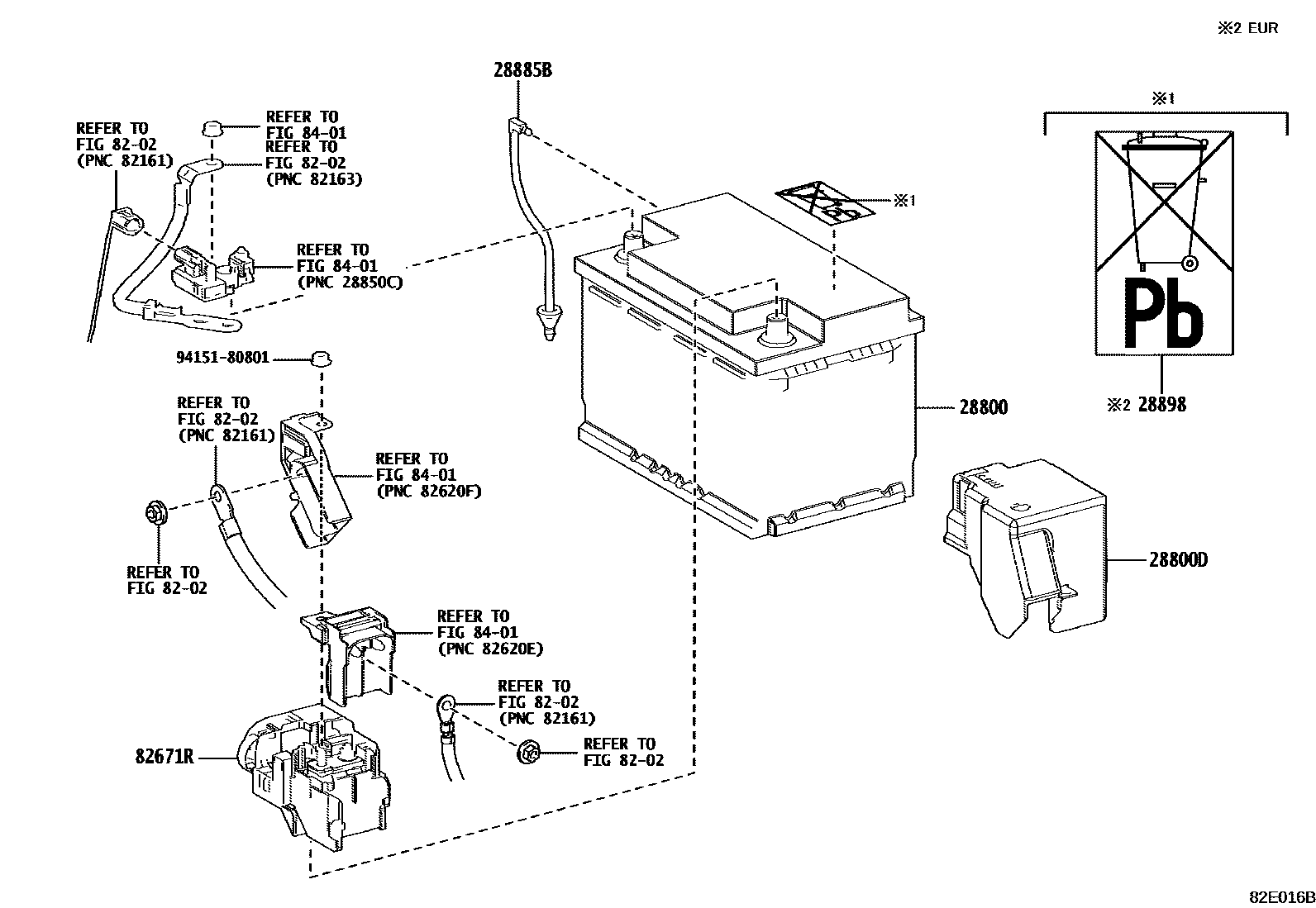

Toyota YARIS GR — BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1

28800BATTERY

main28800-31573iG16EGTS..GXPA16..ARL,EUR¥35,300202404

LN2

main28800-36220iG16EGTS..GXPA16202008-202302

LN3

sub28800-36221

main28800-36221iG16EGTS..GXPA16202303-202403

LN3

sub28800-36222

main28800-36222iG16EGTS..GXPA16..CHI202412

LN3

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50730iG16EGTS..GXPA16¥1,260202112-202404

main82821-50730iG16EGTS..GXPA16¥1,260202008-202111

main82821-50730iG16EGTS..GXPA16..ARL,EUR¥1,260202404

main82821-50730iG16EGTS..GXPA16..CHI¥1,260202412

28885BHOSE, BATTERY

main28885-18010iG16EGTS..GXPA16¥1,090202008-202404

main28885-18040iG16EGTS..GXPA16..ARL,EUR¥1,800202404

main28885-18060iG16EGTS..GXPA16..CHI202412

28898PLATE, BATTERY

main28897-38060iG16EGTS..GXPA16..CHI¥140202412

main28898-16020iG16EGTS..GXPA16..EUR¥110202008-202404

main28898-16020iG16EGTS..GXPA16..EUR¥110202404-202505

TYPE A:REFER ILLUST.

8202

82671RSTOPPER, BATTERY TERMINAL

main82651-50010iGXPA16..CHI¥2,000202412

main82651-50010iGXPA16¥2,000202112-202404

main82651-50010iGXPA16¥2,000202008-202111

main82651-50010iGXPA16..ARL,EUR¥2,000202404

8401

9415180801

main94151-80801¥80

8 parts on this diagram · 3 diagrams in section
