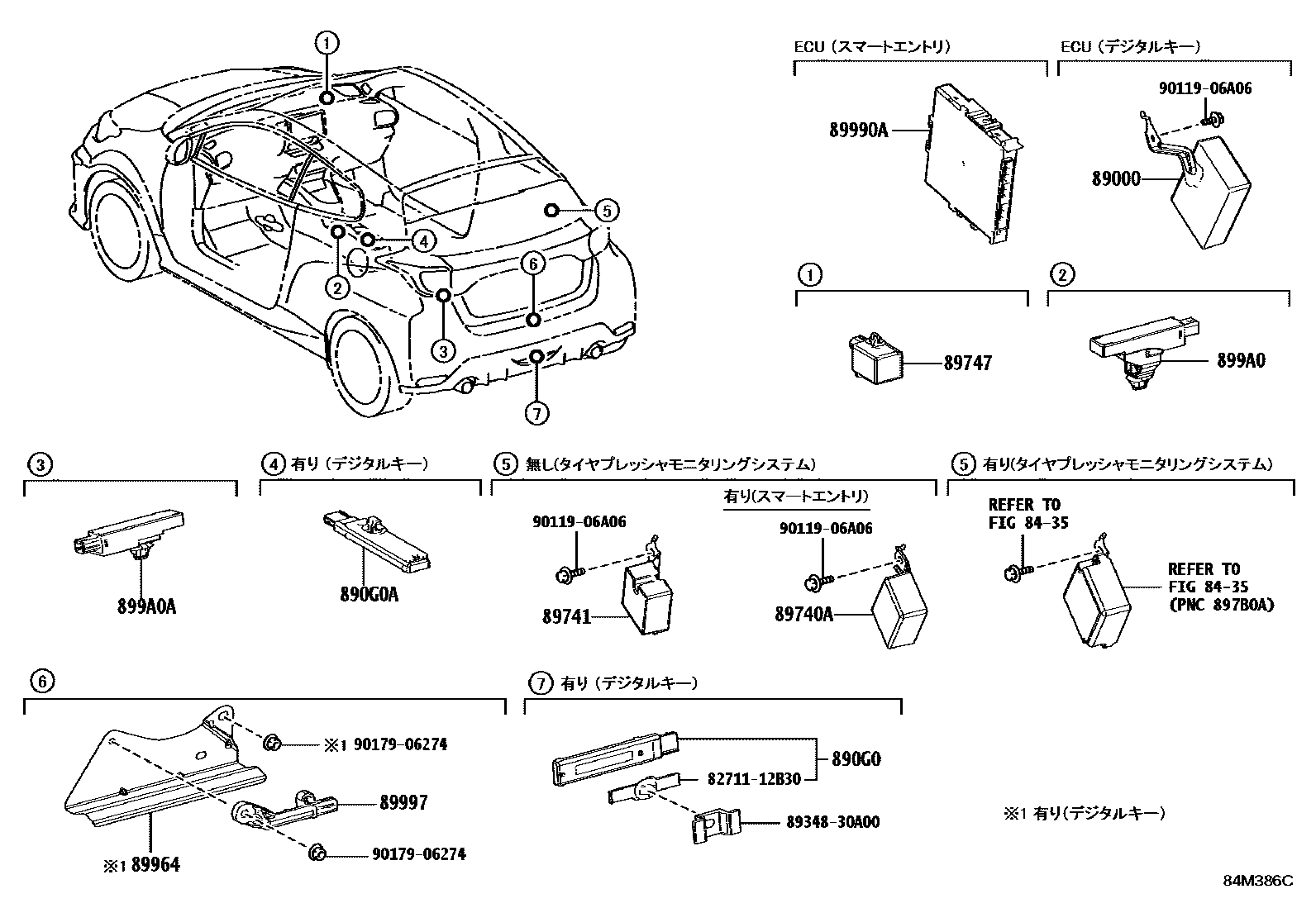

Toyota YARIS GR — WIRELESS DOOR LOCK

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-52170¥21,600

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-76010¥7,100

main890G0-V1010¥7,100

890G0ARECEIVER ASSY, BLE DOOR DIGITAL KEY, NO.2

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-52560iGXPA16..RZ¥12,900202008-202404

main89740-52560iMXPA12¥12,900202008

89741RECEIVER, DOOR CONTROL

main89741-52680iGXPA16..RC¥14,900202008-202404

�f�q�l�m�i�x�[�X�O���[�h�j

main89741-52680iGXPA16..RC¥14,900202008-202404

�f�q�l�m�i�T�[�L�b�g�p�b�P�[�W�j

main89741-52680iGXPA16..RC¥14,900202404

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGXPA16..RZ¥2,900202008-202404

main89747-30040iMXPA12¥2,900202008

main89747-30040iGXPA16..RZ¥2,900202404

89964BRACKET, ELECTRICAL KEY ANTENNA

main89964-52010iGXPA16..RZ¥940202404

89990ACOMPUTER ASSY, SMART KEY

main899H0-52030iGXPA16..RZ¥49,400202008-202404

main899H0-52030iMXPA12¥49,400202008

main899H0-52350iGXPA16..6F..RZ¥44,900202404-202505

main899H0-52360iGXPA16..8FC..RZ¥44,900202404-202505

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGXPA16..RZ¥1,800202008-202404

main89997-30100iMXPA12¥1,800202008

main89997-30100iGXPA16..RZ¥1,800202404

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iGXPA16..RZ¥1,410202404

main899A0-52150iGXPA16..RZ¥1,550202008-202404

main899A0-52150iMXPA12¥1,550202008

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130iGXPA16..RZ¥1,410202008-202404

main899A0-12130iMXPA12¥1,410202008

main899A0-12130iGXPA16..RZ¥1,410202404

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30¥110

8934830A00RETAINER, ULTRASONIC SENSOR, NO.1

main89348-30A00¥130

9011906A06

main90119-06A06¥60

9017906274

main90179-06274¥70

16 parts on this diagram · 1 diagram in section
