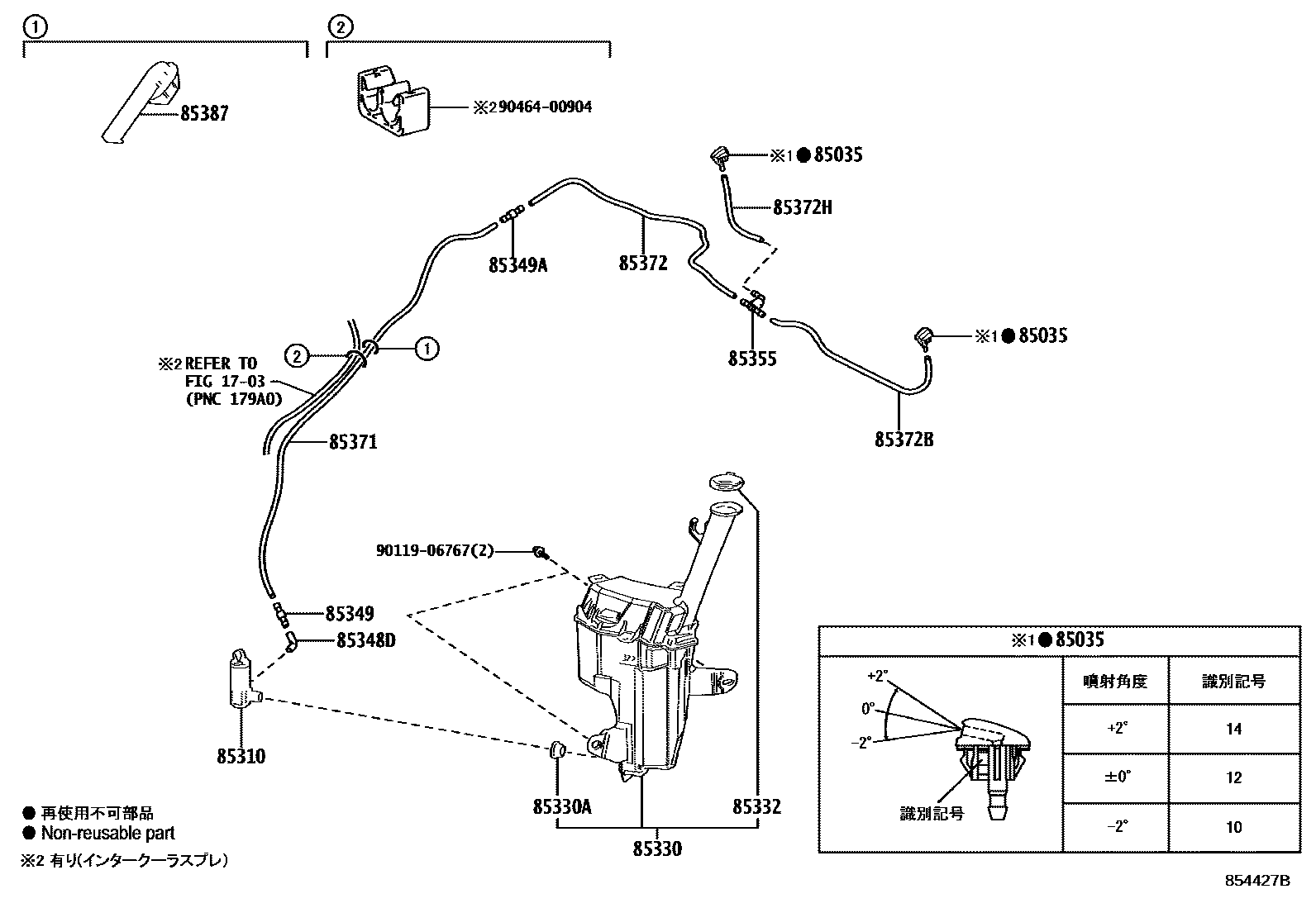

Toyota YARIS GR — WINDSHIELD WASHER

1703

85035NOZZLE SUB-ASSY, WASHER

main85381-52430iGXPA16202008-202404

main85381-52440iGXPA16202008-202404

main85381-52450iMXPA12202008-202404

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47080iGXPA16,MXPA12¥0202008-202012

main85330-47081iGXPA16¥0202101-202404

85330JAR ASSY, WINDSHIELD WASHER

main85315-K0030iGXPA16..RZ¥0202008-202404

main85315-K0040iGXPA16,MXPA12..RC,RS202008-202404

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGXPA16202008-202404

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iGXPA16,MXPA12¥0202008-202404

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iGXPA16,MXPA12202008-202404

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iGXPA16202008-202404

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iGXPA16202008-202404

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iGXPA16¥680202008-202404

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-62228iGXPA16,MXPA12202008-202404

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iGXPA16202008-202404

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iMXPA12202008-202404

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iGXPA16202008-202404

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-10500iMXPA12¥120202303-202404

main82711-10500iGXPA16..RZ¥120202404

main82711-52090iGXPA16..RC¥80202008-202404

9011906767

main90119-06767¥60

9046400904

main90464-00904¥170

17 parts on this diagram · 1 diagram in section
