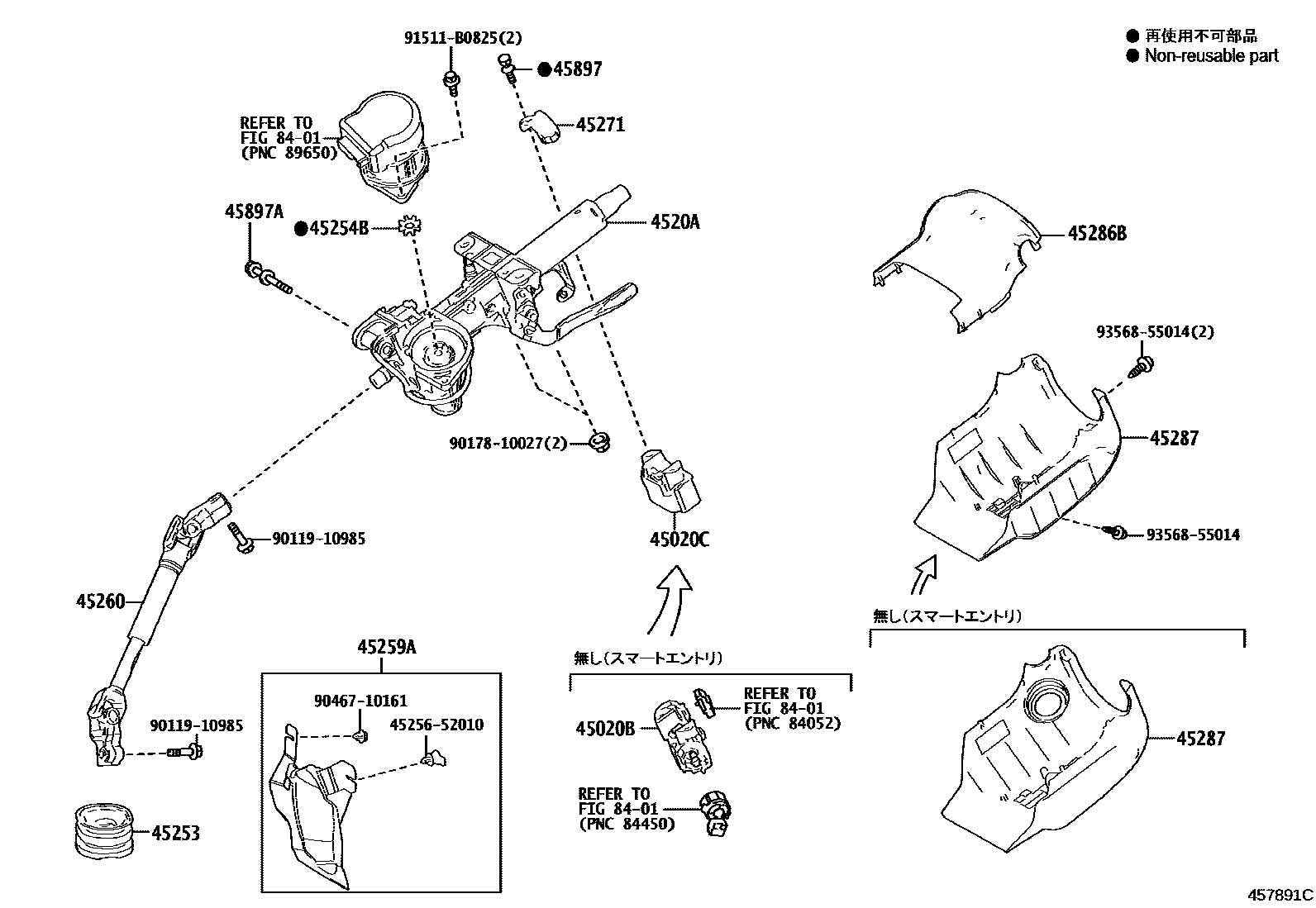

Toyota YARIS GR — STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-26270iGXPA16..RC¥11,300202008-202404

main45280-33180iGXPA16..8FC..RC¥12,000202404

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-K0010iGXPA16..RZ¥13,500202008-202404

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52340iGXPA16..RZ¥53,400202008-202404

main4520A-52350iGXPA16..RC¥53,400202008-202404

main4520A-52600iGXPA16..RZ¥48,400202404

main4520A-52610iGXPA16..RC¥48,400202404

45253COVER, STEERING COLUMN HOLE

main45253-K0010iGXPA16¥840202008-202404

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iGXPA16¥220202008-202404

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-K0010iGXPA16¥1,020202008-202404

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52370iGXPA16¥11,600202404

main45260-K0010iMXPA12¥11,700202008-202404

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMXPA12¥440202008-202404

45286BCOVER, STEERING COLUMN, UPR

main45286-52231-C0iGXPA16..RZ202404

BLACK,TRIM2#,3#

main45286-52241-C0iGXPA16..RC202404

BLACK,TRIM2#

main45286-K0010-C0iMXPA12202008-202404

BLACK,TRIM2#

main45286-K0020-C0iGXPA16..RC202008-202404

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45024-52040-C1iGXPA16..RZ202404

BLACK,TRIM2#,3#

main45024-52130-C0iGXPA16..RC202404

BLACK,TRIM2#

main45024-K0010-C0iGXPA16..RZ202008-202404

BLACK,TRIM2#

main45024-K0020-C0iGXPA16..RC202008-202404

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iGXPA16¥210202008-202404

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iGXPA16¥190202008-202404

main90119-10A34iGXPA16¥190202404

8401

4525652010PROTECTOR, COLUMN TUBE EDGE, NO.1

main45256-52010¥120

9011910985

main90119-10985¥100

9017810027

main90178-10027¥100

9046710161

main90467-10161¥90

91511B0825

main91511-B0825¥140

9356855014

main93568-55014¥70

19 parts on this diagram · 1 diagram in section
