Toyota YARIS GR — SHORT BLOCK ASSEMBLY

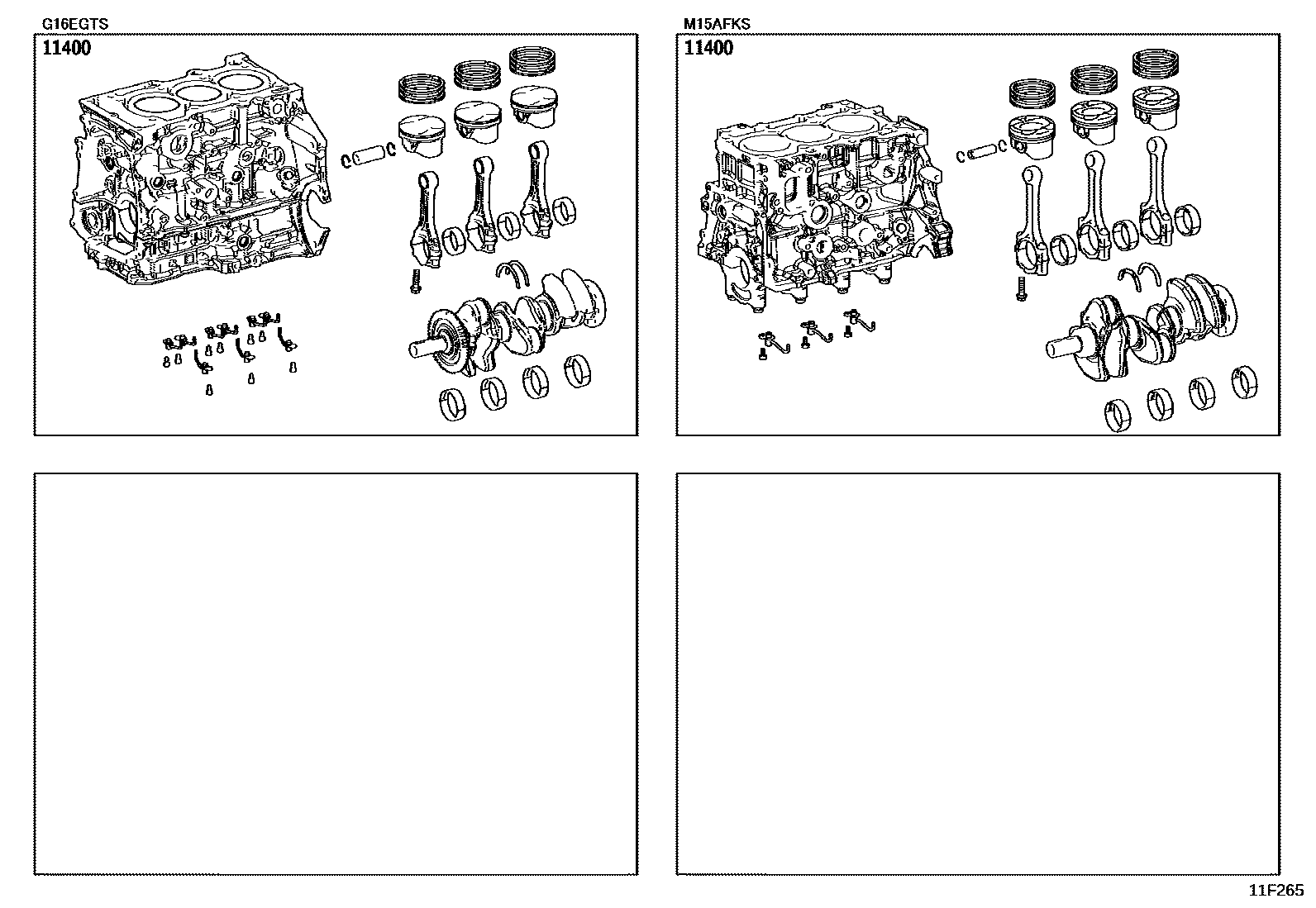

Parts diagram

11400BLOCK ASSY, SHORT

main11400-15090i¥173,000202009

main11400-18050i¥257,000202008-202206

sub11400-18051¥257,000

sub11361-18010¥800

main11400-18051i¥257,000202206-202404

1 parts on this diagram · 1 diagram in section
