Toyota YARIS GR — PARTIAL ENGINE ASSEMBLY

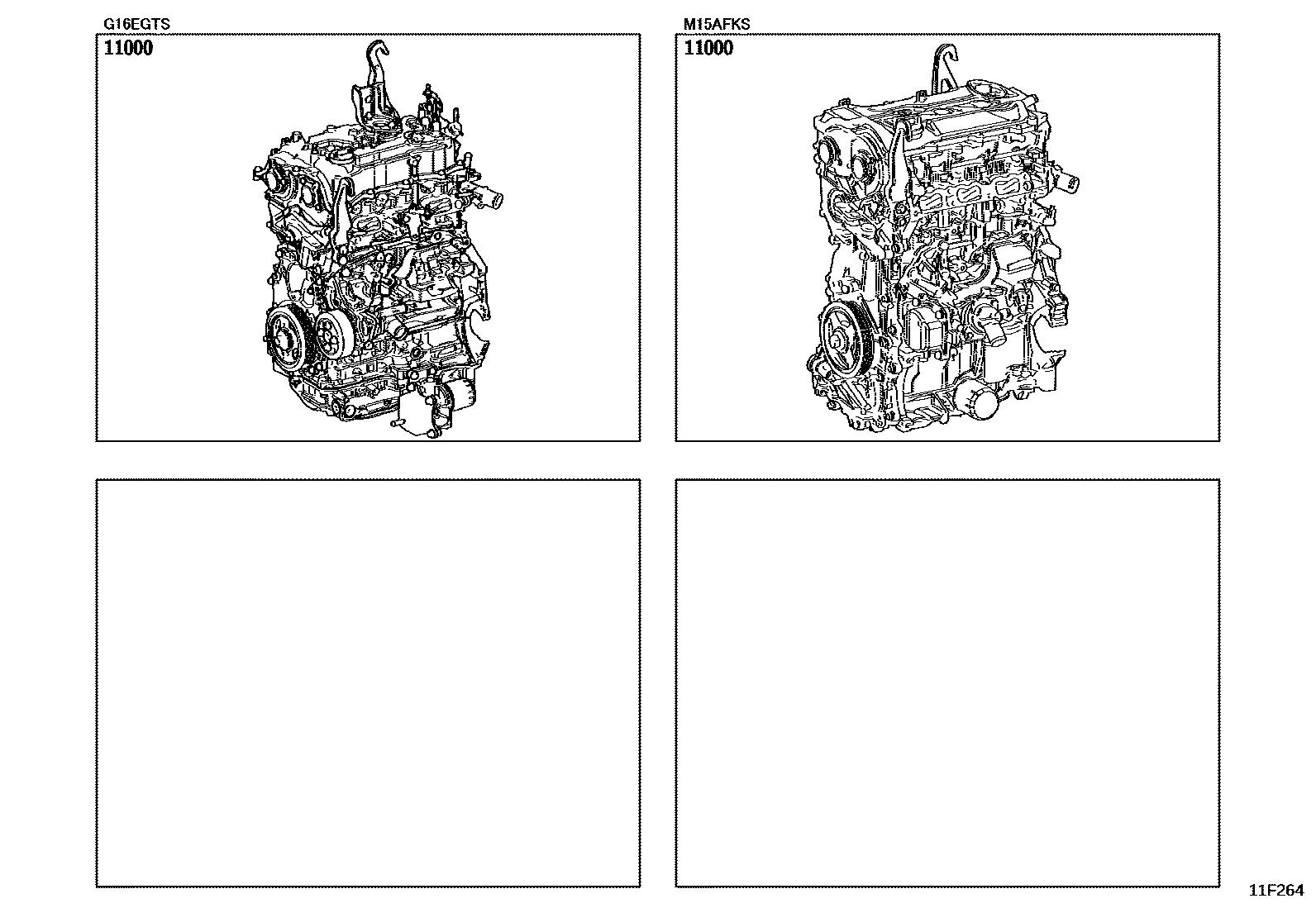

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-15370i¥364,000202009

main19000-18210i¥1,045,000202008-202206

sub19000-18212¥1,045,000

sub11361-18010¥800

main19000-18212i¥1,045,000202206-202404

1 parts on this diagram · 1 diagram in section
