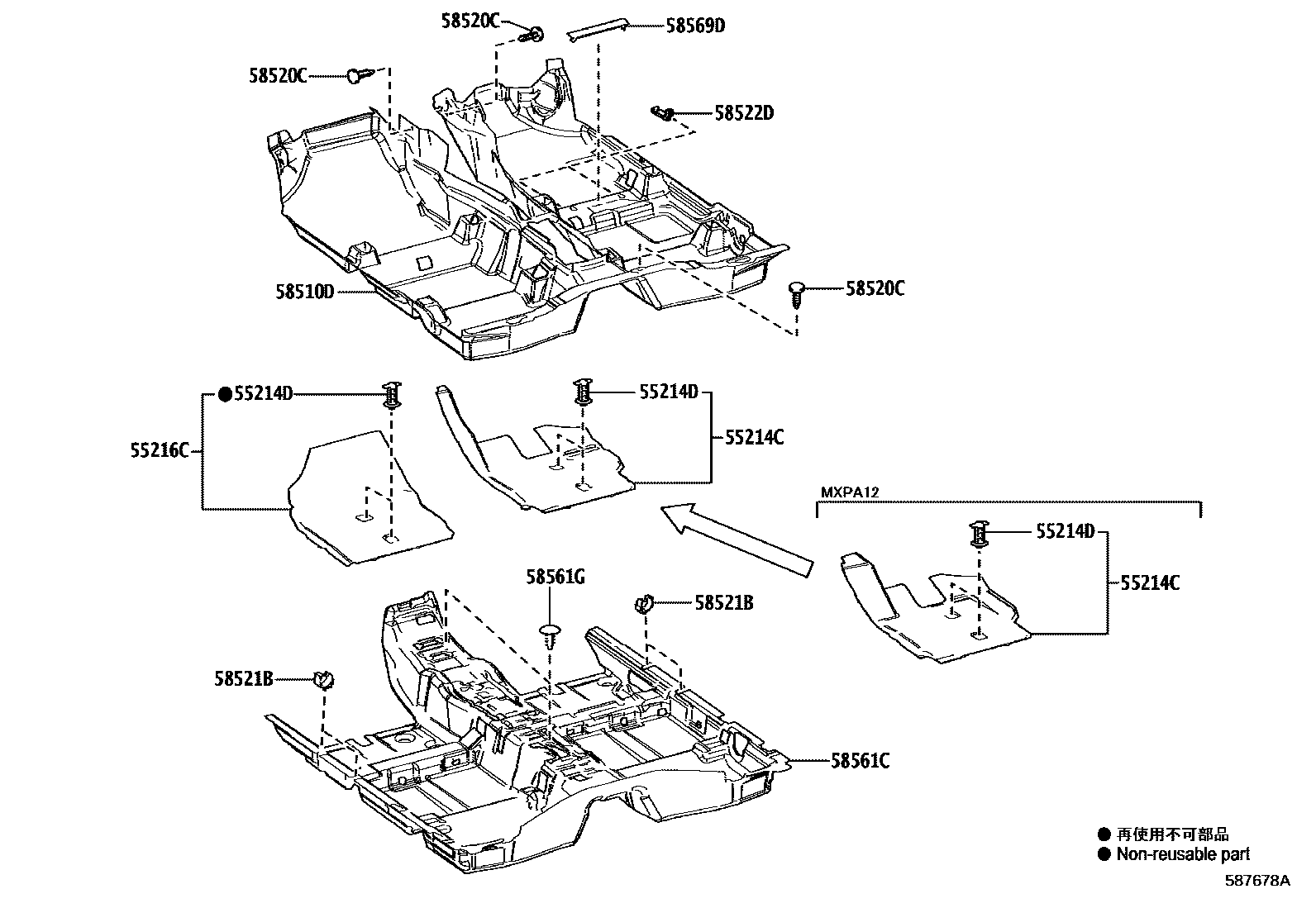

Toyota YARIS GR — MAT & CARPET

0001 1 0002 1������ 0003 1GRMN 0004 1������(GRMN)

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-52210iMXPA12¥3,310202009

main55214-52260iGXPA16¥3,640202008-202404

main55214-52360iGXPA16..6F¥3,310202404-202505

55214DCLIP(FOR DASH PANEL INSULATOR PAD)

main58198-52020iGXPA16,MXPA12¥200202008-202010

main58198-52040iGXPA16¥210202011-202404

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-52100iGXPA16¥3,550202008-202404

58510DCARPET ASSY, FLOOR, FRONT

main58510-52Q00-C0iGXPA16202008-202404

BLACK,TRIM2#

main58510-52Q10-C0iMXPA12202009

BLACK,TRIM2#

main58510-52W20-C1iGXPA16..6F..RZ202404-202505

BLACK,TRIM2#,3#

main58510-52W20-C1iGXPA16..6F..RZ202404-202505

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iGXPA16..RC202404

BLACK,TRIM2#,3#

sub90467-07049¥90

main90467-07049-23iGXPA16202008-202404

BLACK,TRIM2#

sub90467-07049¥90

58521BHOOK, FLOOR CARPET

main58521-33060iGXPA16¥260202008-202404

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030iGXPA16¥380202008-202404

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52420iGXPA16¥7,400202008-202404

main58561-52440iMXPA12¥7,500202009

main58561-52470iGXPA16202404

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-07042-C4iGXPA16202008-202404

BLACK

sub90467-07042¥110

sub90467-06175¥220

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-47020-C1iGXPA16202008-202404

BLACK,TRIM2#

sub58569-47020¥970

main58569-47020-C1iGXPA16..RZ202404

BLACK,TRIM2#,3#

sub58569-47020¥970

10 parts on this diagram · 4 diagrams in section
