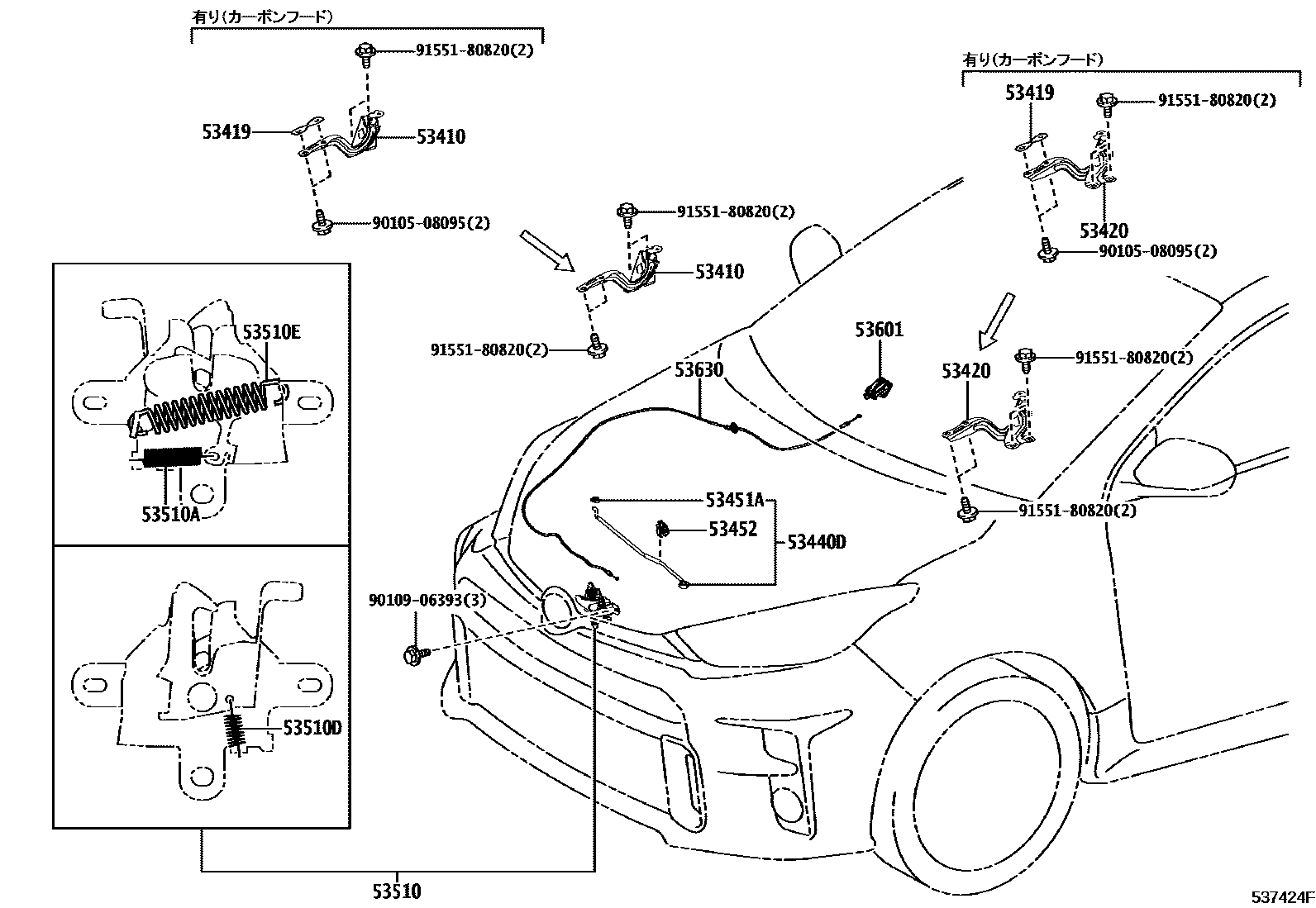

Toyota YARIS GR — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52490iMXPA12¥1,700202008-202404

53419SHIM, HOOD HINGE

main53439-52010¥210

53420HINGE ASSY, HOOD, LH

main53420-52500iGXPA16¥1,700202008-202404

53440DSUPPORT ASSY, HOOD

main53440-K0010iGXPA16¥1,060202008-202404

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iGXPA16¥220202008-202404

53452HOLDER, HOOD STAY

main53452-12130iGXPA16¥340202008-202404

53510LOCK ASSY, HOOD

main53510-52A00iGXPA16¥3,520202008-202404

main53510-52A30iGXPA16..RC¥2,420202009

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iMXPA12¥90202008-202404

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iMXPA12¥90202008-202404

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-14085iMXPA12¥120202008-202404

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iGXPA16..RZ202404

BLACK,TRIM2#,3#

main53601-30100-C0iGXPA16..RZ202008-202404

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52240iGXPA16¥990202008-202404

main53630-K0030iMXPA12¥990202009

9010508095

main90105-08095¥90

9010906393

main90109-06393¥80

9155180820

main91551-80820¥80

15 parts on this diagram · 1 diagram in section
