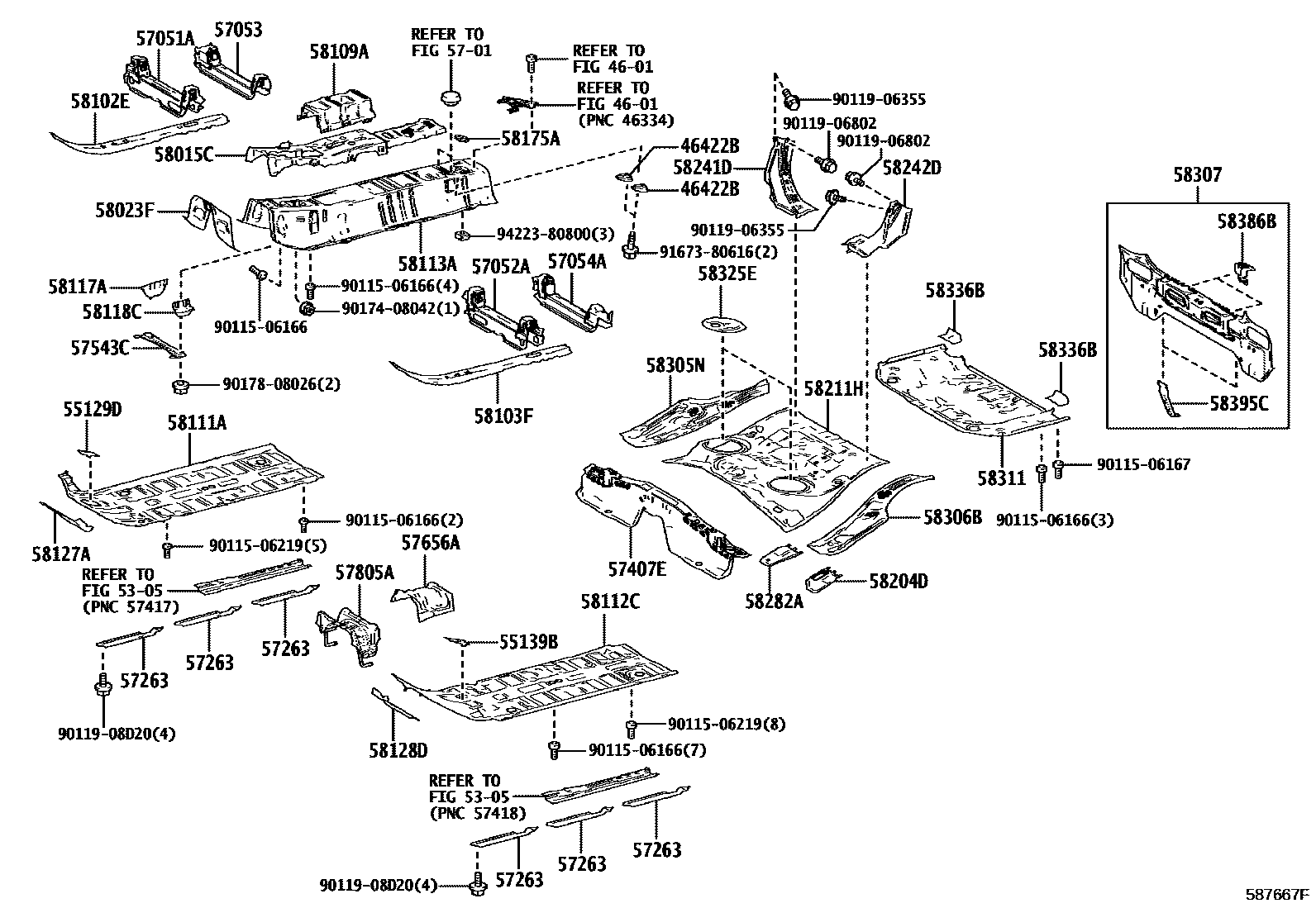

Toyota YARIS GR — FLOOR PAN & LOWER BACK PANEL
4601
46422BCAP, PARKING BRAKE CABLE, CASING
5305
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57263PLATE, ENGINE REAR SUPPORT MEMBER CUSHION
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57543CBRACE, CENTER FLOOR, NO.1
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
58015CPANEL SUB-ASSY, FRONT FLOOR HOUSING
58023FBRACKET SUB-ASSY, FLEXIBLE HOSE
58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58109ARETAINER SUB-ASSY, PARKING BRAKE
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH
58211HPAN, CENTER FLOOR
58241DGUSSET, WHEELHOUSE INNER, FRONT RH
58242DGUSSET, WHEELHOUSE INNER, FRONT LH
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58386BBRACKET, REAR BUMPER COVER, NO.2
58395CRETAINER, TRANSPORT HOOK, RR
9011506166
9011506167
9011506219
9011906355
9011906802
9011908D20
9017408042
9017808026
9167380616
9422380800
51 parts on this diagram · 3 diagrams in section
