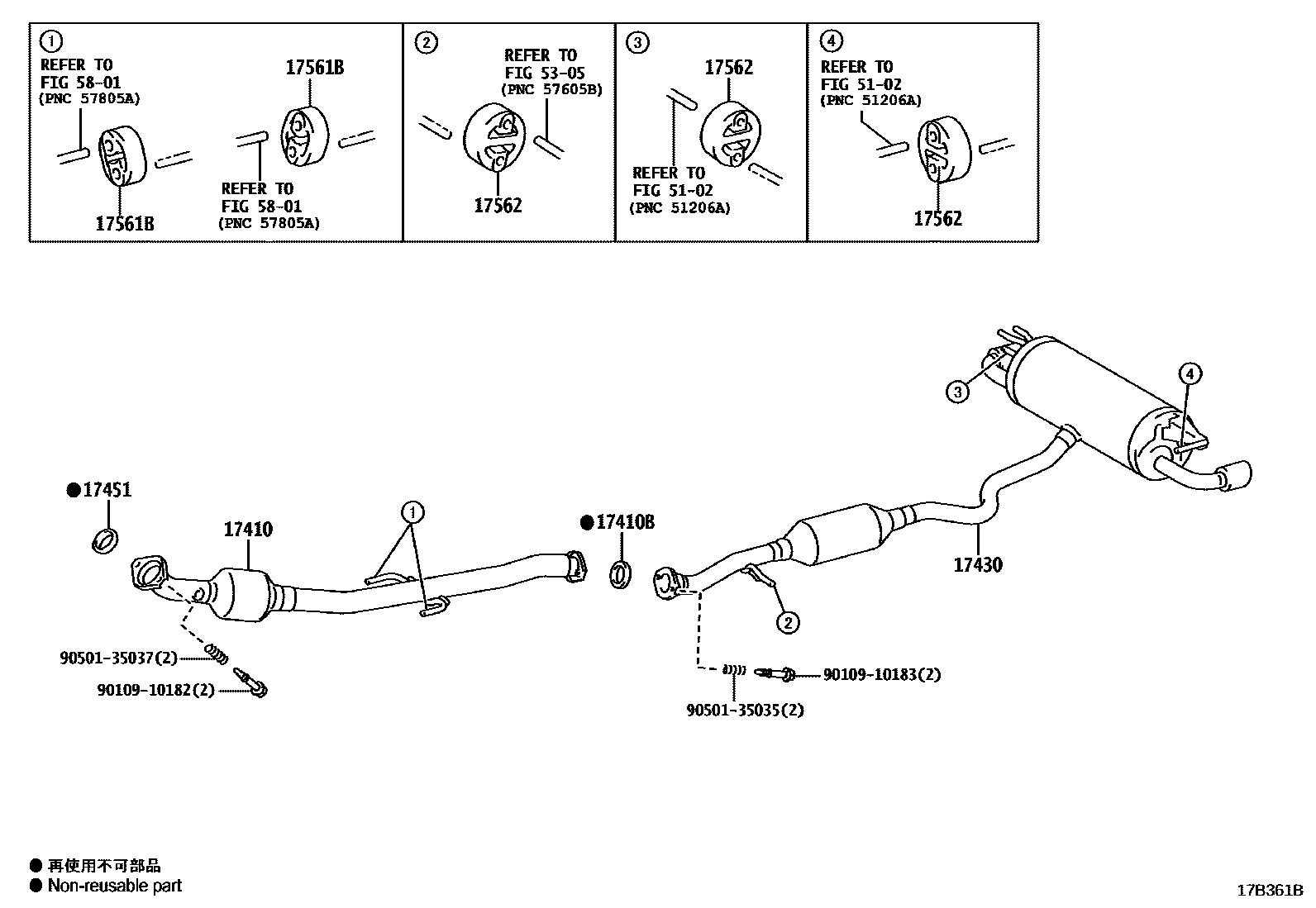

Toyota YARIS GR — EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-15280iM15AFKS..MXPA12¥53,100202009

main17410-18060iG16EGTS..GXPA16¥94,800202008-202404

main17410-18090iG16EGTS..GXPA16¥86,100202404

17410BGASKET, EXHAUST PIPE

main17451-23042iM15AFKS..MXPA12¥790202009-202311

sub17451-23043¥720

main17451-23043iM15AFKS..MXPA12¥720202311-202404

main17451-52050iG16EGTS..GXPA16¥1,450202404

main90917-06070iG16EGTS..GXPA16¥340202008-202404

17430PIPE ASSY, EXHAUST, TAIL

main17430-15700iM15AFKS..MXPA12¥71,000202009

main17430-18040iG16EGTS..GXPA16¥71,000202008-202404

main17430-18070iG16EGTS..GXPA16¥64,500202404-202504

17451GASKET, EXHAUST PIPE

main17451-21070iM15AFKS..MXPA12¥1,360202009-202404

main17451-28040iG16EGTS..GXPA16¥1,510202008-202311

sub17451-28041¥1,510

main17451-28041iG16EGTS..GXPA16¥1,510202311-202404

main17451-52050iG16EGTS..GXPA16¥1,450202404

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-47010iG16EGTS..GXPA16¥320202008-202404

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-28010iG16EGTS..GXPA16¥670202008-202404

5102

5305

5801

9010910182

main90109-10182¥190

9010910183

main90109-10183¥190

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

13 parts on this diagram · 3 diagrams in section
