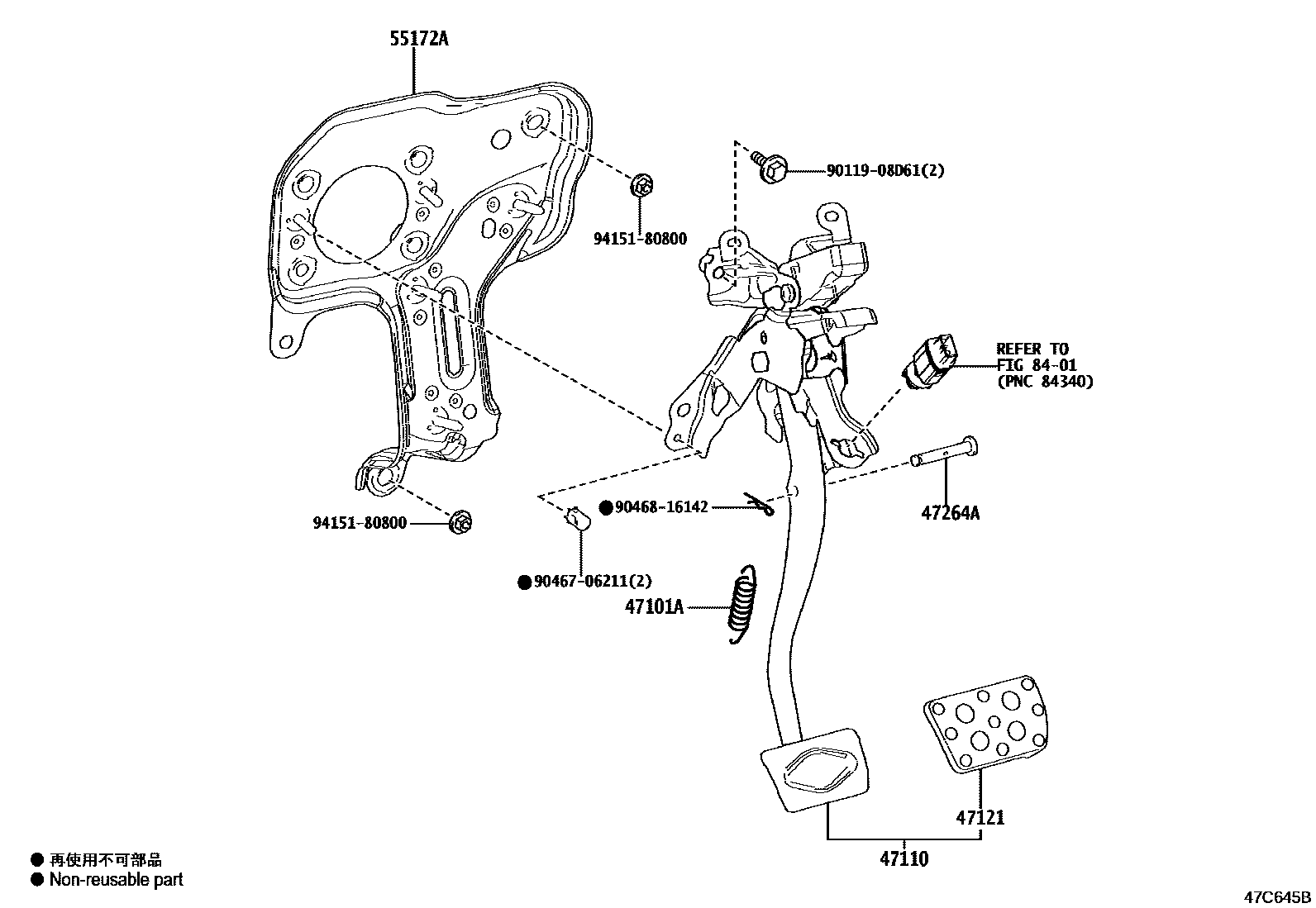

Toyota YARIS GR — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-17003iMXPA12¥180202008-202404

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52500iGXPA16..6F..RZ¥8,100202008-202404

main47110-52520iGXPA16..8FC..RZ¥8,100202009

main47110-K0070iGXPA16..8FC..RC¥6,800202404

main47110-K0080iGXPA16..6F..RC¥6,800202008-202404

47121PAD, BRAKE PEDAL

main47121-10040iGXPA16..6F..RZ¥3,030202008-202404

main47121-12040iGXPA16..RC¥300202008-202404

main47121-47010iGXPA16..8FC..RC¥400202404

main47121-78010iMXPA12¥3,030202009

47264APIN(FOR PUSH ROD)

main90249-08051iMXPA12¥170202008-202404

55172ABASE, BRAKE PEDAL SUPPORT

main55172-K0010iGXPA16¥2,540202008-202404

8401

9011908D61

main90119-08D61¥100

9046706211

main90467-06211¥80

9046816142

main90468-16142¥70

9415180800

main94151-80800¥80

10 parts on this diagram · 2 diagrams in section
