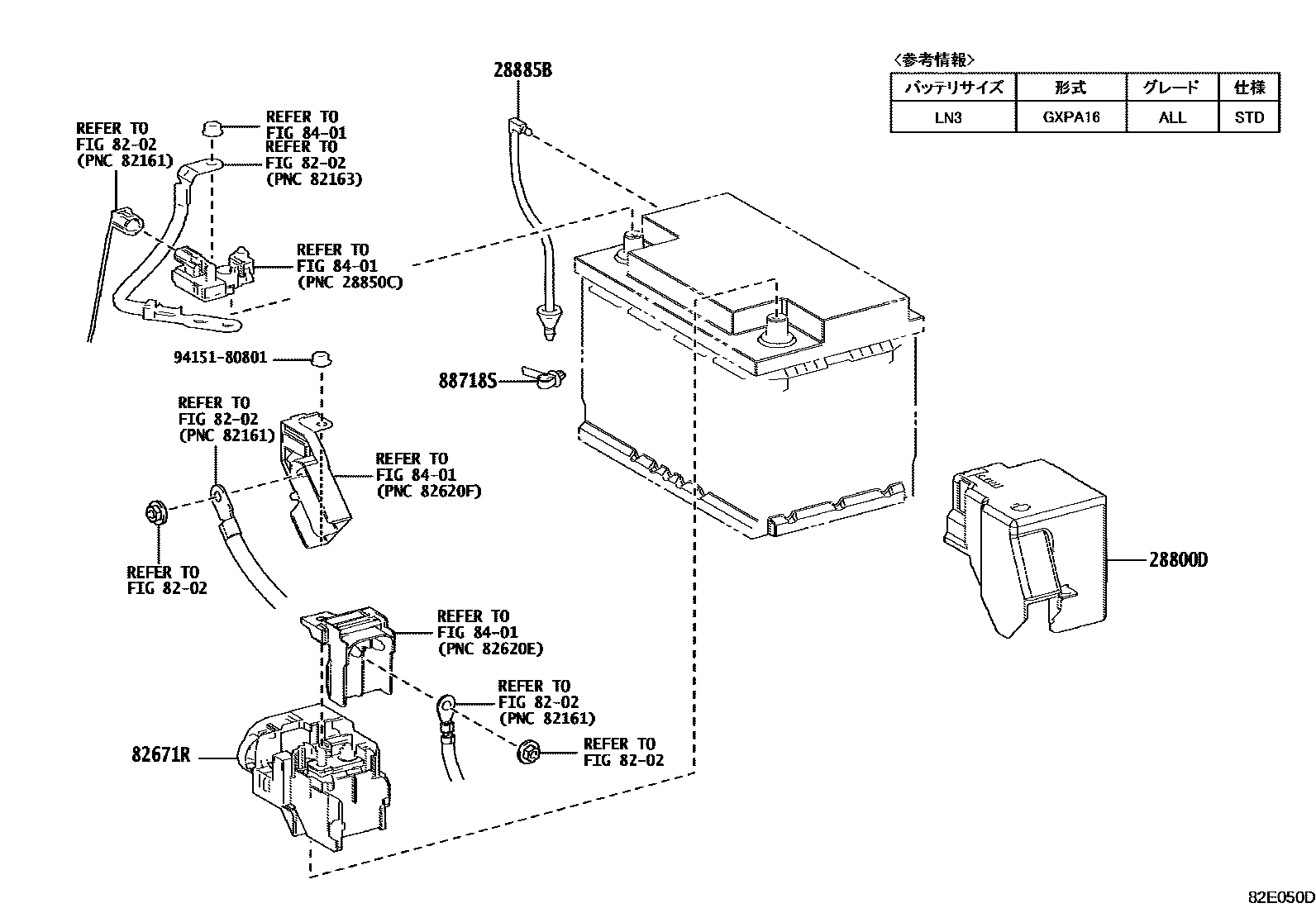

Toyota YARIS GR — BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-52170iM15AFKS..MXPA12¥650202009

main82821-50730iG16EGTS..GXPA16¥1,260202008-202404

28885BHOSE, BATTERY

main28885-18010iG16EGTS..GXPA16¥1,090202008-202404

main28885-18040iG16EGTS..GXPA16¥1,800202404

8202

82671RSTOPPER, BATTERY TERMINAL

main82651-50010iGXPA16¥2,000202008-202404

main82670-K0010iMXPA12¥1,620202009

8401

88718SCLAMP, PIPING NO.1

main82711-52200iGXPA16¥340202404

9415180801

main94151-80801¥80

7 parts on this diagram · 3 diagrams in section
