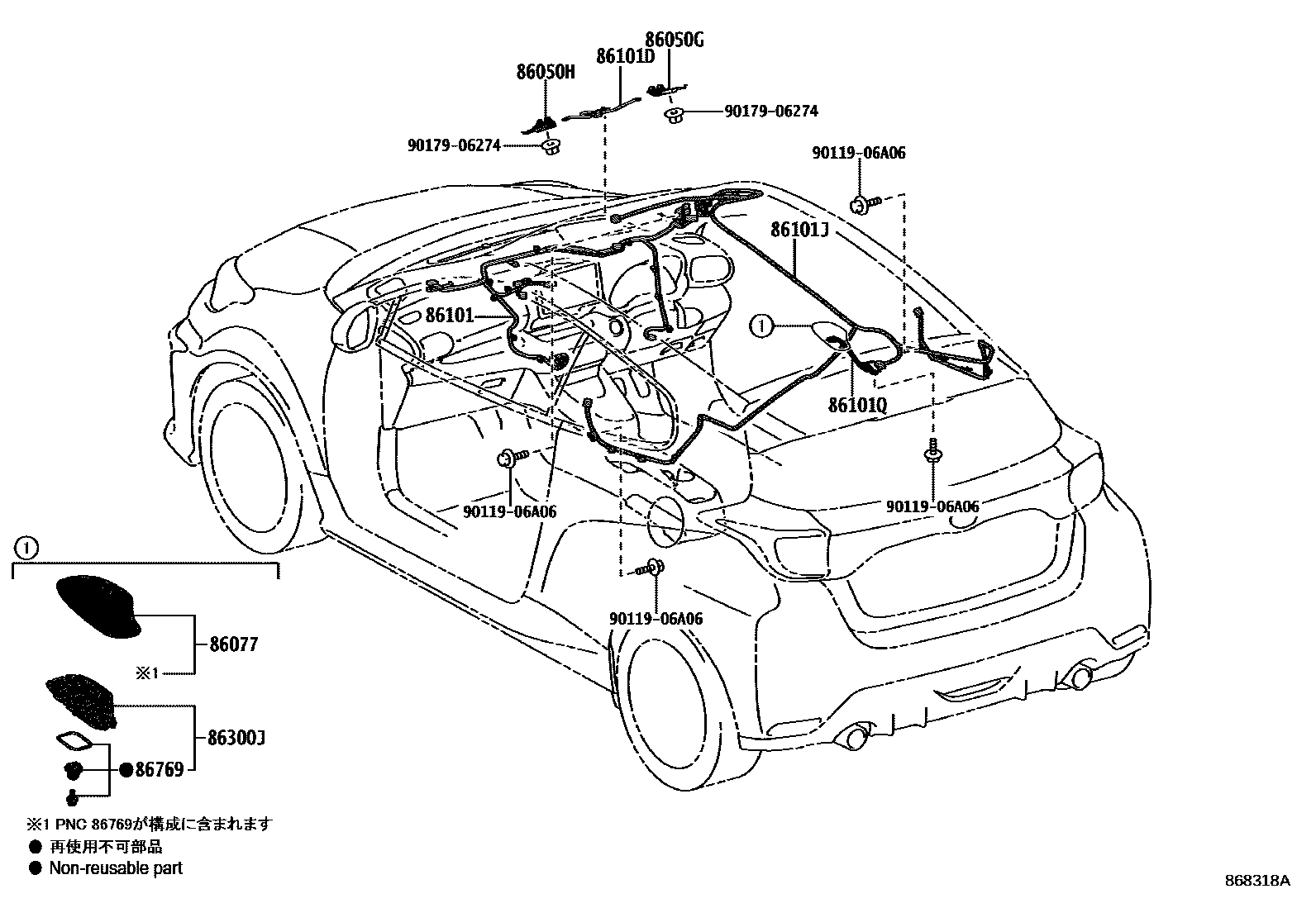

Toyota YARIS GR — ANTENNA

86050GANTENNA ASSY, TELEVISION, NO.1 RH

main86050-53180iGXPA16..RZ¥6,400202008-202404

86050HANTENNA ASSY, TELEVISION, NO.1 LH

main86050-53190iGXPA16..RZ¥6,400202008-202404

86077COVER KIT, ANTENNA

main86077-33040-C2iGXPA16202008-202404

main86077-33040-C2iGXPA16..RC202008-202404

BLACK,040 ,062 ,089 ,219 ,3U5

main86077-33040-C2iGXPA16..RC202008-202404

main86077-33040-C2iMXPA12202009

BLACK,040 ,089 ,219 ,3U5

main86077-33040-C7iGXPA16..8FC..RZ202404

BLACK,040 ,089 ,1L5 ,219 ,3U5

main86077-33040-C7iGXPA16..8FC..RZ202404

BLACK,040 ,089 ,1L5 ,219 ,3U5 ,6X9

main86077-33040-C7iGXPA16..6F..RZ202404

BLACK,040 ,089 ,1L5 ,1M8 ,219 ,228 ,3U5 ,6X9 ,9BF

86101CORD SUB-ASSY, ANTENNA

main86101-52E60iGXPA16..RZ¥7,100202404

main86101-52F70iGXPA16..RC¥3,960202008-202404

main86101-52F70iGXPA16..RC¥3,960202008-202404

main86101-52P60iGXPA16..RC¥4,980202404

main86101-K0820iGXPA16,MXPA12..(CVT,MTM)..(RS,RZ)¥8,700202008

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-52E20iGXPA16..RZ¥2,190202008-202404

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52E30iGXPA16,MXPA12..(CVT,MTM)..(RS,RZ)¥8,100202008

main86101-52F80iGXPA16..RC¥3,440202008-202404

main86101-52F80iGXPA16..RC¥3,440202008-202404

main86101-52T30iGXPA16..RC¥4,050202404

main86101-52T40iGXPA16..RZ¥7,100202404

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-52F40iGXPA16,MXPA12..(CVT,MTM)..(RS,RZ)¥2,920202008

main86101-52F90iGXPA16..RC¥2,410202008-202404

main86101-52F90iGXPA16..RC¥2,410202008-202404

main86101-52T50iGXPA16¥2,190202404

86300JANTENNA ASSY, ROOF

main86760-K0010iGXPA16,MXPA12..CVT,MTM¥11,700202008

86769HOUSING, ROOF ANTENNA

main86769-K0010iGXPA16,MXPA12..CVT,MTM¥500202008

9011906A06

main90119-06A06¥60

9017906274

main90179-06274¥70

11 parts on this diagram · 1 diagram in section
