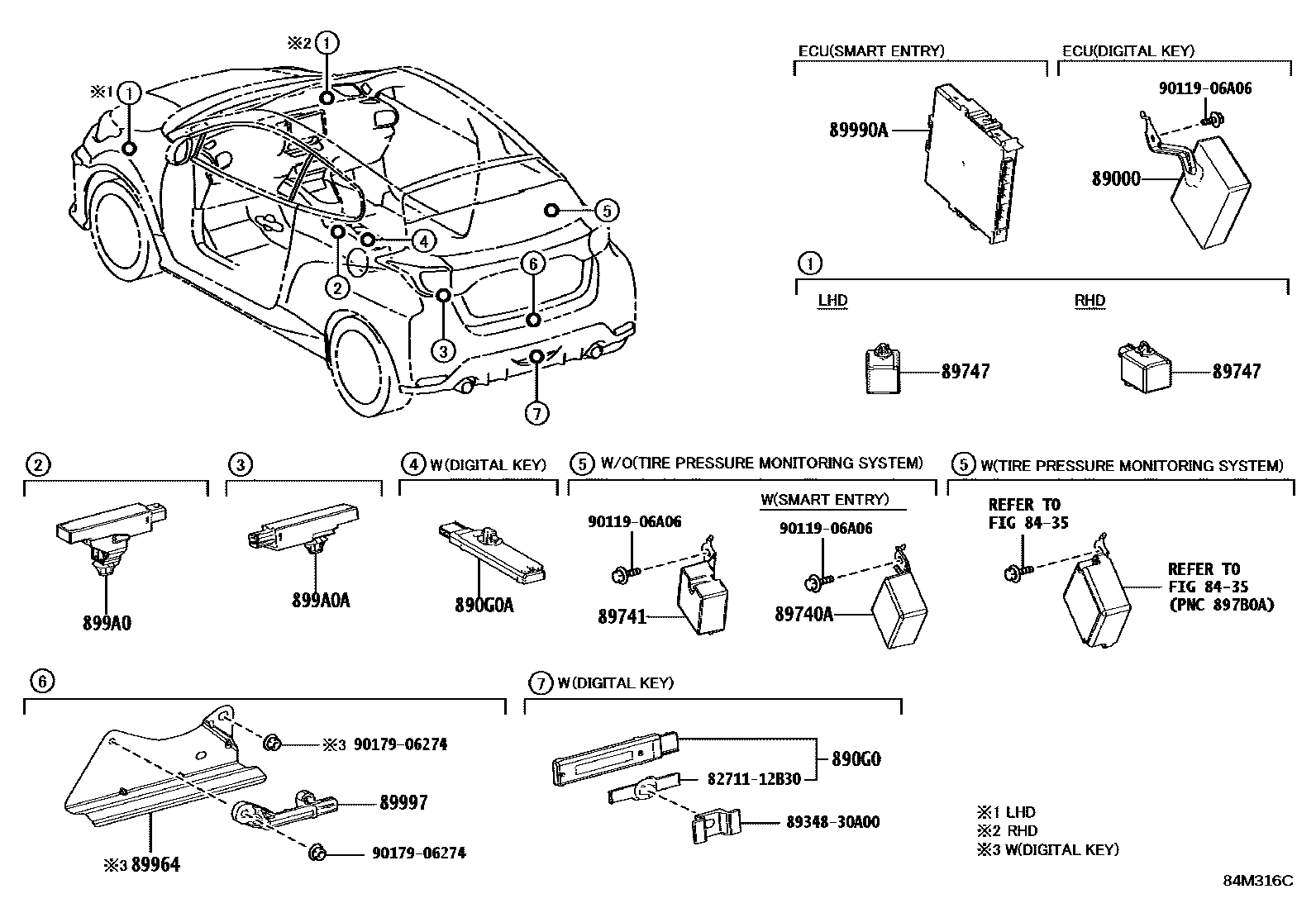

Toyota YARIS GR — WIRELESS DOOR LOCK

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-52040

main89000-52170¥21,600

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-V1010¥7,100

main890G0-76010¥7,100

main890G0-76020

main890G0-42020¥7,100

890G0ARECEIVER ASSY, BLE DOOR DIGITAL KEY, NO.2

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-52550iGXPA16..ARL202112-202404

89741RECEIVER, DOOR CONTROL

main89741-52690iGXPA16..ARL202008-202112

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGXPA16..EUR¥2,900202008-202404

main89747-30040iGXPA16..ARL¥2,900202112-202404

main89747-30040iGXPA16¥2,900202404

89964BRACKET, ELECTRICAL KEY ANTENNA

main89964-52010iGXPA16¥940202404

89990ACOMPUTER ASSY, SMART KEY

main899H0-52030iGXPA16..ARL¥49,400202112-202404

main899H0-52040iGXPA16..EUR202008-202207

sub899H0-52041

main899H0-52041iGXPA16..EUR202208-202302

main899H0-52042iGXPA16..EUR202303-202404

main899H0-52350iGXPA16..6F..ARL¥44,900202410-202505

main899H0-52360iGXPA16..CHI,EUR;GXPA16..8FC..ARL¥44,900202404-202505

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGXPA16..EUR¥1,800202008-202404

main89997-30100iGXPA16¥1,800202404

main89997-30100iGXPA16..ARL¥1,800202112-202404

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iGXPA16¥1,410202404

main899A0-52150iGXPA16..ARL¥1,550202112-202404

main899A0-52150iGXPA16..EUR¥1,550202008-202404

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130iGXPA16..EUR¥1,410202008-202404

main899A0-12130iGXPA16..ARL¥1,410202112-202404

main899A0-12130iGXPA16¥1,410202404

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30¥110

8934830A00RETAINER, ULTRASONIC SENSOR, NO.1

main89348-30A00¥130

9011906A06

main90119-06A06¥60

9017906274

main90179-06274¥70

16 parts on this diagram · 1 diagram in section
