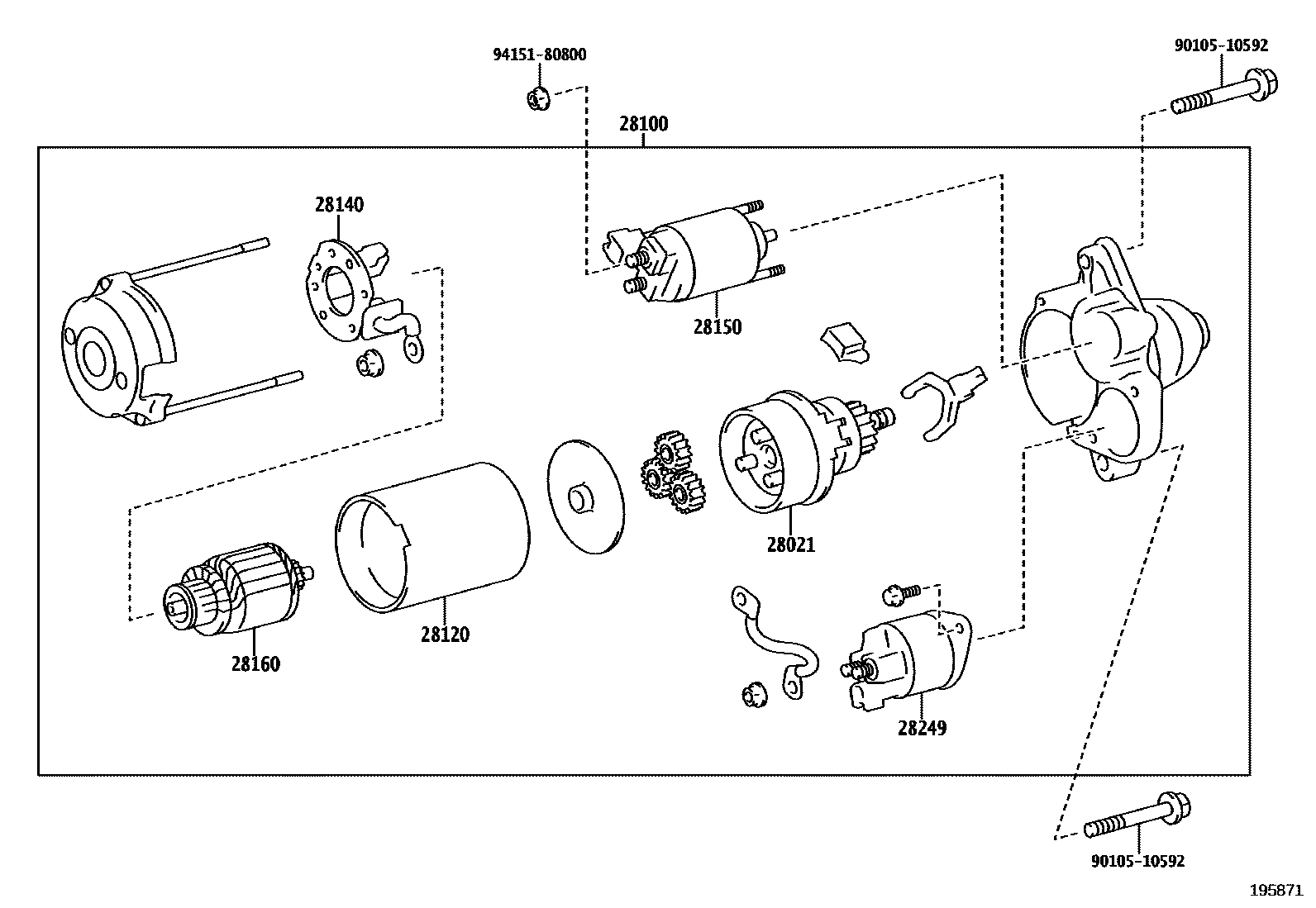

Toyota YARIS GR — STARTER

0001 112V 1.7KW 0002 112V 2.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-25070iG16EGTS..GXPA16¥9,900202404

main28021-25070iG16EGTS..GXPA16¥9,900202008-202404

28100STARTER ASSY

main28100-18020iG16EGTS..GXPA16..CHI¥65,700202412

12V 1.7KW

main28100-18020iG16EGTS..GXPA16¥65,700202008-202404

12V 1.7KW

main28100-18030iG16EGTS..GXPA16..ARL,EUR¥76,600202404

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-18030iG16EGTS..GXPA16..ARL,EUR202404

main28120-37100iG16EGTS..GXPA16202008-202404

main28120-37100iG16EGTS..GXPA16..CHI202412

28140HOLDER ASSY, STARTER BRUSH

main28140-21100iG16EGTS..GXPA16202008-202404

main28140-21100iG16EGTS..GXPA16..CHI202412

main28140-38070iG16EGTS..GXPA16..ARL,EUR202404

28150SWITCH ASSY, MAGNET STARTER

main28150-47260iG16EGTS..GXPA16¥10,900202008-202404

main28150-47260iG16EGTS..GXPA16¥10,900202404

28160ARMATURE ASSY, STARTER

main28160-36110iG16EGTS..GXPA16¥13,100202008-202404

main28160-36110iG16EGTS..GXPA16¥13,100202404

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-47280iG16EGTS..GXPA16¥7,500202008-202404

main28249-47280iG16EGTS..GXPA16..CHI¥7,500202412

9010510592

main90105-10592¥160

9415180800

main94151-80800¥80

9 parts on this diagram · 2 diagrams in section
