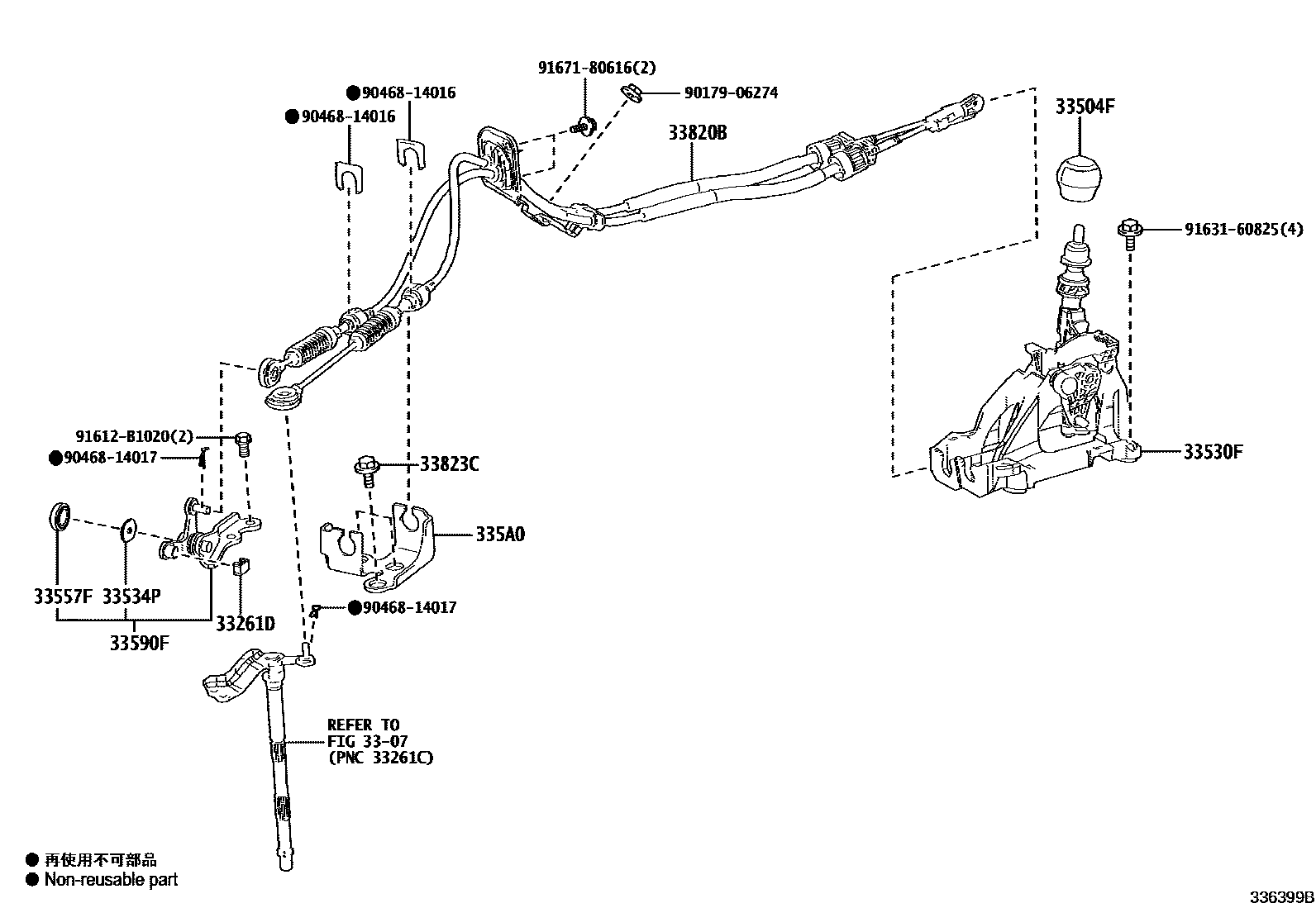

Toyota YARIS GR — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

3307

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iGXPA16¥450202008-202404

main33557-33010iGXPA16..6F..(ARL,EUR)¥450202404

main33557-33010iGXPA16..CHI¥450202412

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12760-C0iGXPA16..ARL202008-202112

BLACK,TRIM2#

main33504-52580-C0iGXPA16..EUR202008-202404

BLACK,TRIM2#

main33504-52580-C0iGXPA16..ARL202112-202404

BLACK,TRIM2#

main33504-52660-C0iGXPA16..6F..(ARL,EUR)202404

BLACK,TRIM2#,3#

main33504-52660-C0iGXPA16..CHI202412

BLACK,TRIM2#,3#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-52340iGXPA16¥8,600202008-202012

sub33530-52341¥6,400

main33530-52341iGXPA16¥6,400202101-202404

main33530-52341iGXPA16..6F..(ARL,EUR)¥6,400202404

main33530-52341iGXPA16..CHI¥6,400202412

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-08028iGXPA16¥100202008-202404

main90201-08028iGXPA16..6F..(ARL,EUR)¥100202404

main90201-08028iGXPA16..CHI¥100202412

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iGXPA16¥370202008-202404

main33557-20010iGXPA16..6F..(ARL,EUR)¥370202404

main33557-20010iGXPA16..CHI¥370202412

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-20040iGXPA16¥2,130202008-202404

main33590-20040iGXPA16..6F..(ARL,EUR)¥2,130202404

main33590-20040iGXPA16..CHI¥2,130202412

335A0BRACKET ASSY, CONTROL CABLE

main335A0-52060iGXPA16¥1,570202008-202404

main335A0-52060iGXPA16..6F..(ARL,EUR)¥1,570202404

main335A0-52060iGXPA16..CHI¥1,570202412

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-52A70iGXPA16..8FC¥8,000202404

main33820-52A80iGXPA16..CHI¥17,000202412

main33820-52A80iGXPA16¥17,000202008-202404

main33820-52A80iGXPA16..6F..(ARL,EUR)¥17,000202404

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-52160iGXPA16..8FC¥940202404

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60iGXPA16¥100202008-202404

main90119-08C60iGXPA16..6F..(ARL,EUR)¥100202404

main90119-08C60iGXPA16..CHI¥100202412

main91671-80820iGXPA16..8FC¥80202404

9017906274

main90179-06274¥70

9046814016

main90468-14016¥160

9046814017

main90468-14017¥90

91612B1020

main91612-B1020¥130

9163160825

main91631-60825¥80

9167180616

main91671-80616¥60

17 parts on this diagram · 3 diagrams in section
